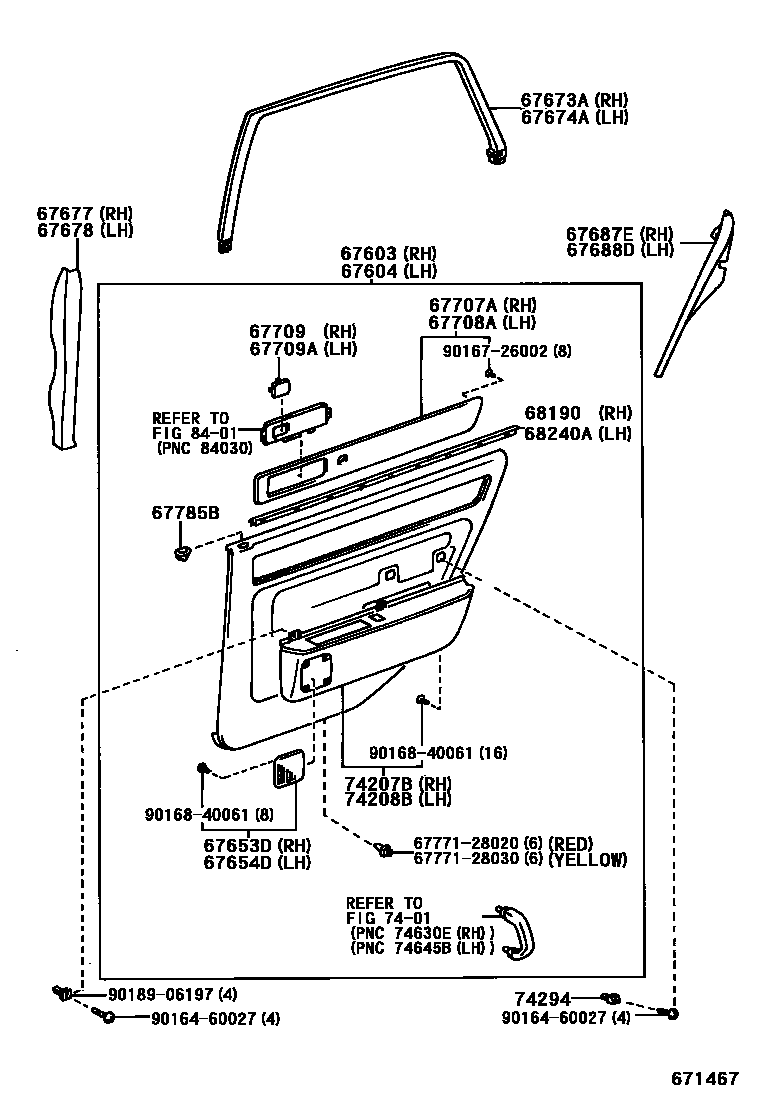

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-40430-B0iGZG50199810-201701

MD.GRAY,TRIM1#

main67630-40430-E0iGZG50199810-201701

ORCHID,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-40510-B0iGZG50199810-201701

MD.GRAY,TRIM1#

main67640-40510-E0iGZG50199810-201701

ORCHID,TRIM4#

67653DGRILLE SUB-ASSY, REAR DOOR SPEAKER, RH

main67651-40030-B1iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67651-40030-E0iGZG50199810-201701

ORCHID,TRIM4#

67654DGRILLE SUB-ASSY, REAR DOOR SPEAKER, LH

main67651-40030-B1iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67651-40030-E0iGZG50199810-201701

ORCHID,TRIM4#

67673AGARNISH, REAR DOOR FRAME, RH

main67673-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67673-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67674AGARNISH, REAR DOOR FRAME, LH

main67674-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67674-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67677COVER, SIDE TRIM BOARD, REAR RH

main67677-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67677-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67678COVER, SIDE TRIM BOARD, REAR LH

main67678-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67678-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67687ECOVER, SIDE TRIM BOARD, REAR RH

main67687-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67687-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67688DCOVER, SIDE TRIM BOARD, REAR LH

main67688-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67688-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67707AORNAMENT SUB-ASSY, REAR DOOR TRIM, RH

main67707-40050iGZG50199810

67708AORNAMENT SUB-ASSY, REAR DOOR TRIM, LH

main67708-40050iGZG50199810

67709GRILLE SUB-ASSY, DOOR SPEAKER, RH

main67609-40020-C0iGZG50199810-201701

BLACK,TRIM1#,4#

67709AGRILLE SUB-ASSY, DOOR SPEAKER, LH

main67609-40020-C0iGZG50199810-201701

BLACK,TRIM1#,4#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-40020iGZG50199810-201701

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-40020iGZG50199810-201701

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-40010iGZG50199810-201701

7401

74207BPANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH

main74207-40060-B0iGZG50199810-201701

GRAY,TRIM1#

main74207-40060-E0iGZG50199810-201701

ORCHID,TRIM4#

74208BPANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH

main74208-40060-B0iGZG50199810-201701

GRAY,TRIM1#

main74208-40060-E0iGZG50199810-201701

ORCHID,TRIM4#

74294PLATE, REAR DOOR ARMREST, NO.2

main74294-32010iGZG50199810

8401

6777128020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28020

6777128030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28030

9016460027

main90164-60027

9016726002

main90167-26002

9016840061

main90168-40061

9018906197

main90189-06197

28 parts on this diagram · 3 diagrams in section
