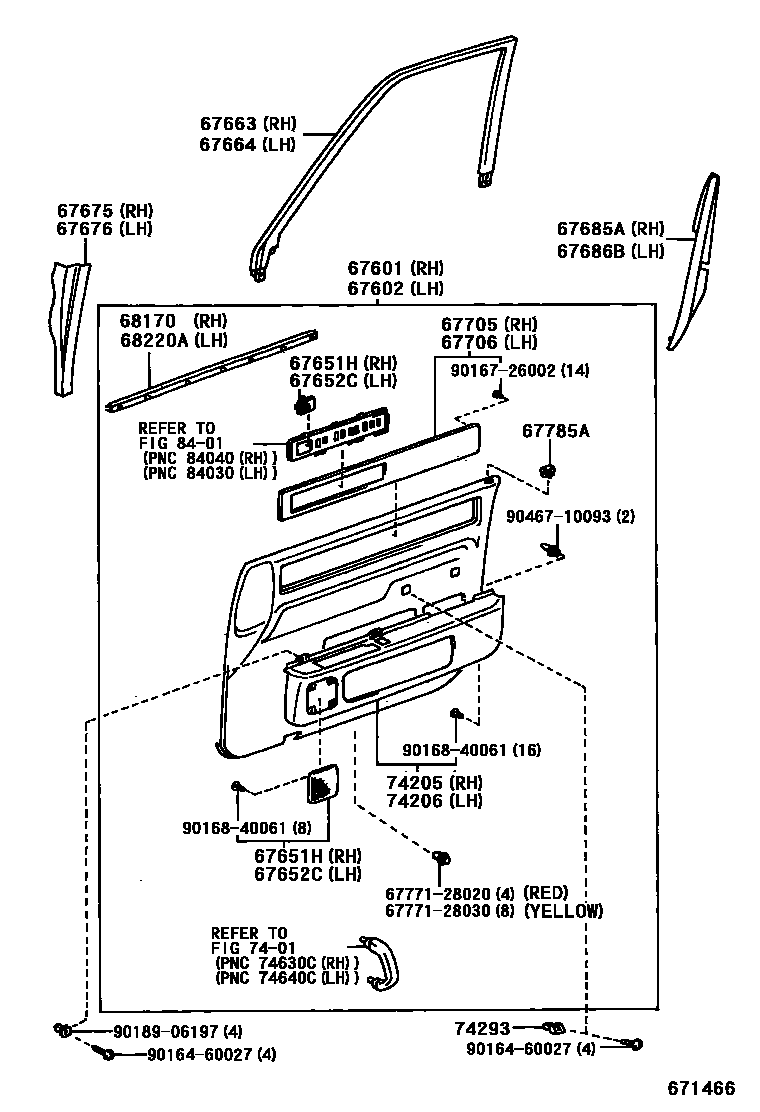

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-40350-B0iGZG50..LHD199810-201701

MD.GRAY,TRIM1#

main67610-40350-E0iGZG50..LHD199810-201701

ORCHID,TRIM4#

main67610-40360-B0iGZG50..RHD199810-201701

MD.GRAY,TRIM1#

main67610-40360-E0iGZG50..RHD199810-201701

ORCHID,TRIM4#

main67610-40370-B0iGZG50..RHD199810-201701

HONG KONG SPEC,MD.GRAY,TRIM1#

main67610-40370-E0iGZG50..RHD199810-201701

HONG KONG SPEC,ORCHID,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-40280-B0iGZG50..LHD199810-201701

MD.GRAY,TRIM1#

main67620-40280-E0iGZG50..LHD199810-201701

ORCHID,TRIM4#

main67620-40290-B0iGZG50..RHD199810-201701

MD.GRAY,TRIM1#

main67620-40290-E0iGZG50..RHD199810-201701

ORCHID,TRIM4#

main67620-40300-B0iGZG50..RHD199810-201701

HONG KONG SPEC,MD.GRAY,TRIM1#

main67620-40300-E0iGZG50..RHD199810-201701

HONG KONG SPEC,ORCHID,TRIM4#

67651HGRILLE, SPEAKER DOOR, RH

main67609-40020-C0iGZG50199810-201701

BLACK,TRIM1#,4#,UPPER

main67651-40030-B1iGZG50199810-201701

MEDIUM GRAY,TRIM1#,LOWER

main67651-40030-E0iGZG50199810-201701

ORCHID,TRIM4#,LOWER

67652CGRILLE, SPEAKER DOOR, LH

main67609-40020-C0iGZG50199810-201701

BLACK,TRIM1#,4#,UPPER

main67651-40030-B1iGZG50199810-201701

MEDIUM GRAY,TRIM1#,LOWER

main67651-40030-E0iGZG50199810-201701

ORCHID,TRIM4#,LOWER

67663GARNISH, DOOR FRAME, UPPER RH

main67663-40010-B3iGZG50..RHD199810-201701

MEDIUM GRAY,TRIM1#

main67663-40010-E1iGZG50..RHD199810-201701

ORCHID,TRIM4#

main67663-40020-B3iGZG50199810-201701

W(DOOR MIRROR),MEDIUM GRAY,TRIM1#

main67663-40020-E1iGZG50199810-201701

W(DOOR MIRROR),ORCHID,TRIM4#

67664GARNISH, DOOR FRAME, UPPER LH

main67664-40010-B3iGZG50..RHD199810-201701

MEDIUM GRAY,TRIM1#

main67664-40010-E1iGZG50..RHD199810-201701

ORCHID,TRIM4#

main67664-40020-B3iGZG50199810-201701

W(DOOR MIRROR),MEDIUM GRAY,TRIM1#

main67664-40020-E1iGZG50199810-201701

W(DOOR MIRROR),ORCHID,TRIM4#

67675COVER, SIDE TRIM BOARD, FRONT RH

main67675-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67675-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67676COVER, SIDE TRIM BOARD, FRONT LH

main67676-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67676-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67685ACOVER, SIDE TRIM BOARD, FRONT RH

main67685-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67685-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67686BCOVER, SIDE TRIM BOARD, FRONT LH

main67686-40010-B3iGZG50199810-201701

MEDIUM GRAY,TRIM1#

main67686-40010-E1iGZG50199810-201701

ORCHID,TRIM4#

67705ORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH

main67705-40040iGZG50..LHD199810

main67705-40050iGZG50..RHD199810

67706ORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH

main67706-40050iGZG50..LHD199810

main67706-40060iGZG50..RHD199810

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main67785-40020iGZG50199810-201701

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-40010iGZG50..RHD199810-201701

main68170-40020iGZG50199810-201701

W(DOOR MIRROR)

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-40010iGZG50..RHD199810-201701

main68220-40020iGZG50199810-201701

W(DOOR MIRROR)

7401

74205PANEL SUB-ASSY, FRONT ARMREST BASE, LOWER RH

main74205-40020-B0iGZG50199810-201701

GRAY,TRIM1#

main74205-40020-E0iGZG50199810-201701

ORCHID,TRIM4#

74206PANEL SUB-ASSY, FRONT ARMREST BASE, LOWER LH

main74206-40020-B0iGZG50199810-201701

GRAY,TRIM1#

main74206-40020-E0iGZG50199810-201701

ORCHID,TRIM4#

74293PLATE, FRONT DOOR ARMREST, NO.1

main74294-32010iGZG50199810

8401

6777128020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28020

6777128030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28030

9016460027

main90164-60027

9016726002

main90167-26002

9016840061

main90168-40061

9018906197

main90189-06197

9046710093

main90467-10093

27 parts on this diagram · 2 diagrams in section
