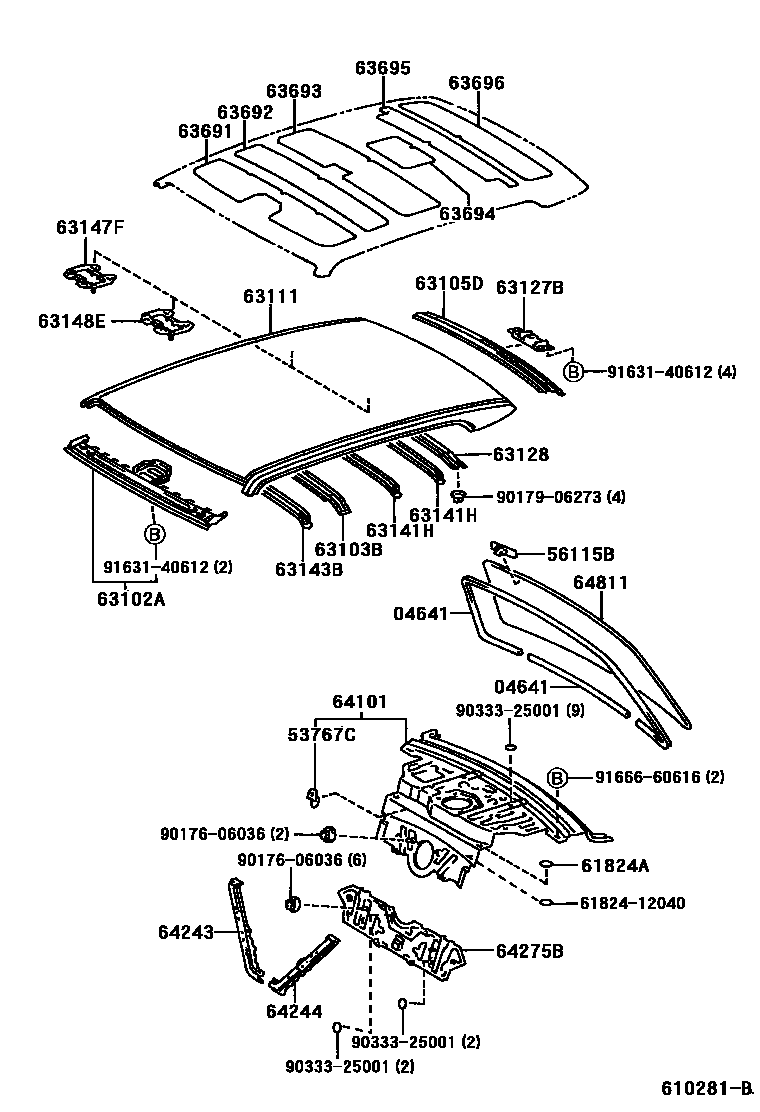

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
L=2872
53767CBRACKET, WIRERING HARNESS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
61824APLATE, NOISE CONTROL, NO.1
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
63127BDAMPER, BACK WINDOW UPPER FREME
63128REINFORCEMENT, ROOF PANEL, NO.6
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143BREINFORCEMENT, ROOF PANEL, NO.3
63147FBRACKET, ROOF PANEL REINFORCEMENT, RH
63148EBRACKET, ROOF PANEL REINFORCEMENT, LH
63691PAD, ROOF SILENCER, NO.21
63692PAD, ROOF SILENCER, NO.22
63693PAD, ROOF SILENCER, NO.23
63694PAD, ROOF SILENCER, NO.24
63695PAD, ROOF SILENCER, NO.25
63696PAD, ROOF SILENCER, NO.26
64101PANEL SUB-ASSY, UPPER BACK
64243PANEL, ROOM PARTITION, NO.2 RH
64244PANEL, ROOM PARTITION, NO.2 LH
64275BCOVER, ROOM PARTITION
64811GLASS, BACK WINDOW
*EHTL,T=5.3,GREEN
*EHSERL,T=5.3,BRONZE
*EHTL,T=5.3,GREEN
6182412040PLATE, NOISE CONTROL, NO.1
main61824-12040
9017606036
main90176-06036
9017906273
main90179-06273
9033325001
main90333-25001
9163140612
main91631-40612
9166660616
main91666-60616
31 parts on this diagram · 1 diagram in section
