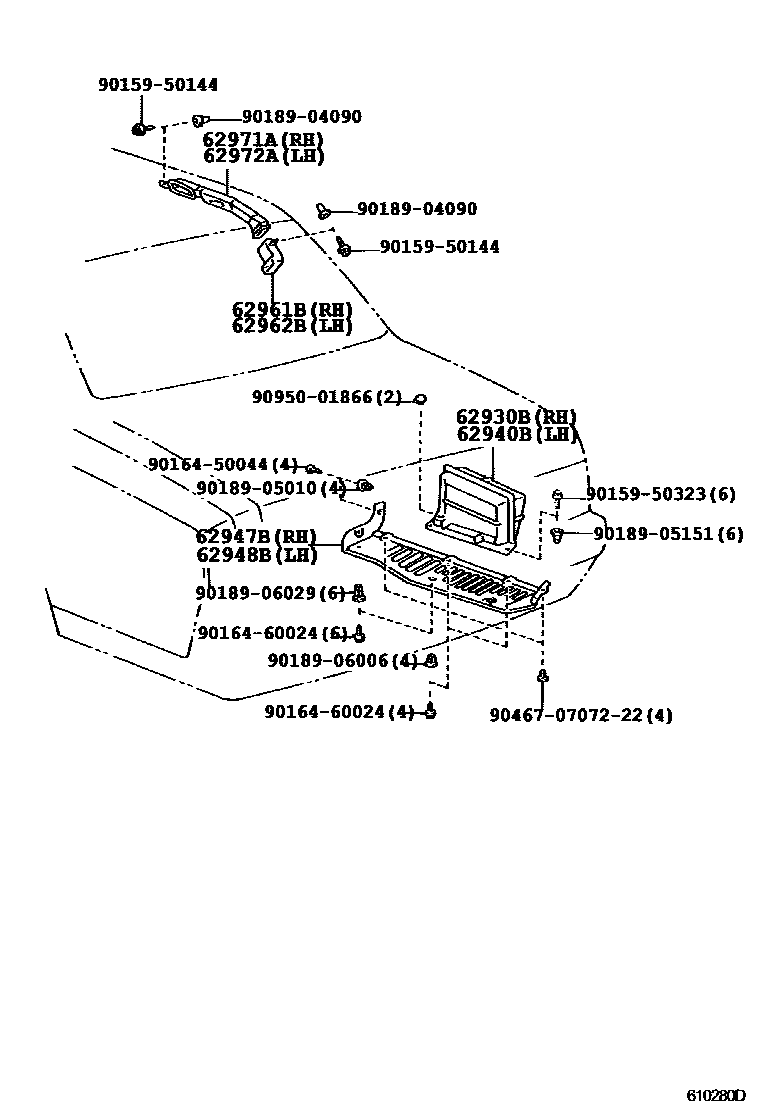

ROOF SIDE VENTILATOR

62930BDUCT ASSY, QUARTER VENT, RH

main62930-40010iGZG50199810

62940BDUCT ASSY, QUARTER VENT, LH

main62940-40020iGZG50199810

62947BSHIELD, QUARTER VENT DUCT WATER, RH

main62947-40010iGZG50199810

62948BSHIELD, QUARTER VENT DUCT WATER, LH

main62948-40010iGZG50199810

62961BDUCT, QUARTER VENT, NO.2 RH

main62961-40010iGZG50199810

62962BDUCT, QUARTER VENT, NO.2 LH

main62962-40010iGZG50199810

62971ADUCT, ROOF SIDE AIR, NO.1 RH

main62971-40010iGZG50199810

62972ADUCT, ROOF SIDE AIR, NO.1 LH

main62972-40010iGZG50199810

9015950144

main90159-50144

9015950323

main90159-50323

9016450044

main90164-50044

9016460024

main90164-60024

9018904090

main90189-04090

9018905010

main90189-05010

9018905151

main90189-05151

9018906006

main90189-06006

9018906029

main90189-06029

904670707222

main90467-0707222

9095001866

main90950-01866

19 parts on this diagram · 1 diagram in section
