MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-40010-B0iGZG50..RHD199810-201106

MD.GRAY,TRIM1#

main58510-40010-B2iGZG50..RHD201106-201701

MD.GRAY,TRIM1#

main58510-40010-E0iGZG50..RHD199810-201106

ORCHID,TRIM4#

main58510-40010-E1iGZG50..RHD201106-201701

ORCHID,TRIM4#

58510GCARPET ASSY, FLOOR, FRONT RH

main58510-40050-B0iGZG50..LHD199810-201106

MD.GRAY,TRIM1#

main58510-40050-B1iGZG50..LHD201106-201701

MD.GRAY,TRIM1#

main58510-40050-E0iGZG50..LHD199810-201106

ORCHID,TRIM4#

main58510-40050-E1iGZG50..LHD201106-201701

ORCHID,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iGZG50199810-201701

BLACK,TRIM1#,4#

sub90467-06016

sub90467-07049

58520JCARPET ASSY, FLOOR, FRONT LH

main58520-40010-B0iGZG50..LHD199810-201106

MD.GRAY,TRIM1#

main58520-40010-B1iGZG50..LHD201106-201701

MD.GRAY,TRIM1#

main58520-40010-E0iGZG50..LHD199810-201106

ORCHID,TRIM4#

main58520-40010-E1iGZG50..LHD201106-201701

ORCHID,TRIM4#

58530JCARPET ASSY, FLOOR, CENTER

main58530-40010-B0iGZG50..LHD199810-201106

MD.GRAY,TRIM1#

main58530-40010-B1iGZG50..LHD201106-201701

MD.GRAY,TRIM1#

main58530-40010-E0iGZG50..LHD199810-201106

ORCHID,TRIM4#

main58530-40010-E1iGZG50..LHD201106-201701

ORCHID,TRIM4#

58574DPAD, FRONT FLOOR, CENTER NO.2 RH

main58574-40010iGZG50199810

58584CPAD, FRONT FLOOR, CENTER NO.2 LH

main58584-40010iGZG50199810

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-40020iGZG50199810

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-40020iGZG50199810

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-40010iGZG50199810

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-40010iGZG50199810

58633DPAD, FRONT FLOOR SILENCER, REAR RH

main58633-40010iGZG50199810

58634EPAD, FRONT FLOOR SILENCER, REAR LH

main58634-40020iGZG50199810

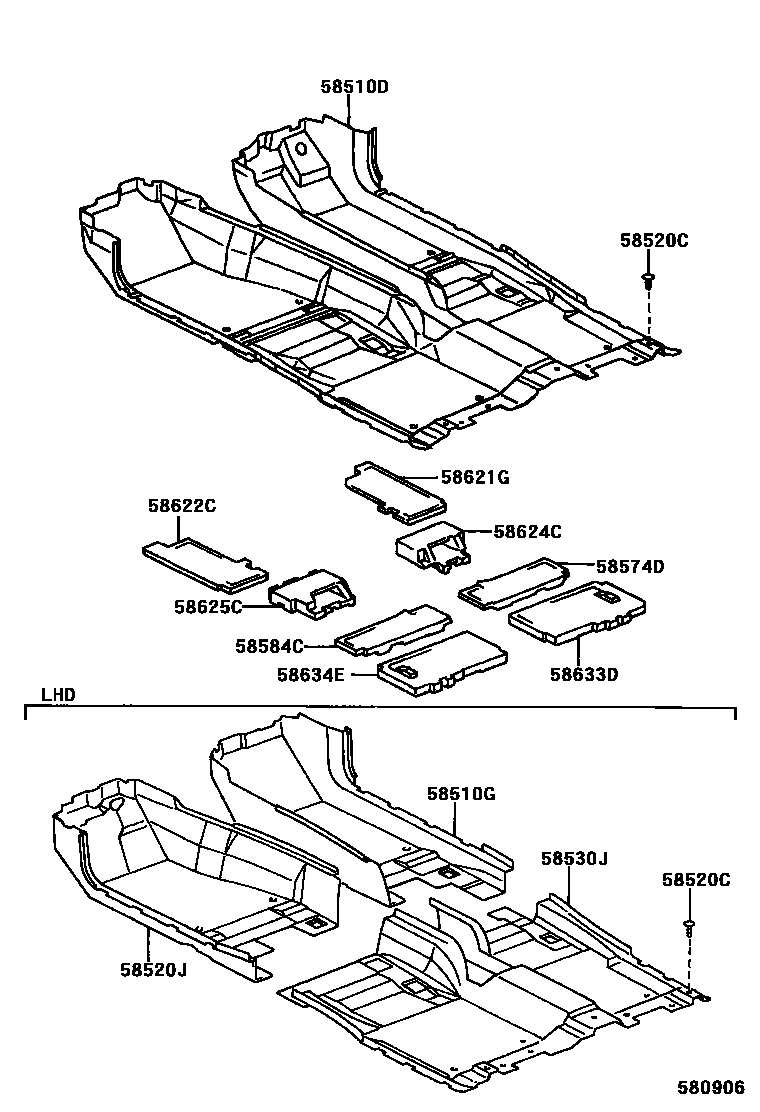

13 parts on this diagram · 1 diagram in section
