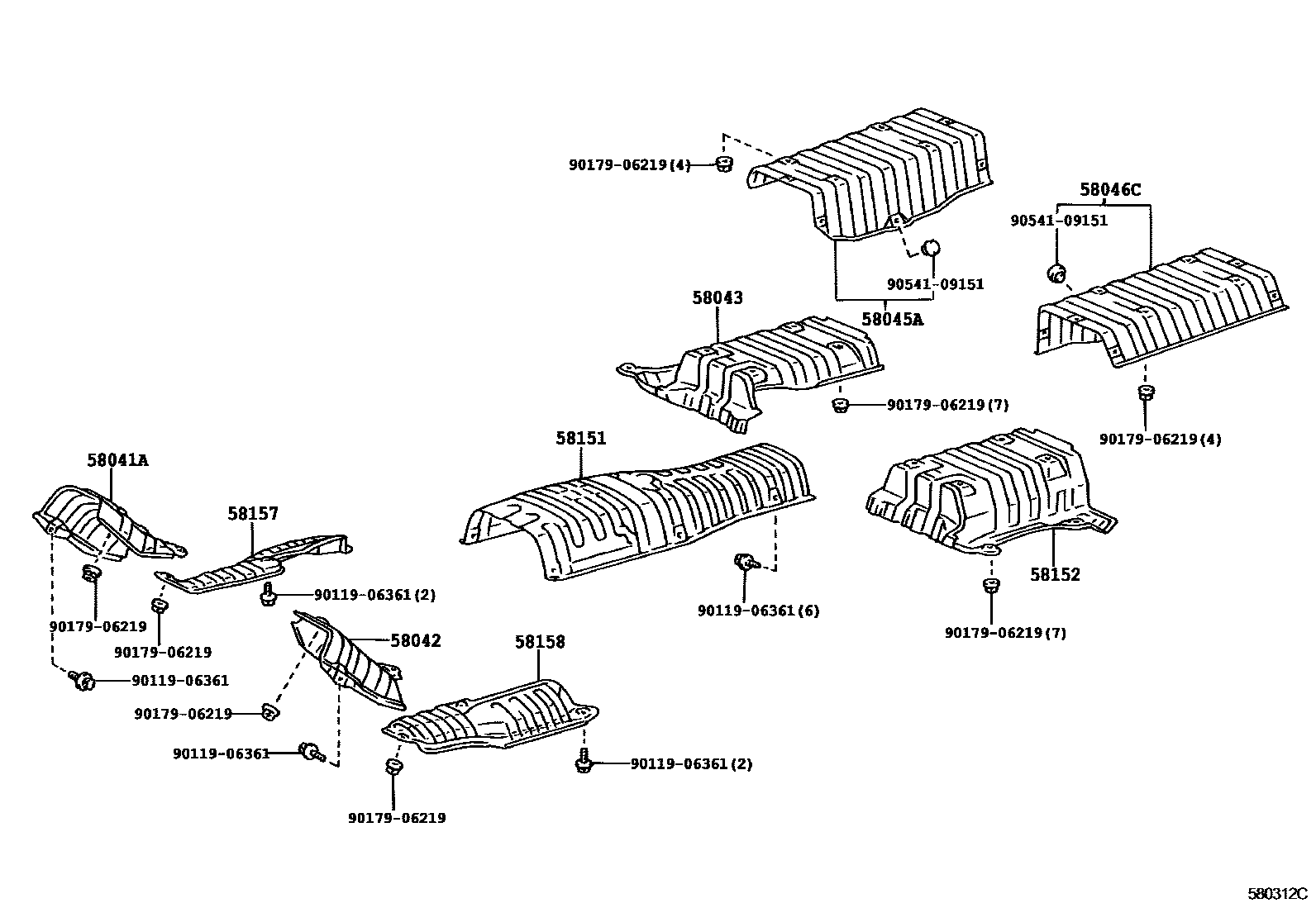

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-40020iGZG50199810

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-40020iGZG50199810

58043INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, REAR

main58043-50010iGZG50199810

58045AINSULATOR SUB-ASSY, REAR FLOOR HEAT

main58045-40010iGZG50199810

58046CINSULATOR SUB-ASSY, REAR FLOOR HEAT, NO.2

main58046-40010iGZG50199810

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-50010iGZG50199810

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58044-50010iGZG50199810

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-50020iGZG50199810

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-50020iGZG50199810

9011906361

main90119-06361

9017906219

main90179-06219

9054109151

main90541-09151

12 parts on this diagram · 1 diagram in section
