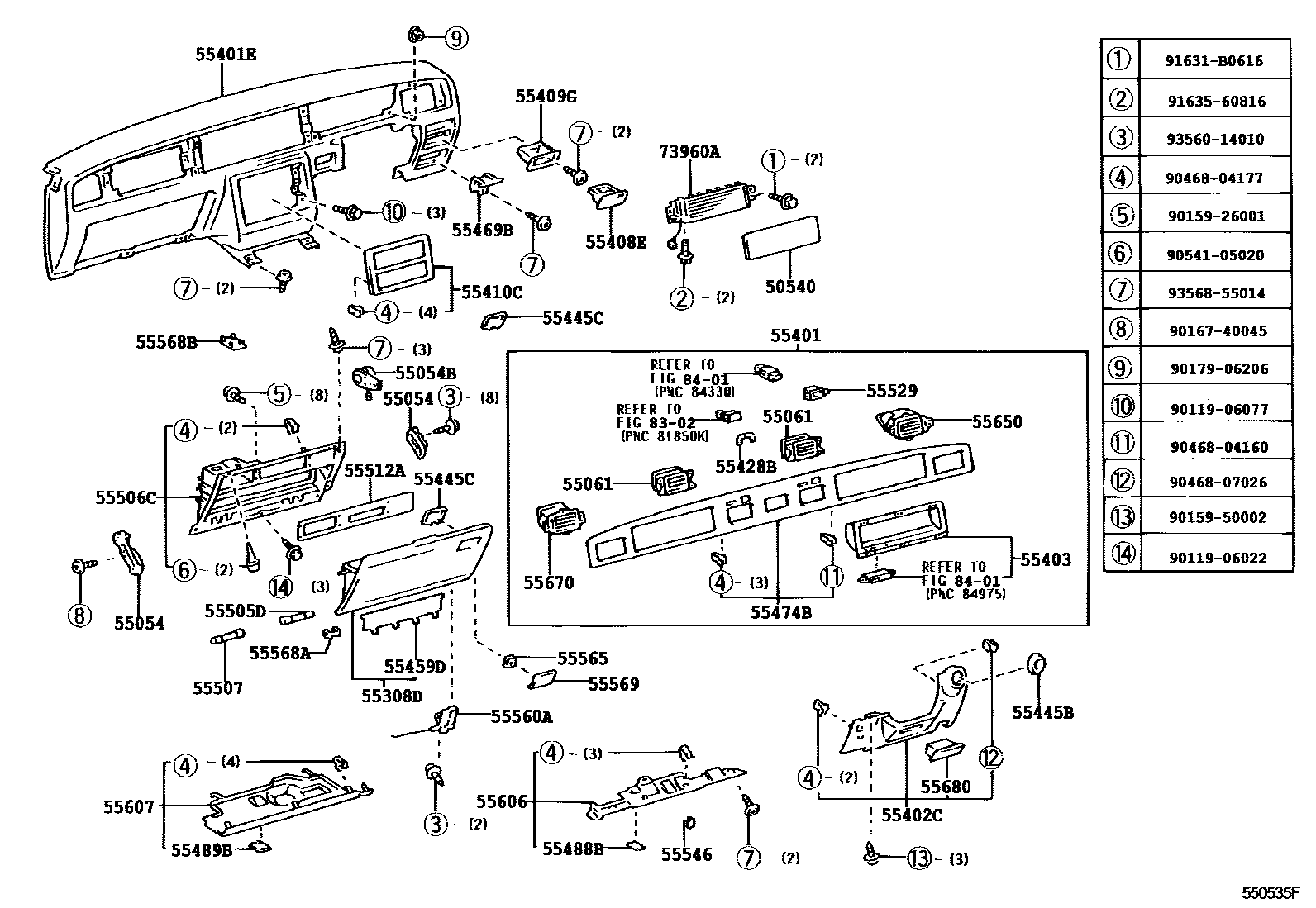

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

50540DO0R ASSY, AIRBAG PASSENGER

main50540-40010iGZG50..RHD199810

main50540-40020iGZG50..LHD199810

55054STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

main55054-40020iGZG50..RHD199810

main55054-40050iGZG50..LHD199810

RH

main55054-40060iGZG50..LHD199810

LH

55054BSTOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

main55054-40030iGZG50199810

55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

main55061-40030iGZG50199810

55308DBOX SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-40010-B0iGZG50..RHD199810-201701

MD.GRAY,TRIM1#

main55308-40010-E0iGZG50..RHD199810-201701

ORCHID,TRIM4#

main55308-40020-B0iGZG50..LHD199810-201701

MD.GRAY,TRIM1#

main55308-40020-E0iGZG50..LHD199810-201701

ORCHID,TRIM4#

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-40050iGZG50..LHD199810

main55404-40060iGZG50..RHD199810

main55404-40070iGZG50..RHD199810

SINGAPORE OR HONG KONG OR THAILAND OR BRUNEI SPEC

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-40050-C0iGZG50..RHD199810-200004

BLACK,TRIM1#

sub55401-40051

main55401-40050-E0iGZG50..RHD199810-200004

ORCHID BROWN,TRIM4#

sub55401-40051

main55401-40051-C0iGZG50..RHD200004-201701

BLACK,TRIM1#

main55401-40051-E0iGZG50..RHD200004-201701

ORCHID BROWN,TRIM4#

main55401-40080-C0iGZG50..LHD199810-201701

BLACK,TRIM1#

main55401-40080-E0iGZG50..LHD199810-201701

ORCHID BROWN,TRIM4#

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-40050-B0iGZG50..LHD199810-201701

MD.GRAY,TRIM1#

main55402-40050-E0iGZG50..LHD199810-201701

ORCHID,TRIM4#

main55402-40060-B0iGZG50..RHD199810-201701

MD.GRAY,TRIM1#

sub55402-40061

main55402-40060-E0iGZG50..RHD199810-201701

ORCHID,TRIM4#

sub55402-40061

55403HOOD SUB-ASSY, METER

main55403-40030iGZG50..RHD199810

SINGAPORE OR HONG KONG OR THAILAND OR BRUNEI SPEC

main55403-40050iGZG50..LHD199810

main55403-40060iGZG50..RHD199810

55408EBOX SUB-ASSY, INSTRUMENT PANEL COIN

main55408-40010-B0iGZG50..RHD199810-201701

MD.GRAY,TRIM1#

main55408-40010-E0iGZG50..RHD199810-201701

ORCHID,TRIM4#

55409GRETAINER SUB-ASSY, COIN BOX

main55409-40040iGZG50..RHD199810

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-40020iGZG50199810

55428BBRACKET, INSTRUMENT CLUSTER, NO.2

main55428-40020iGZG50199810

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-30160-B4iGZG50199810-201701

MD.GRAY,TRIM1#

sub55445-30160

main55445-30160-E3iGZG50199810-201701

ORCHID,TRIM4#

sub55445-30160

55445CPLATE, INSTRUMENT PANEL BOX

main55445-50010iGZG50199810

55459DCOVER, INSTRUMENT, LOWER LH

main55459-40030iGZG50199810

55469BINSERT, INSTRUMENT PANEL LOWER PAD SUB

main55469-40010iGZG50..RHD199810

55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL

main55474-40070iGZG50..LHD199810

main55474-40090iGZG50..RHD199810

55488BLENS, FRONT FOOT LAMP, NO.1

main55489-50010iGZG50199810

55489BLENS, FRONT FOOT LAMP, NO.2

main55489-50010iGZG50199810

55505DHINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-40020iGZG50199810

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-40020iGZG50..RHD199810

main55506-40030iGZG50..LHD199810

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-40010iGZG50199810

55512APLATE, GLOVE COMPARTMENT

main55512-40020iGZG50..RHD199810

main55512-40030iGZG50..LHD199810

55529COVER, WARNING LAMP HOLE

main55529-40010iGZG50199810

55546COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE

main55546-30030iGZG50..RHD199906

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-40010iGZG50..RHD199810-201701

main55560-40030iGZG50..LHD199810-201701

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-50010-B2iGZG50199810-201701

MD.GRAY,TRIM1#

sub55565-50010

main55565-50010-E1iGZG50199810-201701

ORCHID,TRIM4#

sub55565-50010

55568APLATE, SHELL BOX FINISH

main55568-40010iGZG50199810

55568BPLATE, GLOVE COMPARTMENT DOOR FINISH

main55568-50030iGZG50199810

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-50010-B2iGZG50199810-201701

MD.GRAY,TRIM1#

sub55569-50010

main55569-50010-E1iGZG50199810-201701

ORCHID,TRIM4#

sub55569-50010

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-40020iGZG50..RHD199810

main55606-40040iGZG50..LHD199810

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-40040-B0iGZG50..LHD199810-201106

MD.GRAY,TRIM1#

main55607-40040-B1iGZG50..LHD201106-201701

MD.GRAY,TRIM1#

main55607-40040-E0iGZG50..LHD199810-201106

ORCHID,TRIM4#

main55607-40040-E1iGZG50..LHD201106-201701

ORCHID,TRIM4#

main55607-40050-B0iGZG50..RHD199810-201106

MD.GRAY,TRIM1#

main55607-40050-B1iGZG50..RHD201106-201701

MD.GRAY,TRIM10

main55607-40050-E0iGZG50..RHD199810-201106

ORCHID,TRIM4#

main55607-40050-E1iGZG50..RHD201106-201701

ORCHID,TRIM40

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-40020iGZG50..RHD199810

main55650-40030iGZG50..LHD199810

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-40010iGZG50199810

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-22020-E0iGZG50199810-201701

ORCHID,TRIM4#

sub55680-18010

sub55680-22020

sub55680-50020

sub55680-50010

main55680-22020-S4iGZG50199810-201701

MD.GRAY,TRIM1#

sub55680-18010

sub55680-22020

sub55680-50020

sub55680-50010

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-40020iGZG50..LHD199810

main73960-40030iGZG50..RHD199810

8302

8401

9011906022

main90119-06022

9011906077

main90119-06077

9015926001

main90159-26001

9015950002

main90159-50002

9016740045

main90167-40045

9017906206

main90179-06206

9046804160

main90468-04160

9046804177

main90468-04177

9046807026

main90468-07026

9054105020

main90541-05020

91631B0616

main91631-B0616

9163560816

main91635-60816

9356014010

main93560-14010

9356855014

main93568-55014

53 parts on this diagram · 4 diagrams in section
