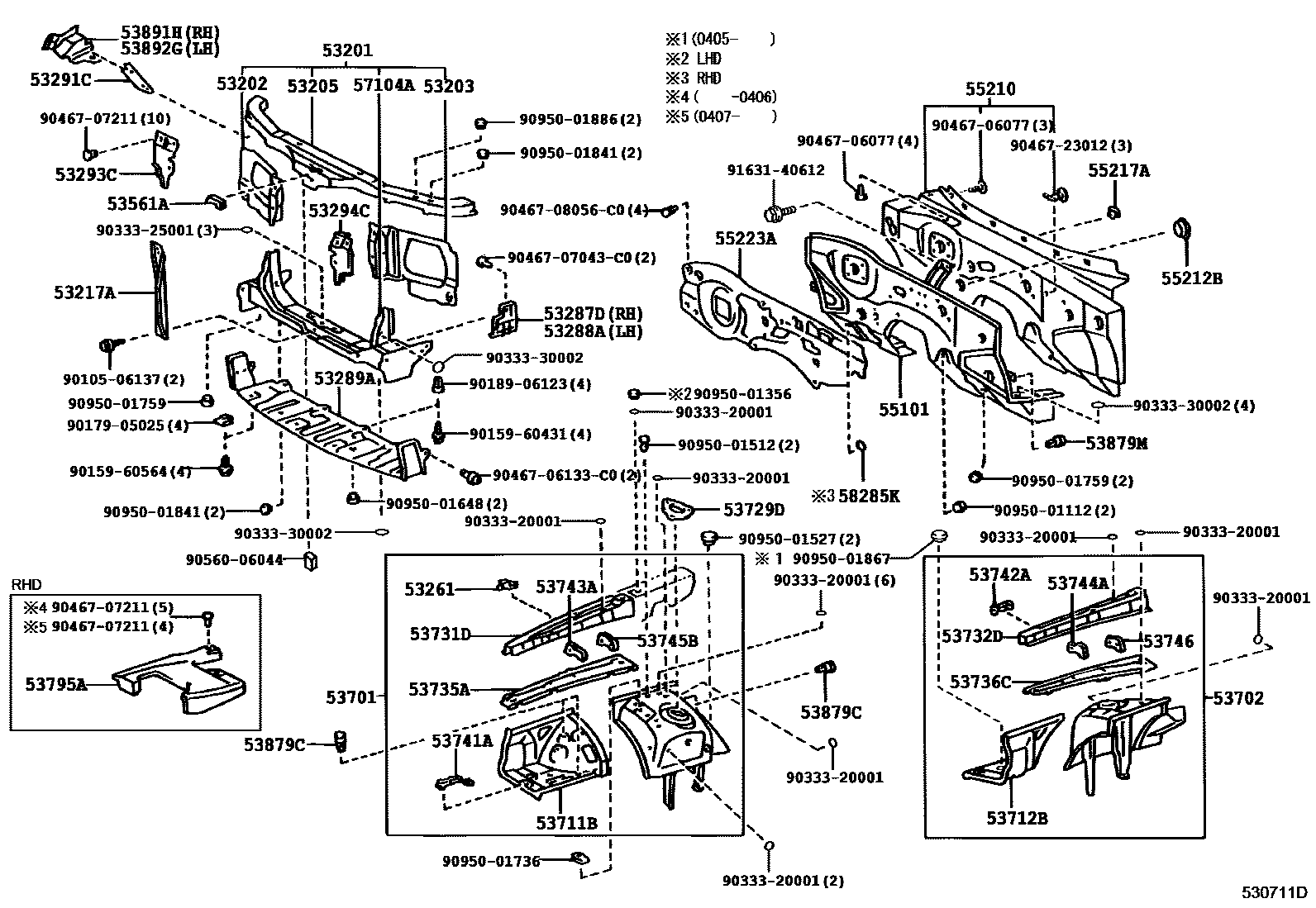

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53261BRACKET, RADIATOR RESERVE TANK MOUNTING
53287DDUCT, COOL AIR INTAKE
53288ADUCT, COOL AIR INTAKE
53289ACOVER, RADIATOR SUPPORT OPENING
53291CSEAL, RADIATOR SUPPORT TO FRAME
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53561AGUIDE, HOOD AUXILIARY CATCH HOOK
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53729DREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53741APLATE, FENDER APRON REINFORCE, RH
53742APLATE, FRONT FENDER APRON REINFORCEMENT
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53795ACOVER, ENGINE ROOM, SIDE
53879CRETAINER, FRONT FENDER LINER
53879MRETAINER, FRONT FENDER LINER
53891HSEAL, FRONT FENDER SPLASH SHIELD, FRONT RH
53892GSEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55212BCOVER, DASH PANEL INSULATOR, NO.2
55217ARETAINER, DASH PANEL SILENCER
55223AINSULATOR, DASH PANEL, OUTER
SINGAPORE SPEC
57104AMEMBER SUB-ASSY, FRONT CROSS
58285KCOVER, DASH PANEL HOLE
9010506137
9015960431
9015960564
9017905025
9018906123
9033320001
9033325001
9033330002
9046706077
9046706133C0
main90467-06133C0
9046707043C0
main90467-07043C0
9046707211
9046708056C0
main90467-08056C0
9046723012
9056006044
9095001112
9095001356
9095001512
9095001527
9095001648
9095001736
9095001759
9095001841
9095001867
9095001886
9163140612
66 parts on this diagram · 1 diagram in section
