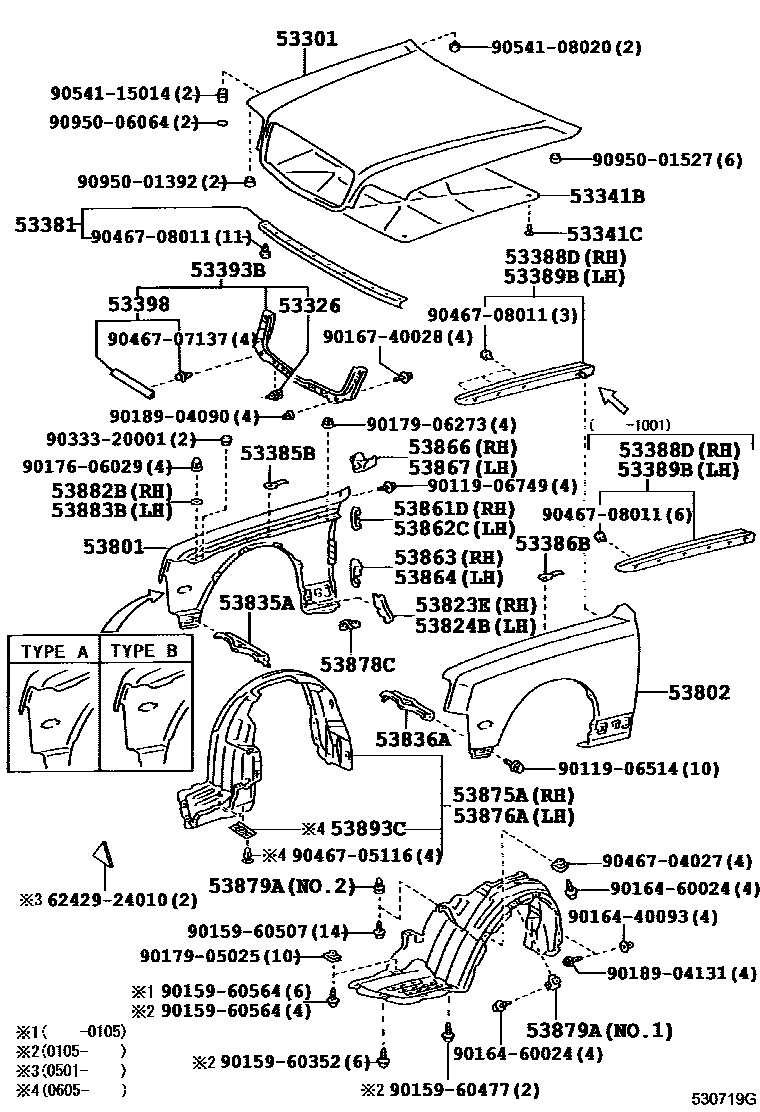

HOOD & FRONT FENDER
53326CLIP, HOOD PROTECTOR
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53393BPROTECTOR, HOOD, FRONT
53398SEAL, RADIATOR, LOWER
53801FENDER SUB-ASSY, FRONT RH
W(FENDER MIRROR)
TYPE A:REFER TO ILLUSTRATION & W(DOOR MIRROR)
TYPE B:REFER TO ILLUSTRATION & W(DOOR MIRROR)
53802FENDER SUB-ASSY, FRONT LH
W(FENDER MIRROR)
TYPE A:REFER TO ILLUSTRATION & W(DOOR MIRROR)
TYPE B:REFER TO ILLUSTRATION & W(DOOR MIRROR)
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53861DSEAL, FRONT FENDER TO DOOR HINGE, UPPER RH
53862CSEAL, FRONT FENDER TO DOOR HINGE, UPPER LH
53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH
53864SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
CHINA SPEC
53876ALINER, FRONT FENDER, LH
CHINA SPEC
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
NO.1
NO.2
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53893CRETAINER, FRONT FENDER SPLASH SHIELD, FRONT
6242924010COVER, CENTER PILLAR SERVICE HOLE
9011906514
9011906749
9015960352
9015960477
9015960507
9015960564
9016440093
9016460024
9016740028
9017606029
9017905025
9017906273
9018904090
9018904131
9033320001
9046704027
9046705116
9046707137
9046708011
9054108020
9054115014
9095001392
9095001527
9095006064
55 parts on this diagram · 2 diagrams in section
