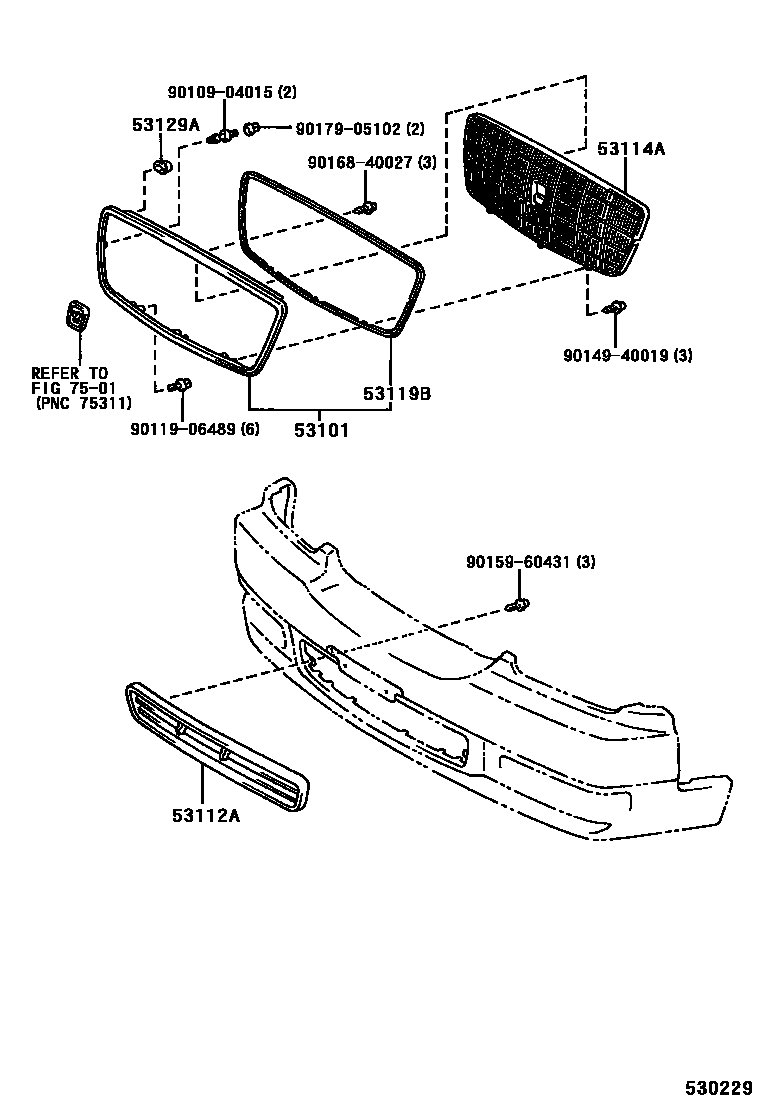

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-40010iGZG50199810-200712

sub53101-40020

main53101-40020iGZG50200801

53112AGRILLE, RADIATOR, LOWER

main53112-40020iGZG50199810

53114AGRILLE, RADIATOR, INNER

main53114-40010iGZG50199810-200712

sub53114-40011

main53114-40011iGZG50200801

53119BPROTECTOR, RADIATOR GRILLE

main53119-40010iGZG50199810

53129APIPE, RADIATOR GRILLE

main53129-50010iGZG50199810

7501

9010904015

main90109-04015

9011906489

main90119-06489

9014940019

main90149-40019

9015960431

main90159-60431

9016840027

main90168-40027

9017905102

main90179-05102

12 parts on this diagram · 1 diagram in section
