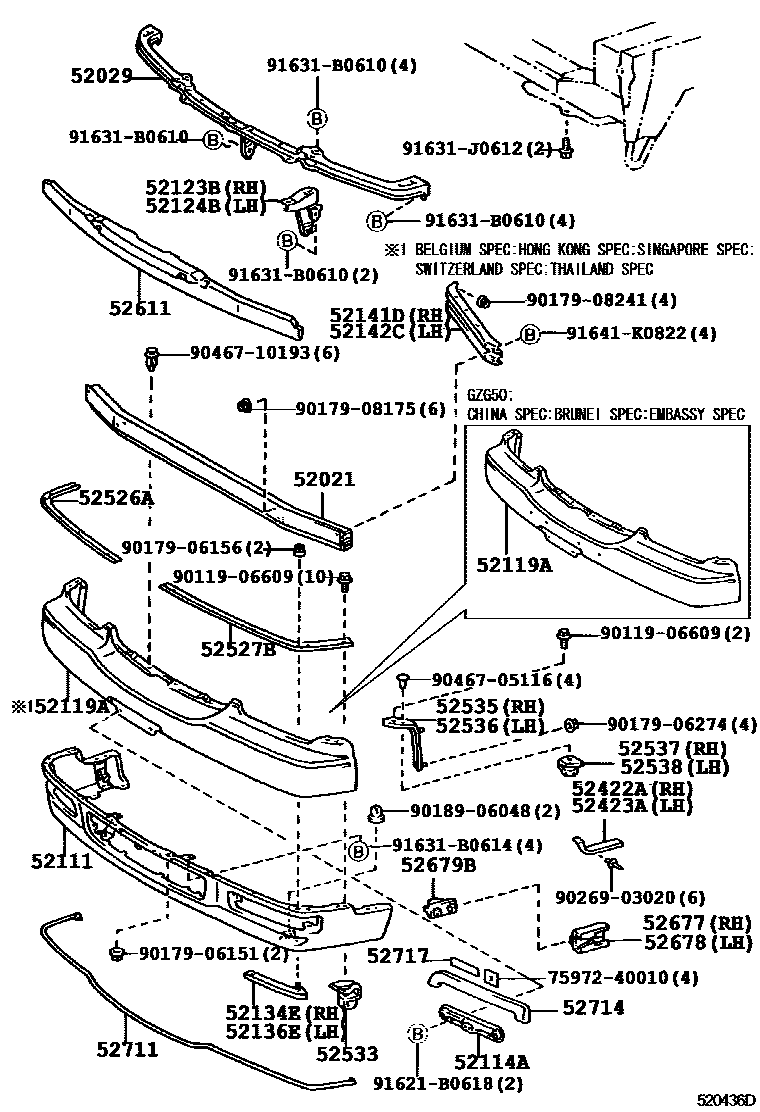

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52111BUMPER ASSY, FRONT
HONG KONG SPEC;BRUNEI SPEC;SINGAPORE SPEC;THAILAND SPEC
CHINA SPEC
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52119ACOVER, FRONT BUMPER
HONG KONG SPEC;SWITZERLAND SPEC;BELGIUM SPEC;SINGAPORE SPEC;THAILAND SPEC
52123BPLATE, FRONT BUMPER REINFORCEMENT, RH
52124BPLATE, FRONT BUMPER REINFORCEMENT, LH
52134EREINFORCEMENT, FRONT BUMPER, NO.4
52136EREINFORCEMENT, FRONT BUMPER, NO.6
52141DSTAY, FRONT BUMPER, RH
52142CSTAY, FRONT BUMPER, LH
52422APAD, FRONT BUMPER, RH
52423APAD, FRONT BUMPER, LH
52526ARETAINER, FRONT BUMPER, LOWER NO.1
52527BRETAINER, FRONT BUMPER, LOWER NO.2
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52537RETAINER, FRONT BUMPER END, RH
52538RETAINER, FRONT BUMPER END, LH
52611ABSORBER, FRONT BUMPER ENERGY
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52679BSUPPORT, FRONT BUMPER SIDE, NO.3
52714PLUG, FRONT BUMPER MOULDING, LH
52717RETAINER, FRONT BUMPER MOULDING
7597240010STRIPE, SIDE, LH NO.1
main75972-40010
9011906609
main90119-06609
9017906151
main90179-06151
9017906156
main90179-06156
9017906274
main90179-06274
9017908175
main90179-08175
9017908241
main90179-08241
9018906048
main90189-06048
9026903020
main90269-03020
9046705116
main90467-05116
9046710193
main90467-10193
91621B0618
main91621-B0618
91631B0610
main91631-B0610
91631B0614
main91631-B0614
91631J0612
main91631-J0612
91641K0822
main91641-K0822
43 parts on this diagram · 1 diagram in section
