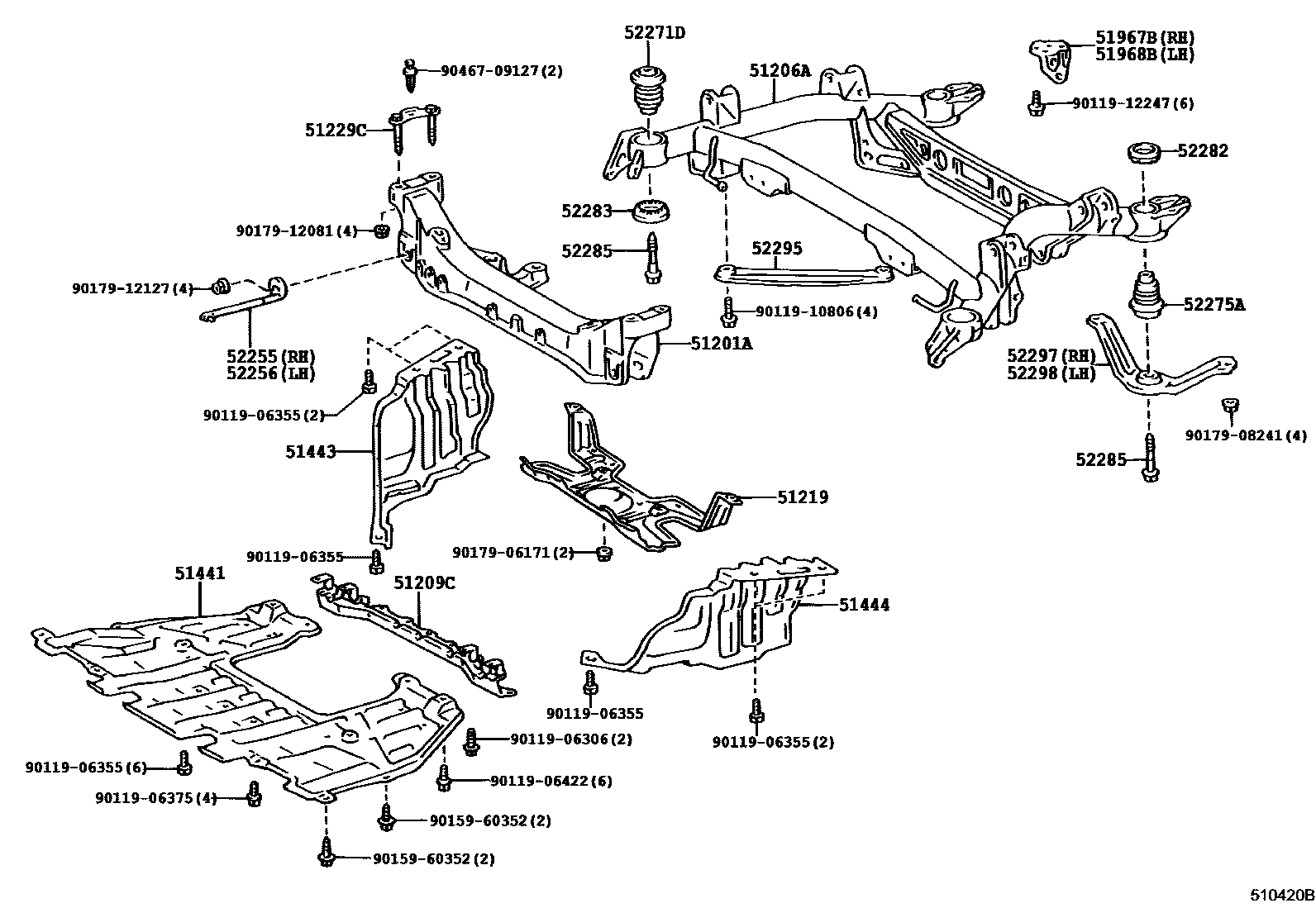

SUSPENSION CROSSMEMBER & UNDER COVER

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-50030iGZG50..LHD199810

main51211-50040iGZG50..RHD199810

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-40010iGZG50199810-200105

sub51206-40011

main51206-40011iGZG50200105-201303

sub51206-40012

main51206-40012iGZG50201304

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-50030iGZG50199810

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-50010iGZG50199810

51229CPLATE, SUSPENSION MEMBER SET

main51229-50020iGZG50199810

51441COVER, ENGINE UNDER, NO.1

main51441-40020iGZG50199810

51443COVER, ENGINE UNDER, REAR RH

main51443-40030iGZG50199810

51444COVER, ENGINE UNDER, REAR LH

main51444-40030iGZG50199810

51967BHOOK, TRANSPORT, REAR RH

main51967-50030iGZG50199810

51968BHOOK, TRANSPORT, REAR LH

main51968-50020iGZG50199810

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-50010iGZG50199810

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-50010iGZG50199810

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-50040iGZG50199810

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-50040iGZG50199810

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-50030iGZG50199810

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-50030iGZG50199810

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iGZG50199810

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50010iGZG50199810

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-50020iGZG50199810

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-50020iGZG50199810

9011906306

main90119-06306

9011906355

main90119-06355

9011906375

main90119-06375

9011906422

main90119-06422

9011910806

main90119-10806

9011912247

main90119-12247

9015960352

main90159-60352

9017906171

main90179-06171

9017908241

main90179-08241

9017912081

main90179-12081

9017912127

main90179-12127

9046709127

main90467-09127

32 parts on this diagram · 1 diagram in section
