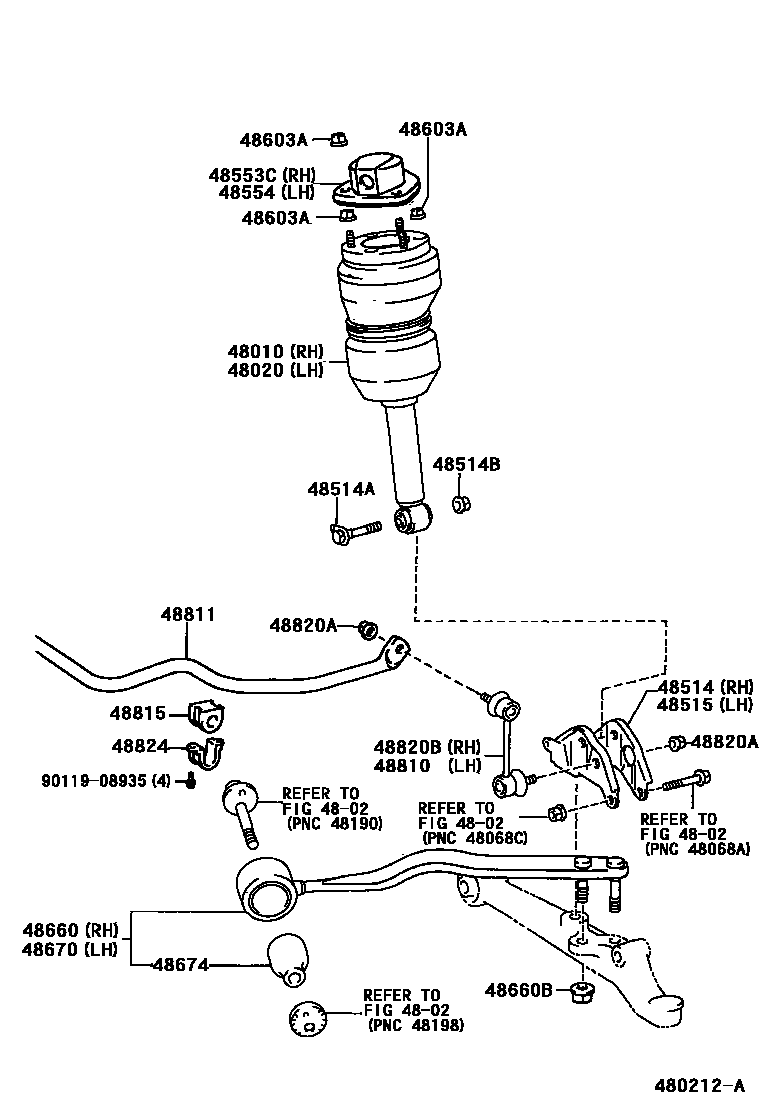

FRONT SPRING & SHOCK ABSORBER

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-40060iGZG50199810

4802

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48010-40060iGZG50199810

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-50011iGZG50199810

48514ABOLT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)

main90105-14087iGZG50199810

48514BNUT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)

main90179-14045iGZG50199810

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-50011iGZG50199810

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-40010iGZG50..LHD199810

main48553-40030iGZG50..RHD199810

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-40010iGZG50199810

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10088iGZG50199810

48660BAR ASSY, STRUT, RH

main48660-40030iGZG50199810

48660BNUT(FOR STRUT BAR)

main90179-14025iGZG50199810

48670BAR ASSY, STRUT, LH

main48670-40020iGZG50199810

48674CUSHION, STRUT BAR

main48674-40060iGZG50199810

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50011iGZG50199810

48811BAR, STABILIZER, FRONT

main48811-40070iGZG50199810

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-40070iGZG50199810-200104

sub48815-40071

main48815-40071iGZG50200104

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12128iGZG50199810

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50011iGZG50199810

48824BRACKET, STABILIZER, FRONT

main48824-50020iGZG50199810

9011908935

main90119-08935

21 parts on this diagram · 1 diagram in section
