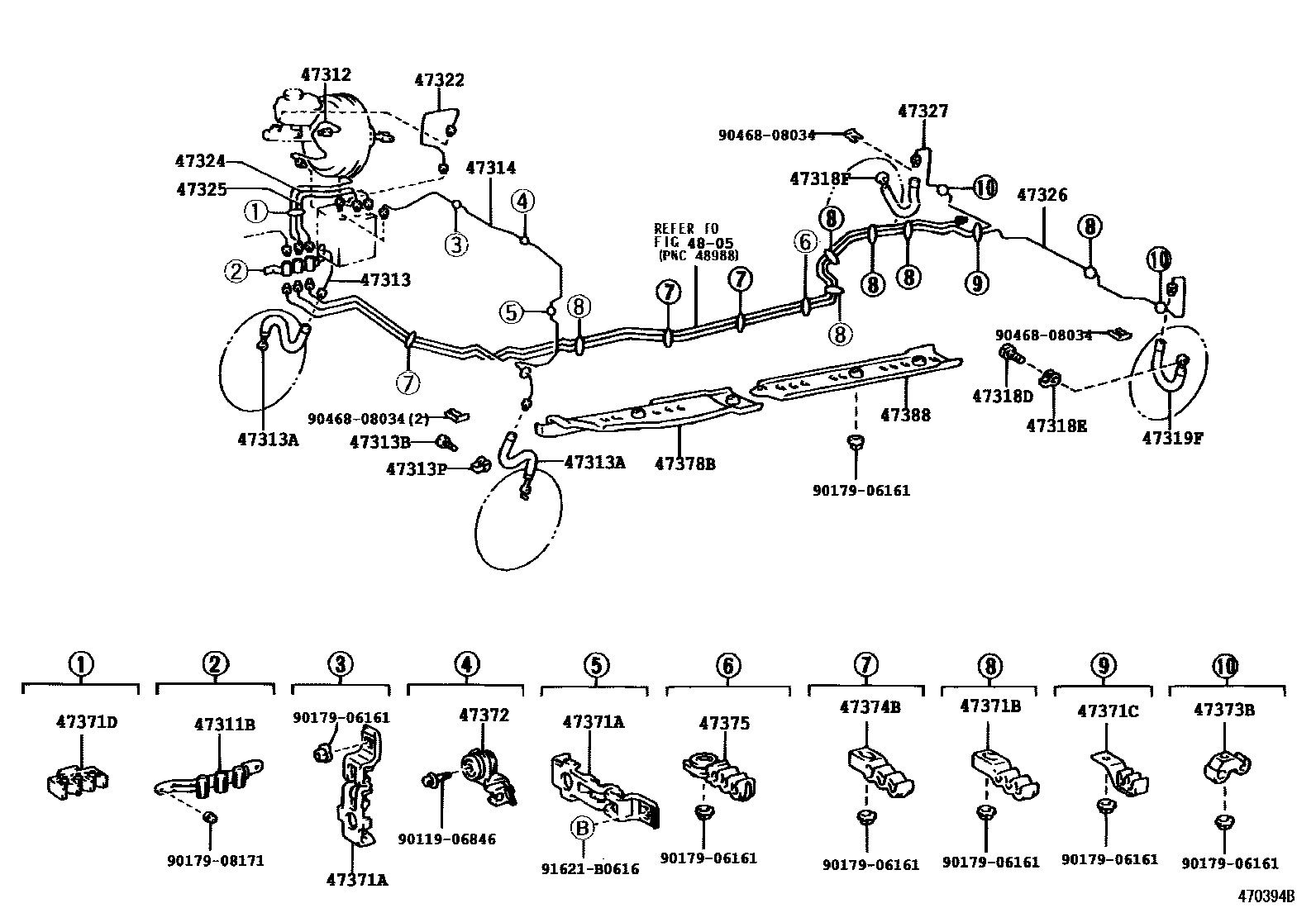

BRAKE TUBE & CLAMP
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
HONG KONG SPEC
47313TUBE, FRONT BRAKE, NO.3
HONG KONG SPEC
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
HONG KONG SPEC
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47322TUBE, REAR BRAKE, NO.2
HONG KONG SPEC
47324TUBE, REAR BRAKE, NO.4
HONG KONG SPEC
47325TUBE, REAR BRAKE, NO.5
HONG KONG SPEC
47326TUBE, REAR BRAKE, NO.6
47327TUBE, REAR BRAKE, NO.7
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
47378BPROTECTOR, TUBE, UPPER
47388PROTECTOR, BRAKE TUBE, LOWER
4805
9011906846
main90119-06846
9017906161
main90179-06161
9017908171
main90179-08171
9046808034
main90468-08034
91621B0616
main91621-B0616
32 parts on this diagram · 6 diagrams in section
