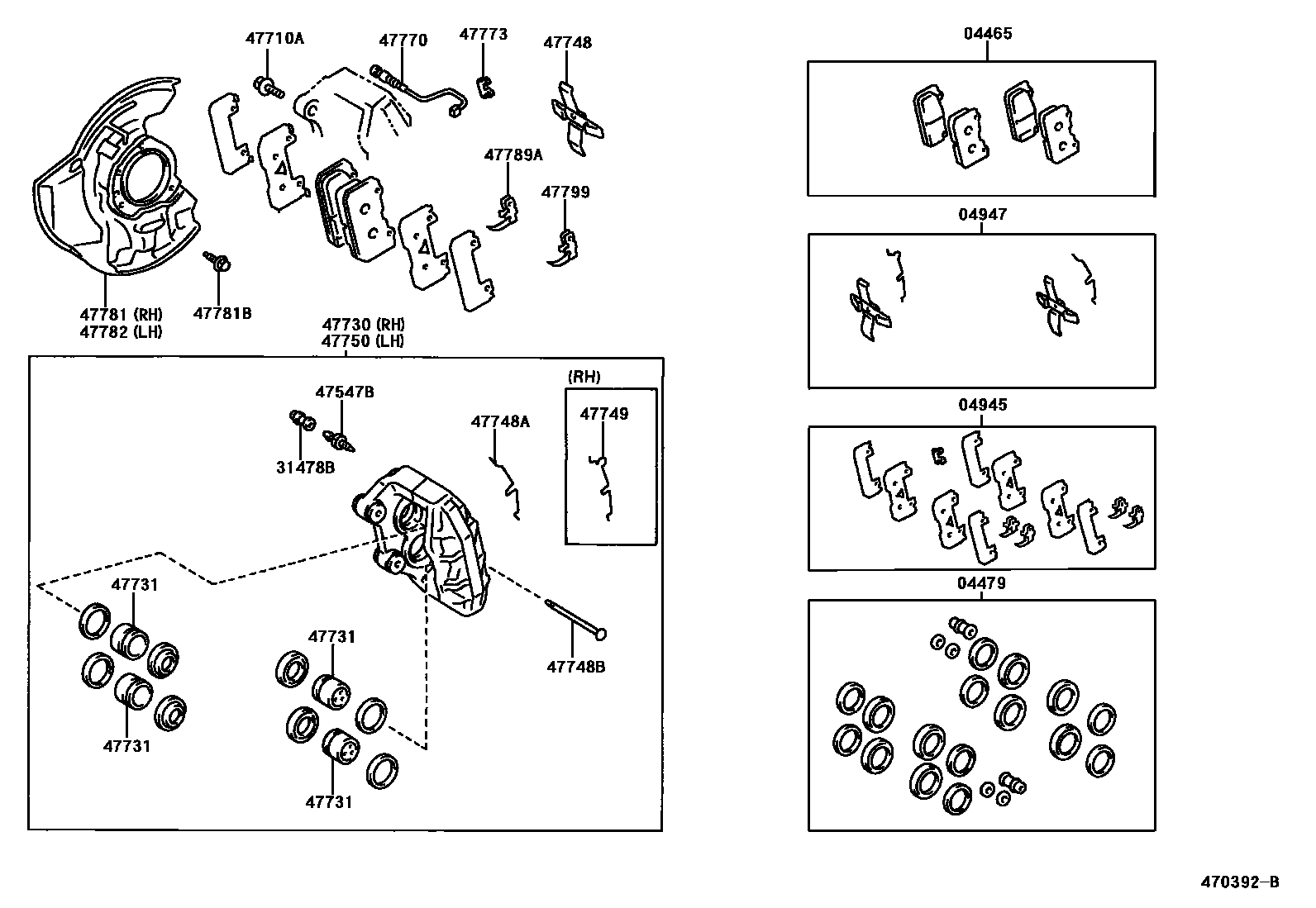

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-50070iGZG50..RHD200112

MARK SUMITOMO PS534,HONG KONG SPEC

main04465-50220iGZG50199810-201003

MARK NBK PN532H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50091iGZG50199810

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-50012iGZG50199810

04947FITTING KIT, DISC BRAKE, FRONT

main04947-50083iGZG50199810

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGZG50199810

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iGZG50199810

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iGZG50199810-201701

*12-1.25PX32-24

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50102iGZG50199810

47731PISTON, FRONT DISC BRAKE

main47731-50060iGZG50199810

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-50010iGZG50199810

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12022iGZG50199810

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50010iGZG50199810

47749CLIP, PIN HOLD

main47749-50020iGZG50199810

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50102iGZG50199810

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-50030iGZG50199810-200005

sub47770-50031

main47770-50031iGZG50200005

47773RETAINER, PAD WEAR INDICATOR

main47773-50030iGZG50199810

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50031iGZG50199810-201701

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028iGZG50199810-201701

*6-1.0PX14-10.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50031iGZG50199810-201701

47789ASPACER, FRONT DISC BRAKE PAD, NO.1

main47789-50012iGZG50199810

47799SPACER, DISC BRAKE PAD, NO.2

main47789-50012iGZG50199810

21 parts on this diagram · 1 diagram in section
