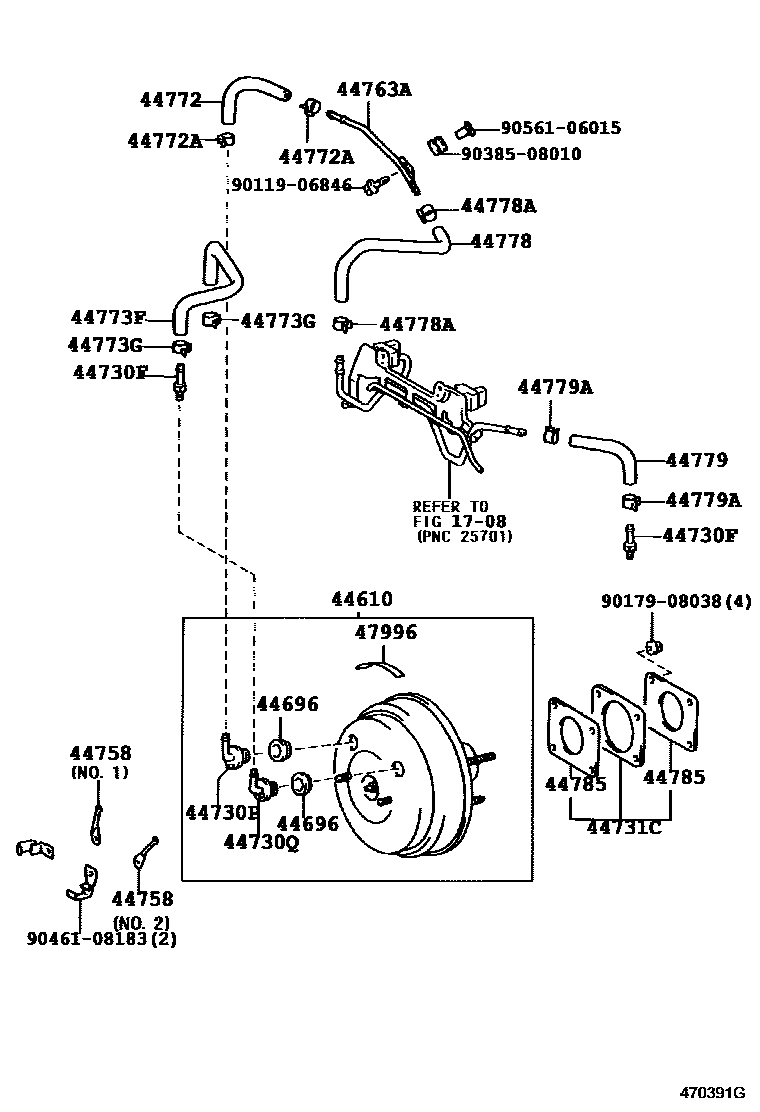

BRAKE BOOSTER & VACUUM TUBE
1708
44696GROMMET, CHECK VALVE
44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)
44730PVALVE ASSY, VACUUM CHECK, NO.1
HONG KONG SPEC
44730QVALVE ASSY, VACUUM CHECK, NO.2
HONG KONG SPEC
44731CBRACKET, BRAKE BOOSTER
44758BRACKET, VACUUM CHECK VALVE
NO.1
NO.2
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
NO.1 & NO.2
44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
NO.1 & NO.2
44779HOSE, UNION TO CONNECTOR
44785GASKET, BRAKE BOOSTER
47996LABEL, BRAKE BLEED NOTICE
9011906846
main90119-06846
9017908038
main90179-08038
9038508010
main90385-08010
9046108183
main90461-08183
9056106015
main90561-06015
24 parts on this diagram · 2 diagrams in section
