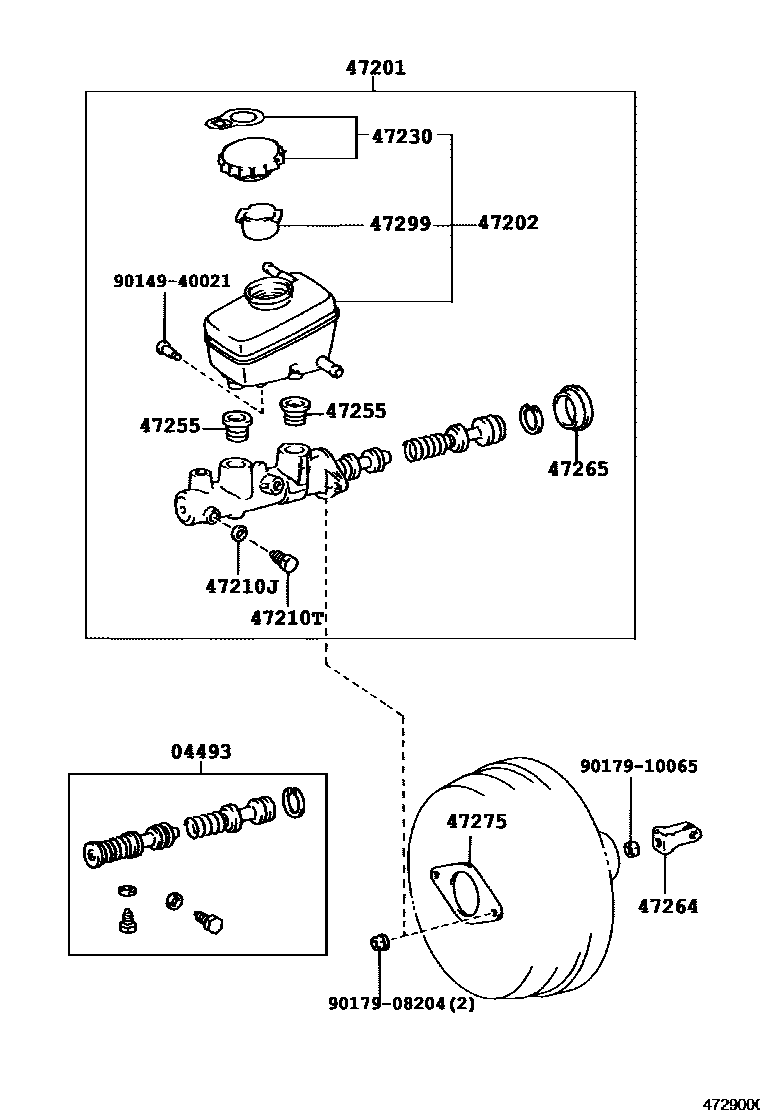

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1HONG KONG SPEC

04493CYLINDER KIT, BRAKE MASTER

main04493-50050iGZG50..RHD200112

HONG KONG SPEC

main04493-53010iGZG50199810

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-40080iGZG50..LHD199810

main47201-40090iGZG50..RHD199810

main47201-40100iGZG50..RHD200112

HONG KONG SPEC

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-14040iGZG50..RHD199810

main47220-40030iGZG50..LHD199810

main47220-40050iGZG50..RHD200112

HONG KONG SPEC

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iGZG50199810

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iGZG50199810

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iGZG50199810-201612

sub47230-47090

main47230-47090iGZG50201612-201701

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGZG50199810

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-30050iGZG50..LHD199810-200607

47265BOOT, MASTER CYLINDER

main47265-20050iGZG50199810

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iGZG50..LHD199810-200607

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGZG50199810

9014940021

main90149-40021

9017908204

main90179-08204

9017910065

main90179-10065

14 parts on this diagram · 3 diagrams in section
