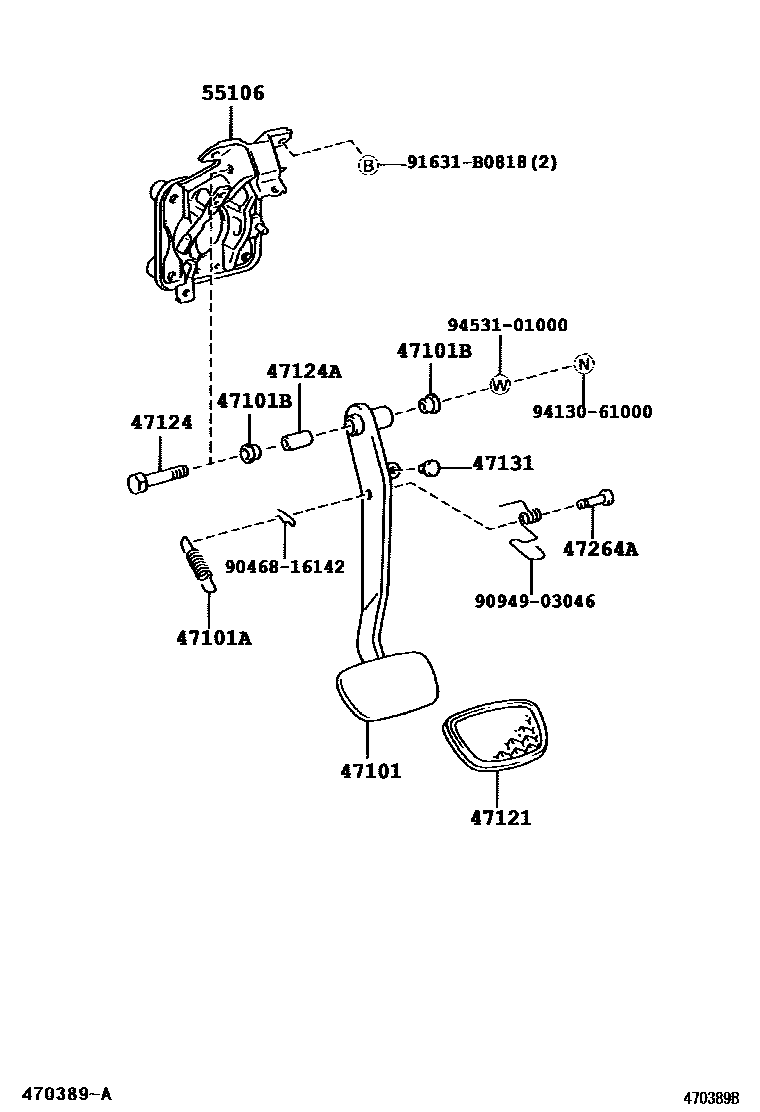

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-40050iGZG50..RHD199810

main47101-40060iGZG50..LHD199810

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13006iGZG50..RHD199810

main90507-14041iGZG50..LHD199810

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGZG50199810

47121PAD, BRAKE PEDAL

main47121-50010iGZG50199810

47124SHAFT, BRAKE PEDAL

main90101-10039iGZG50199810

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGZG50199810

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGZG50199810

47264APIN(FOR PUSH ROD)

main90249-10199iGZG50199810

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-40020iGZG50..RHD199810-201701

main55106-40030iGZG50..LHD199810-201701

9046816142

main90468-16142

9094903046

main90949-03046

91631B0818

main91631-B0818

9413061000

main94130-61000

9453101000

main94531-01000

14 parts on this diagram · 2 diagrams in section
