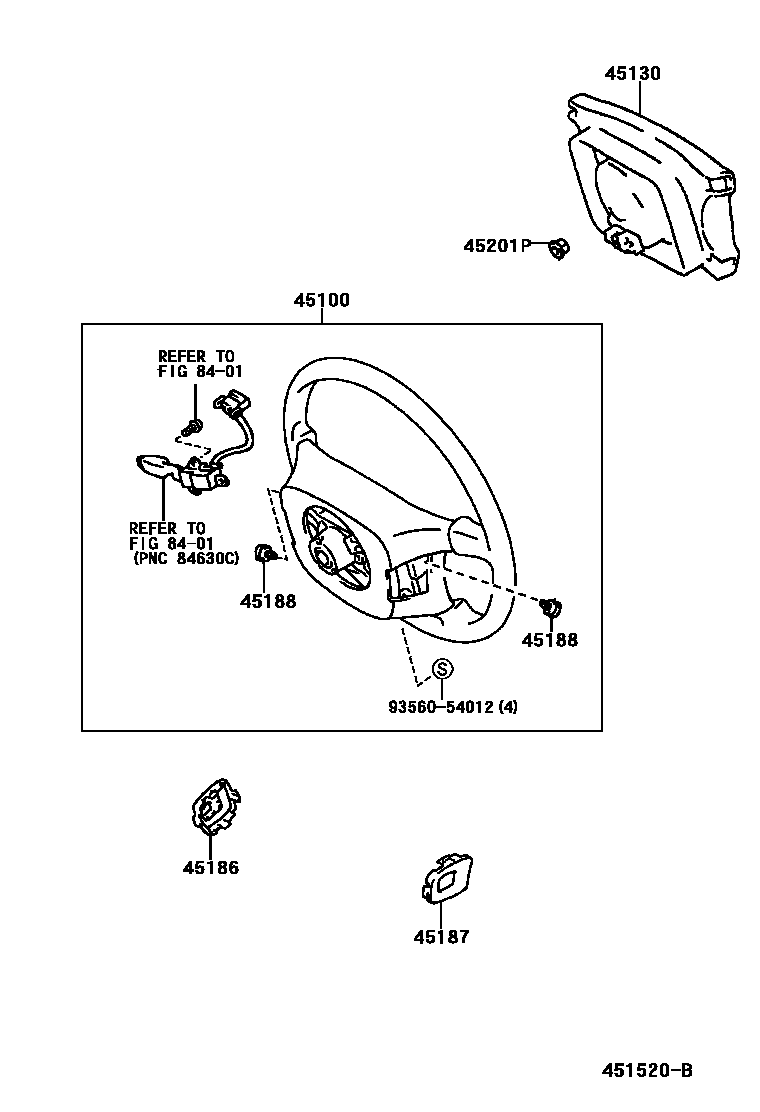

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-40120-C0iGZG50199810-199912

4-SPOKE,LEATHER,BLACK,TRIM1#

sub45100-40121

main45100-40120-E0iGZG50199810-199912

4-SPOKE,LEATHER,ORCHID BROWN,TRIM4#

sub45100-40121

main45100-40121-C0iGZG50199912-200601

4-SPOKE,LEATHER,BLACK,TRIM1#

sub45100-40121

main45100-40121-C1iGZG50200601-201701

4-SPOKE,LEATHER,BLACK,TRIM10

sub45100-40121

main45100-40121-E0iGZG50199912-200601

4-SPOKE,LEATHER,ORCHID BROWN,TRIM4#

sub45100-40121

main45100-40121-E1iGZG50200601-201701

4-SPOKE,LEATHER,ORCHID BROWN,TRIM40

sub45100-40121

45130BUTTON ASSY, HORN

main45130-40060-C0iGZG50199810-201701

BLACK,TRIM1#

sub45130-40060

main45130-40060-E0iGZG50199810-201701

ORCHID BROWN,TRIM4#

sub45130-40060

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-50030-C0iGZG50199810-201701

BLACK,TRIM1#

sub45186-50030

main45186-50030-E2iGZG50199810-201701

ORCHID BROWN,TRIM4#

sub45186-50030

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-50030-C0iGZG50199810-201701

BLACK,TRIM1#

sub45187-50030

main45187-50030-E2iGZG50199810-201701

ORCHID BROWN,TRIM4#

sub45187-50030

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60011iGZG50199810

L=15.5

45201PNUT, STEERING WHEEL SET

main90179-12071iGZG50199810

8401

9356054012

main93560-54012

8 parts on this diagram · 1 diagram in section
