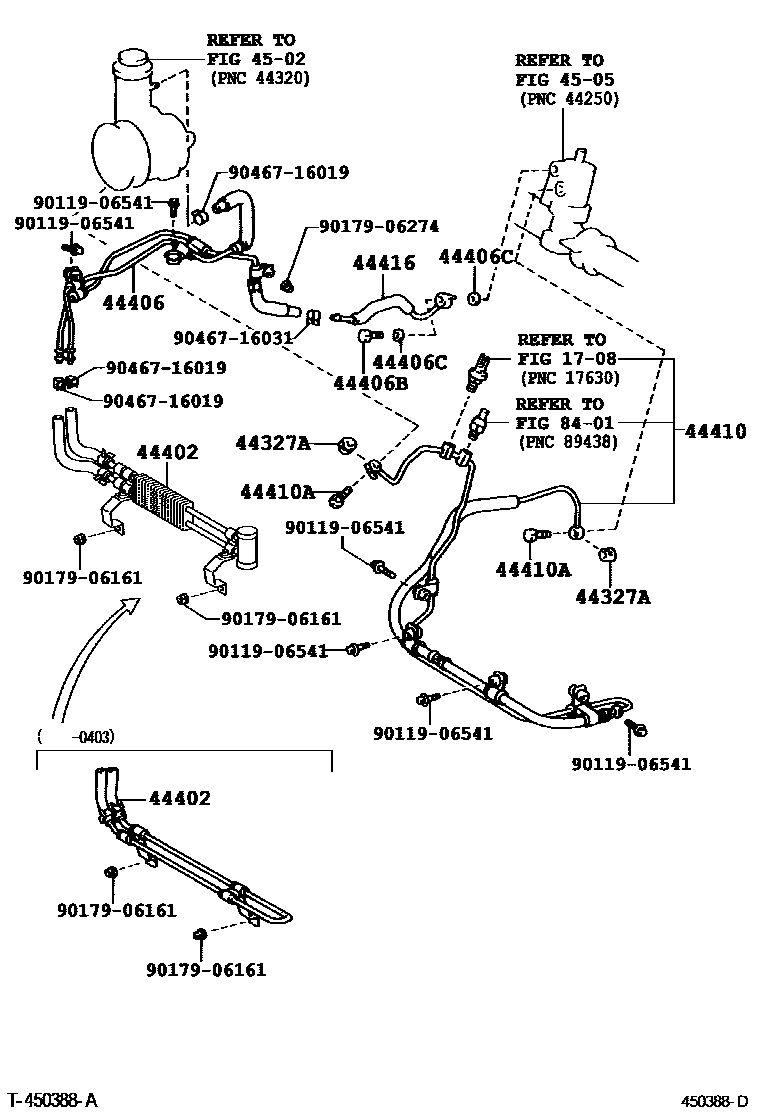

POWER STEERING TUBE
1708
44327AGASKET, PRESSURE PORT, NO.1
44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44406TUBE SUB-ASSY, RETURN
NO.1
NO.2
NO.3
44406BBOLT, UNION(FOR RETURN TUBE)
44406CGASKET(FOR RETURN TUBE)
44410TUBE ASSY, PRESSURE FEED
44410ABOLT, UNION(FOR PRESSURE FEED TUBE)
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
4502
4505
8401
9011906541
9017906161
9017906274
9046716019
9046716031
17 parts on this diagram · 2 diagrams in section
