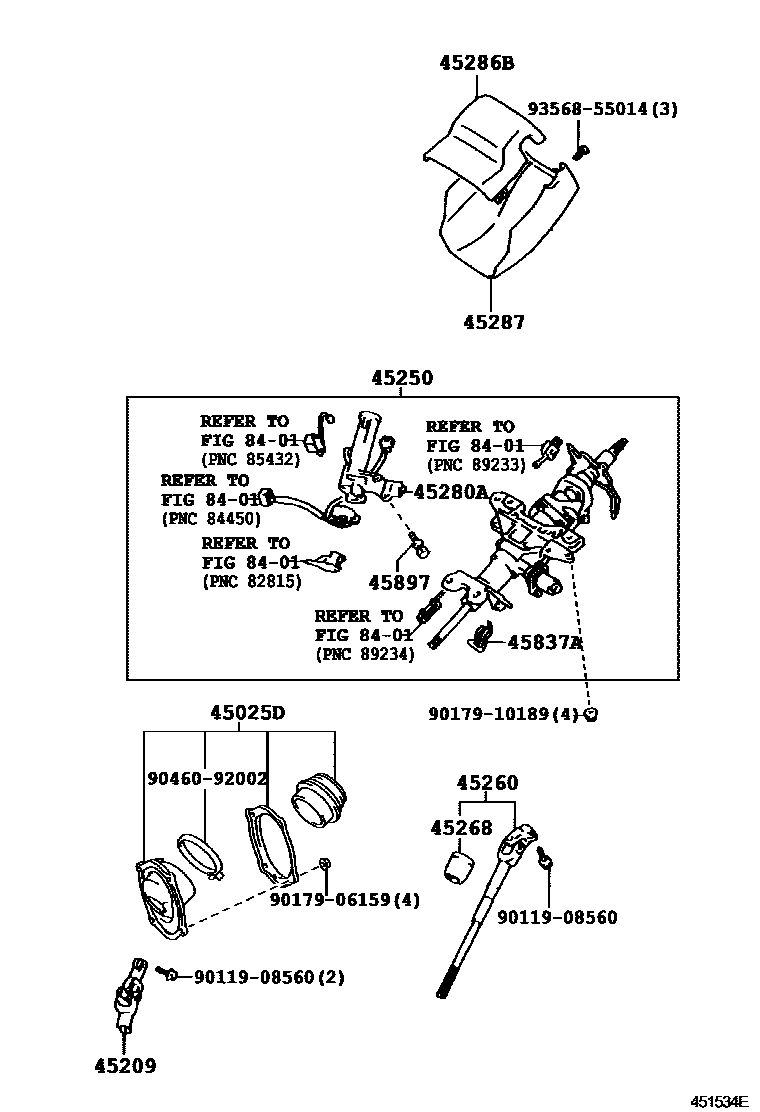

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-40050iGZG50..RHD199810

main45025-40060iGZG50..LHD199810

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-50010iGZG50199810

45250COLUMN ASSY, STEERING

main45250-40260iGZG50199810

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-40010iGZG50199810

45268COVER, STEERING INTER SHAFT DUST SEAL

main45268-40020iGZG50199810

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-30590iGZG50199810

45286BCOVER, STEERING COLUMN, UPR

main45286-40080-C0iGZG50199810-201701

BLACK,TRIM1#

main45286-40080-E0iGZG50199810-201701

ORCHID BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-40080-C0iGZG50199810-201701

BLACK,TRIM1#

main45287-40080-E0iGZG50199810-201701

ORCHID BROWN,TRIM4#

45837ABRACKET, STEERLNG LOWER TUBE, NO.1

main45837-50010iGZG50199810

45897BOLT, STEERING LOCK SET

main45897-12020iGZG50199810

8401

9011908560

main90119-08560

9017906159

main90179-06159

9017910189

main90179-10189

9046092002

main90460-92002

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
