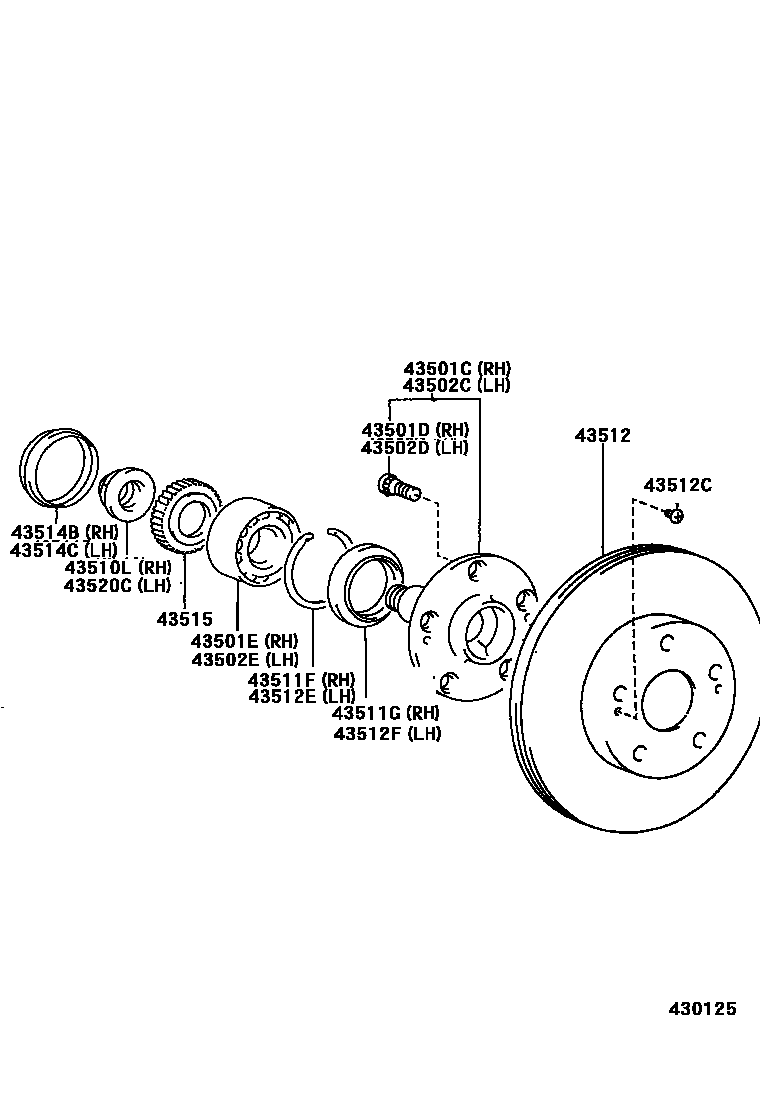

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-50021iGZG50199810-201503

sub43502-50022

main43502-50022iGZG50201504

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iGZG50201504

main90942-02070iGZG50199810-201503

sub90942-02049

43501EBEARING (FOR FRONT AXLE HUB RH)

main90903-63011iGZG50199810

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-50021iGZG50199810-201503

sub43502-50022

main43502-50022iGZG50201504

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iGZG50201504

main90942-02070iGZG50199810-201503

sub90942-02049

43502EBEARING (FOR FRONT AXLE HUB LH)

main90903-63011iGZG50199810

43510LNUT (FOR STEERING KNUCKLE RH)

main90179-24005iGZG50199810

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001iGZG50199810

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90311-50016iGZG50199810

43512DISC, FRONT

main43512-50152iGZG50199810-201701

43512CSCREW (FOR FRONT DISC)

main90155-60002iGZG50199810-201701

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001iGZG50199810

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90311-50016iGZG50199810

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-50010iGZG50199810

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-50010iGZG50199810

43515ROTOR, SKID CONTROL, FRONT

main43515-50010iGZG50199810-201701

43520CNUT (FOR STEERING KNUCKLE LH)

main90179-24005iGZG50199810

17 parts on this diagram · 1 diagram in section
