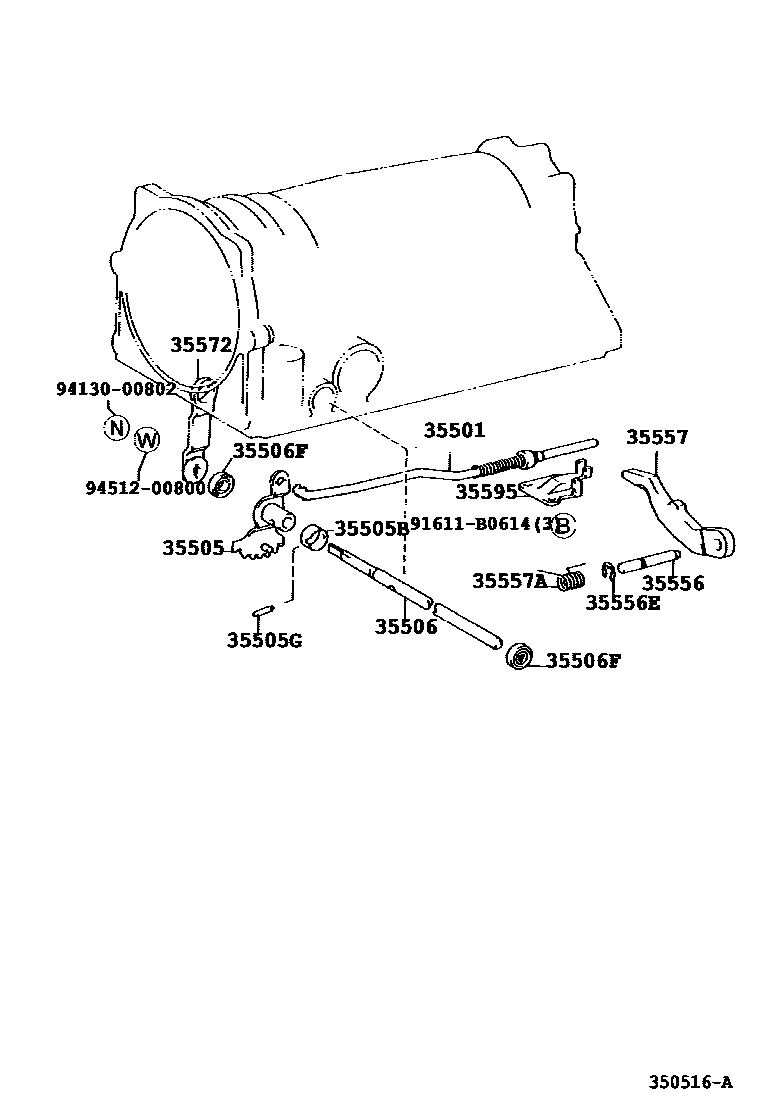

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-60010iGZG50199810

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50020iGZG50199810

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iGZG50199810-200302

main90560-20025iGZG50200302

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iGZG50199810

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-30070iGZG50199810

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGZG50199810

35556SHAFT, PARKING LOCK PAWL

main35556-30020iGZG50199810

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGZG50199810

35557PAWL, PARKING LOCK

main35557-60020iGZG50199810

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iGZG50199810

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-50020iGZG50199810

35595BRACKET, PARKING LOCK PAWL

main35595-60010iGZG50199810

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
