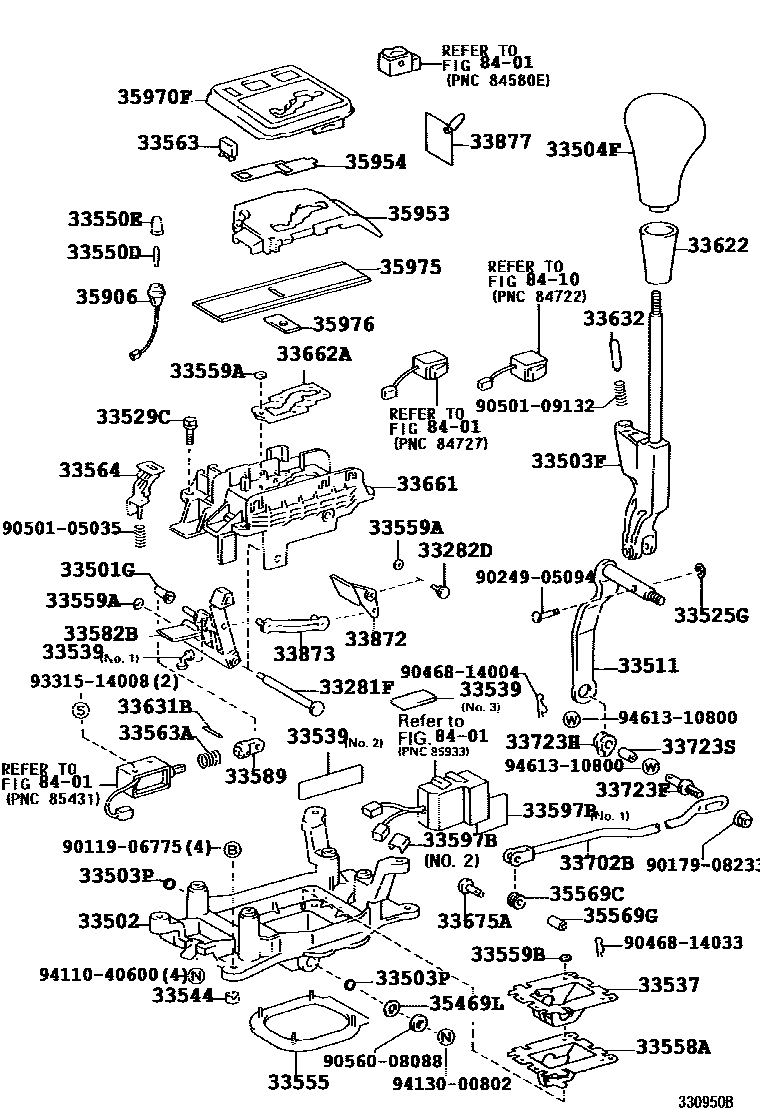

SHIFT LEVER & RETAINER

0001 1 0002 1

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-50010iGZG50199810

33282DPIN, LEVER LOCK, NO.2

main33282-50010iGZG50199810

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-03001iGZG50199810

33502PLATE SUB-ASSY, SHIFT LEVER

main33521-50030iGZG50199810

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-40010iGZG50..RHD199810

main33055-40020iGZG50..LHD199810

33503PRING, O(FOR SHIFT LEVER)

main96711-24014iGZG50199810

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-50040-C0iGZG50199810-201701

BLACK,TRIM1#

sub33542-50040

main33542-50040-E1iGZG50199810-201701

ORCHID BROWN,TRIM4#

sub33542-50040

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33501-50010iGZG50..RHD199810

main33501-50020iGZG50..LHD199810

33525GRING, SHIFT LEVER

main33525-50010iGZG50199810

33529CBOLT, SHIFT LEVER

main33529-50010iGZG50199810

33537PLATE, CONTROL LEVER

main33537-50010iGZG50199810

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-14010iGZG50199810

NO.1

main33539-50010iGZG50199810

NO.2

main33539-50020iGZG50199810

NO.3

33544INSERT, SHIFT LEVER, NO.1

main33544-50010iGZG50199810

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iGZG50199810

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04053iGZG50199810

33555BOOT, SHIFT LEVER

main33555-50020iGZG50199810

33558ASEAL, SHIFT LEVER BOOT DUST, NO.1

main33558-50020iGZG50199810

33559ANUT, SHIFT LEVER, NO.1

main33559-50010iGZG50199810

33559BNUT, SHIFT LEVER, NO.2

main33559-50010iGZG50199810

33563BUTTON, SHIFT LOCK RELEASE

main33563-50050iGZG50199810

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-06086iGZG50199810

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-50030iGZG50199810

33582BSTOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT)

main33582-50030iGZG50..RHD199810

main33582-50040iGZG50..LHD199810

33589LINK, SHIFT LOCK SOLENOID

main33589-20030iGZG50199810

33597BSEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT)

main33597-50010iGZG50199810

NO.1

main33597-50020iGZG50199810

NO.2

33622COVER, SHIFT LEVER KNOB, NO.1

main33622-50060iGZG50199810

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90254-02004iGZG50199810

33632ROD, DETENT, NO.2

main33632-50010iGZG50199810

33661HOUSING, SHIFT LEVER GUIDE

main33661-40010iGZG50..LHD199810

main33661-50030iGZG50..RHD199810

33662ACUSHION, SHIFT LEVER GUIDE

main33662-50010iGZG50..RHD199810

main33662-50020iGZG50..LHD199810

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iGZG50199810

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-40030iGZG50199810

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-50010iGZG50199810

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main33572-22010iGZG50199810

33723SBUSH (FOR CONNECTING ROD SWIVEL)

main90389-08005iGZG50199810

33872LINK, SHIFT LOCK RELEASE, NO.2

main33872-50010iGZG50..RHD199810

main33872-50020iGZG50..LHD199810

33873LINK, SHIFT LOCK RELEASE, NO.3

main33873-50011iGZG50199810

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030iGZG50199810

35469LSPACER, SHIFT LEVER

main35469-50010iGZG50199810

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17023iGZG50199810-201701

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iGZG50199810-201701

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-50030iGZG50199810

35953GUIDE, POSITION INDICATOR LIGHT

main35953-40010iGZG50..RHD199810

main35953-40020iGZG50..LHD199810

35954SHEET, POSITION INDICATOR

main35954-40010iGZG50..RHD199810

main35954-40020iGZG50..LHD199810

35970FHOUSING ASSY, POSITION INDICATOR

main35970-40020iGZG50..LHD199810

main35970-40030iGZG50..RHD199810

main35970-40040iGZG50..RHD200112

HONG KONG SPEC

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-50020iGZG50199810

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-50010iGZG50199810

8401

8410

9011906775

main90119-06775

9017908233

main90179-08233

9024905094

main90249-05094

9046814004

main90468-14004

9046814033

main90468-14033

9050105035

main90501-05035

9050109132

main90501-09132

9056008088

main90560-08088

9331514008

main93315-14008

9411040600

main94110-40600

9413000802

main94130-00802

9461310800

main94613-10800

61 parts on this diagram · 2 diagrams in section
