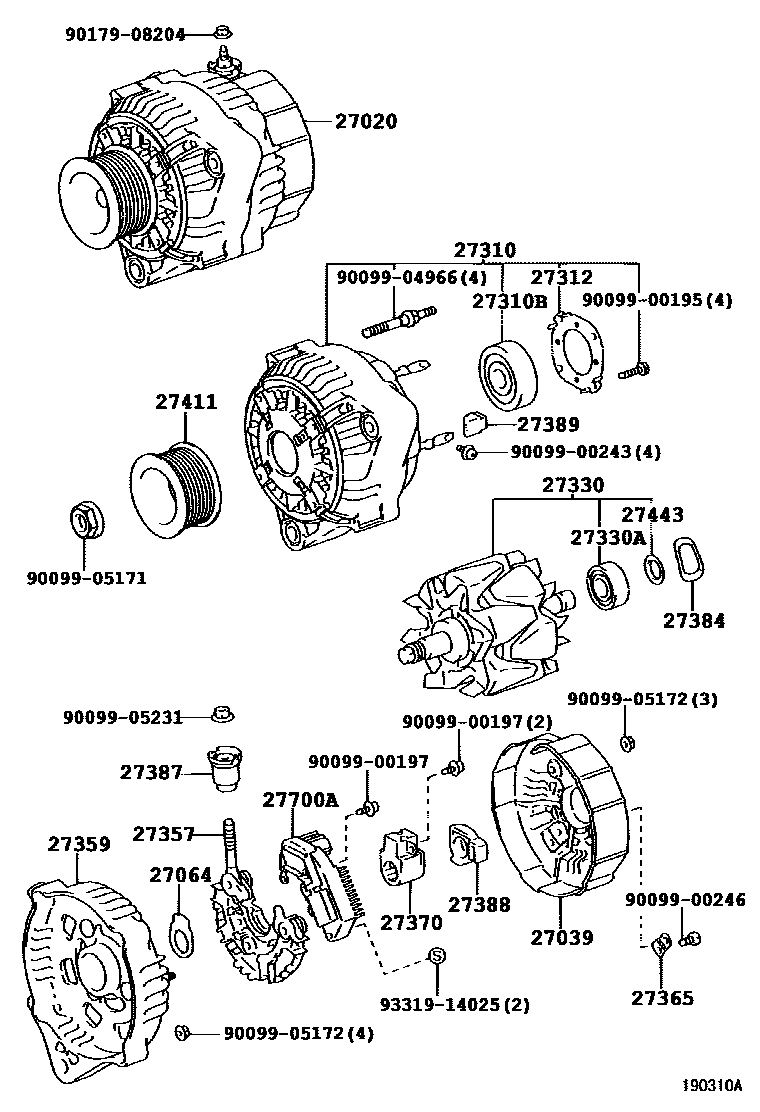

ALTERNATOR
27020ALTERNATOR ASSY
12V 120A
12V 130A
27064SEAL, ALTERNATOR PLATE
NO.2
NO.1
27310FRAME ASSY, DRIVE END, ALTERNATOR
12V 120A
12V 130A
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
12V 120A
12V 130A
12V 120A
27312PLATE, RETAINER
12V 120A
12V 130A
27330ABEARING(FOR ALTERNATOR ROTOR)
12V 130A
12V 120A
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27365PLATE, TERMINAL
27370HOLDER ASSY, ALTERNATOR BRUSH
12V 130A
12V 120A
27384WASHER
27387INSULATOR, TERMINAL
12V 120A
12V 130A
27388COVER, ALTERNATOR BRUSH
27389INSULATOR, TERMINAL
27411PULLEY, ALTERNATOR
12V 120A
12V 130A
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
9009900195
main90099-00195
9009900197
main90099-00197
9009900243
main90099-00243
9009900246
main90099-00246
9009904966
main90099-04966
9009905171
main90099-05171
9009905172
main90099-05172
9009905231
main90099-05231
9017908204
main90179-08204
9331914025
main93319-14025
29 parts on this diagram · 2 diagrams in section
