OIL FILTER

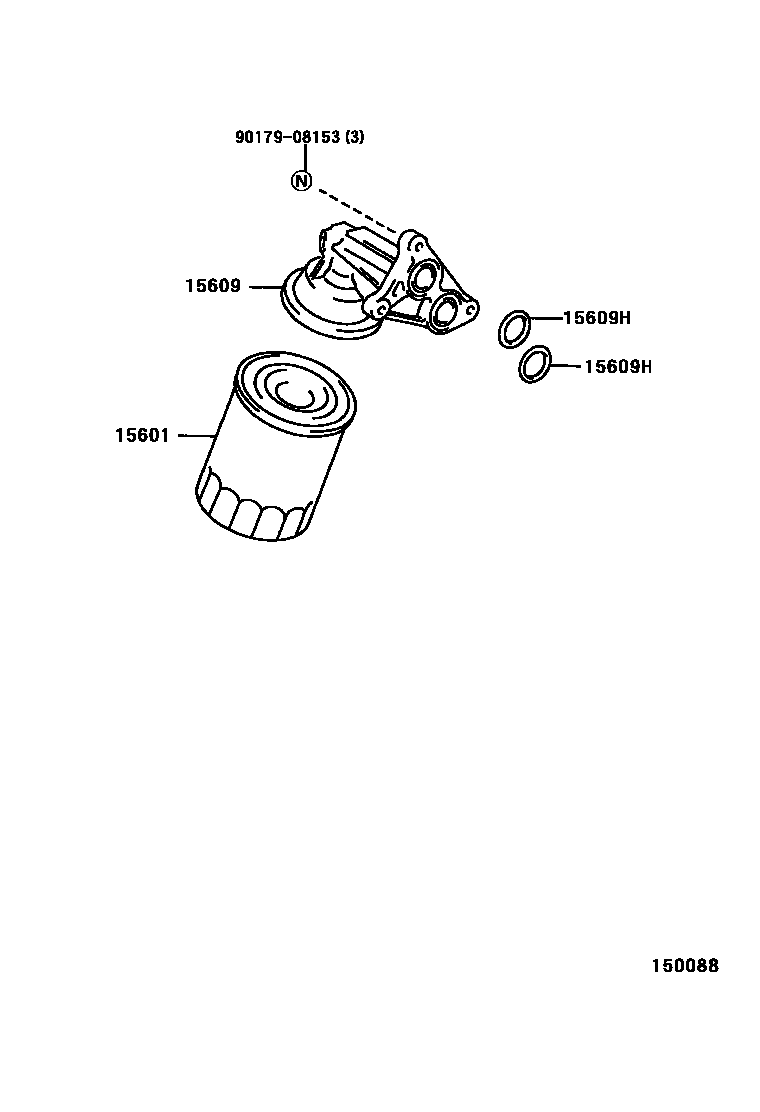

Parts diagram

15601FILTER SUB-ASSY, OIL

main15601-68010i199810

15609BRACKET SUB-ASSY, OIL FILTER

main15609-32010i199810

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-27009i199810

9017908153

main90179-08153

4 parts on this diagram · 1 diagram in section
