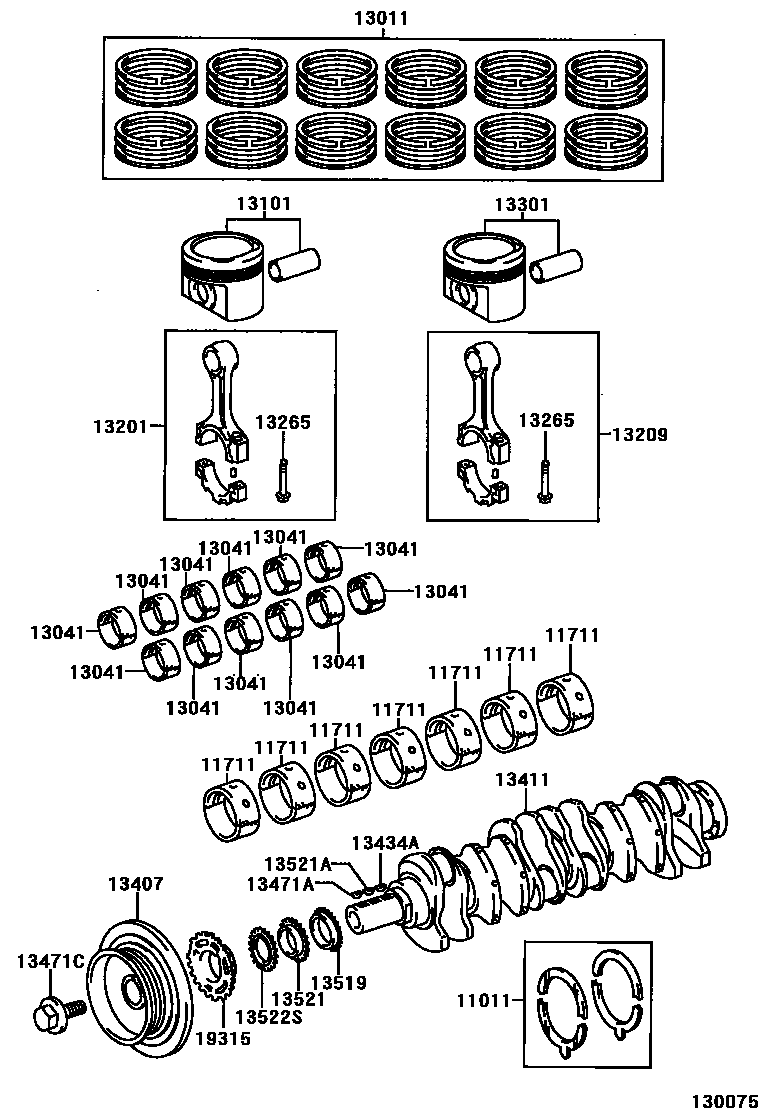

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
MARK UPPER A LOWER A,NO.2,3,4,5,6 JURNAL
MARKUPPER1LOWER1,NO.2,3,4,5,6 JURNAL
MARKUPPER1LOWER2,NO.2,3,4,5,6 JURNAL
MARK UPPER B LOWER B,NO.2,3,4,5,6 JURNAL
MARKUPPER2LOWER2,NO.2,3,4,5,6 JURNAL
MARKUPPER2LOWER3,NO.2,3,4,5,6 JURNAL
MARKUPPER3LOWER3,NO.2,3,4,5,6 JURNAL
MARKUPPER3LOWER4,NO.2,3,4,5,6 JURNAL
MARKUPPER4LOWER4,NO.2,3,4,5,6 JURNAL
MARKUPPER4LOWER5,NO.2,3,4,5,6 JURNAL
MARKUPPER5LOWER5,NO.2,3,4,5,6 JURNAL
MARK UPPER 1 LOWER 1,NO.1 & 7 JURNAL
MARK UPPER 1 LOWER 2,NO.1 & 7 JURNAL
MARK UPPER 2 LOWER 2,NO.1 & 7 JURNAL
MARK UPPER 2 LOWER 3,NO.1 & 7 JURNAL
MARK UPPER 3 LOWER 3,NO.1 & 7 JURNAL
MARK UPPER 3 LOWER 4,NO.1 & 7 JURNAL
MARK UPPER 4 LOWER 4,NO.1 & 7 JURNAL
MARK UPPER 4 LOWER 5,NO.1 & 7 JURNAL
MARK UPPER 5 LOWER 5,NO.1 & 7 JURNAL
MARK UPPER 5 LOWER 6,NO.1 & 7 JURNAL
MARK UPPER 6 LOWER 6,NO.1 & 7 JURNAL
MARK UPPER A LOWER A,NO.1 & 7 JURNAL
MARK UPPER A LOWER 1,NO.1 & 7 JURNAL
13011RING SET, PISTON
STD
STD,EMBASSY SPEC
13041BEARING, CONNECTING ROD
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
13201ROD SUB-ASSY, CONNECTING
13209ROD SUB-ASSY, CONNECTING, LH
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13522SSPROCKET, CRANKSHAFT TIMING, LH
19315PLATE, CRANK ANGLE SENSOR, NO.1
19 parts on this diagram · 1 diagram in section
