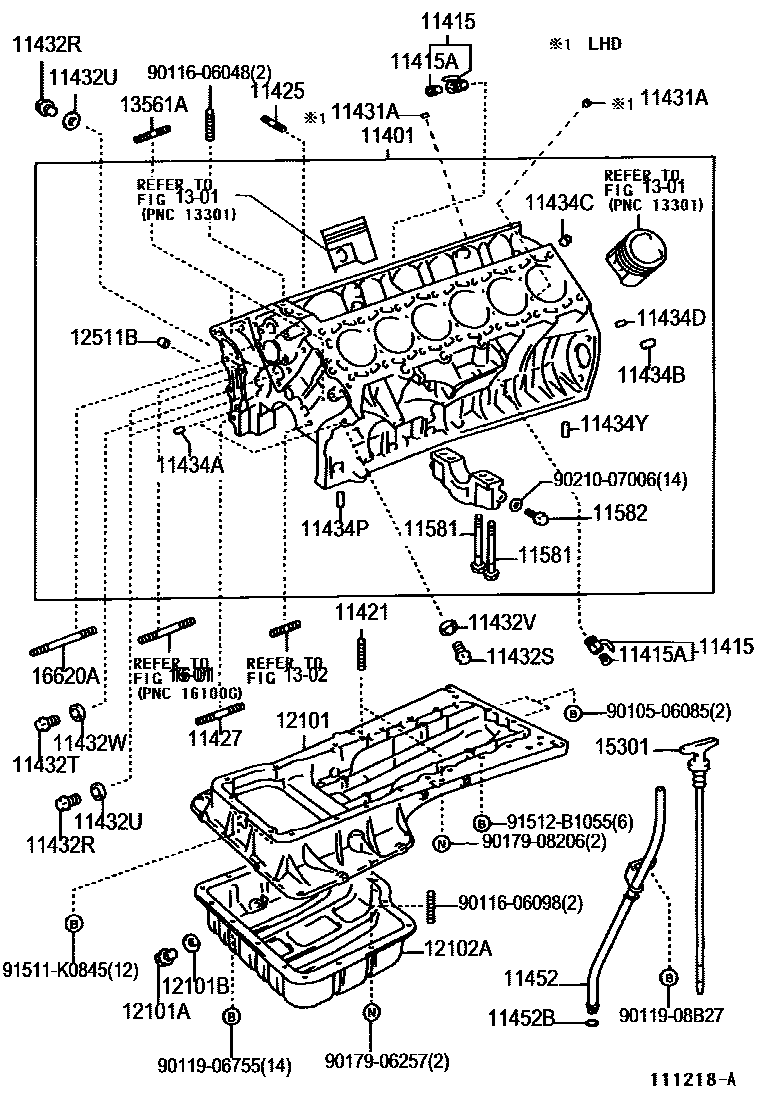

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
EMBASSY SPEC
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11421BOLT, STUD(FOR OIL PAN)
11425BOLT, STUD(FOR OIL FILTER)
11427BOLT, STUD(FOR TIMING CHAIN COVER SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
11432VGASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)
11432WGASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=20,OD=16
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
11434PPIN, STRAIGHT(FOR OIL PUMP SET)
L=14,OD=6
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11581BOLT, CRANKSHAFT BEARING CAP, NO.1
11582BOLT, CRANKSHAFT BEARING CAP, NO.2
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
12511BPIN, RING(FOR ALTERNATOR BRACKET)
1301
1302
13561ABOLT, STUD(FOR CHAIN DAMPER)
15301GAGE SUB-ASSY, OIL LEVEL
1601
16620ABOLT, STUD(FOR V-BELT TENSIONER)
9010506085
9011606048
9011606098
9011906755
9011908B27
9017906257
9017908206
9021007006
91511K0845
91512B1055
44 parts on this diagram · 1 diagram in section
