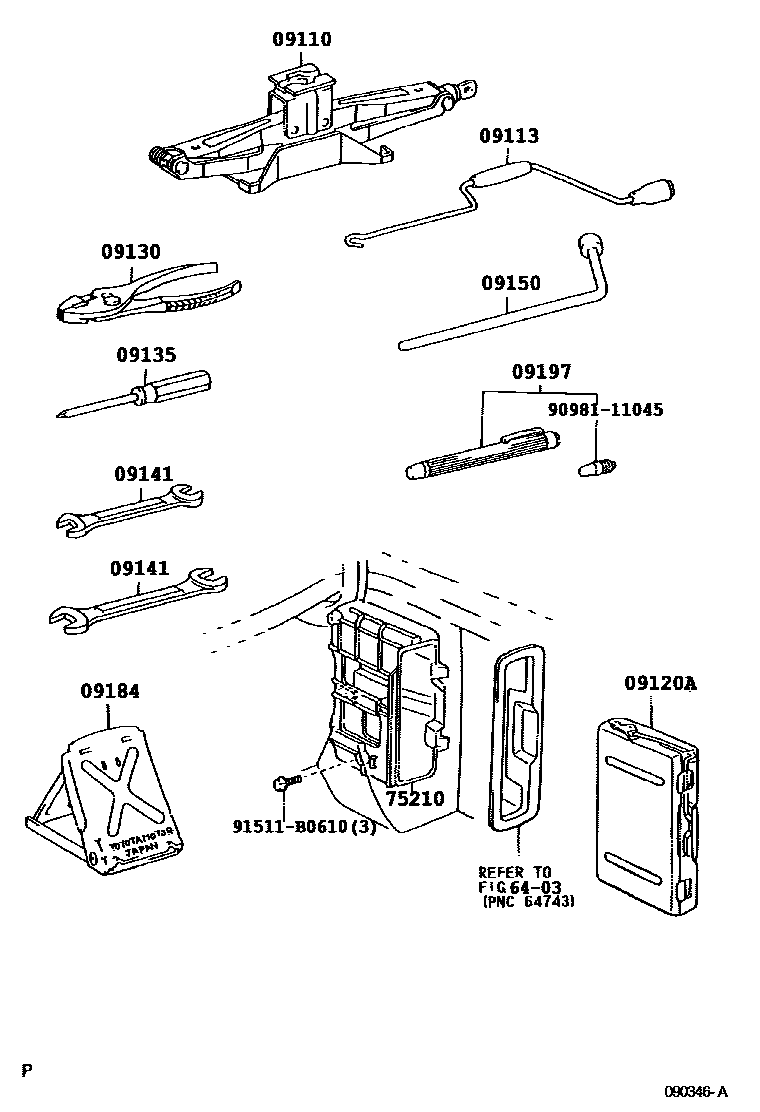

STANDARD TOOL

09110JACK ASSY

main09111-22060iGZG50199810

09113HANDLE, JACK

main09113-50010iGZG50199810

09120ACASE, TOOL

main09120-50040-C0iGZG50199810-201701

BLACK,TRIM1#,4#

09130PLIERS

main09130-50030iGZG50199810

09135DRIVER, SCREW

main09135-50040iGZG50199810

09141SPANNER

main09141-50050iGZG50199810

8 X 10

main09141-50060iGZG50199810

12 X 14

09150WRENCH, HUB NUT BOX

main09150-48010iGZG50200910-201701

main09150-50010iGZG50199810-200909

sub09150-53010

09184STOPPER, WHEEL

main09184-50010iGZG50199810-201701

09197LIGHT, PEN

main09197-50030iGZG50199810

6403

75210BOX ASSY, TOOL

main75210-50020iGZG50199810

9098111045

main90981-11045

91511B0610

main91511-B0610

13 parts on this diagram · 1 diagram in section
