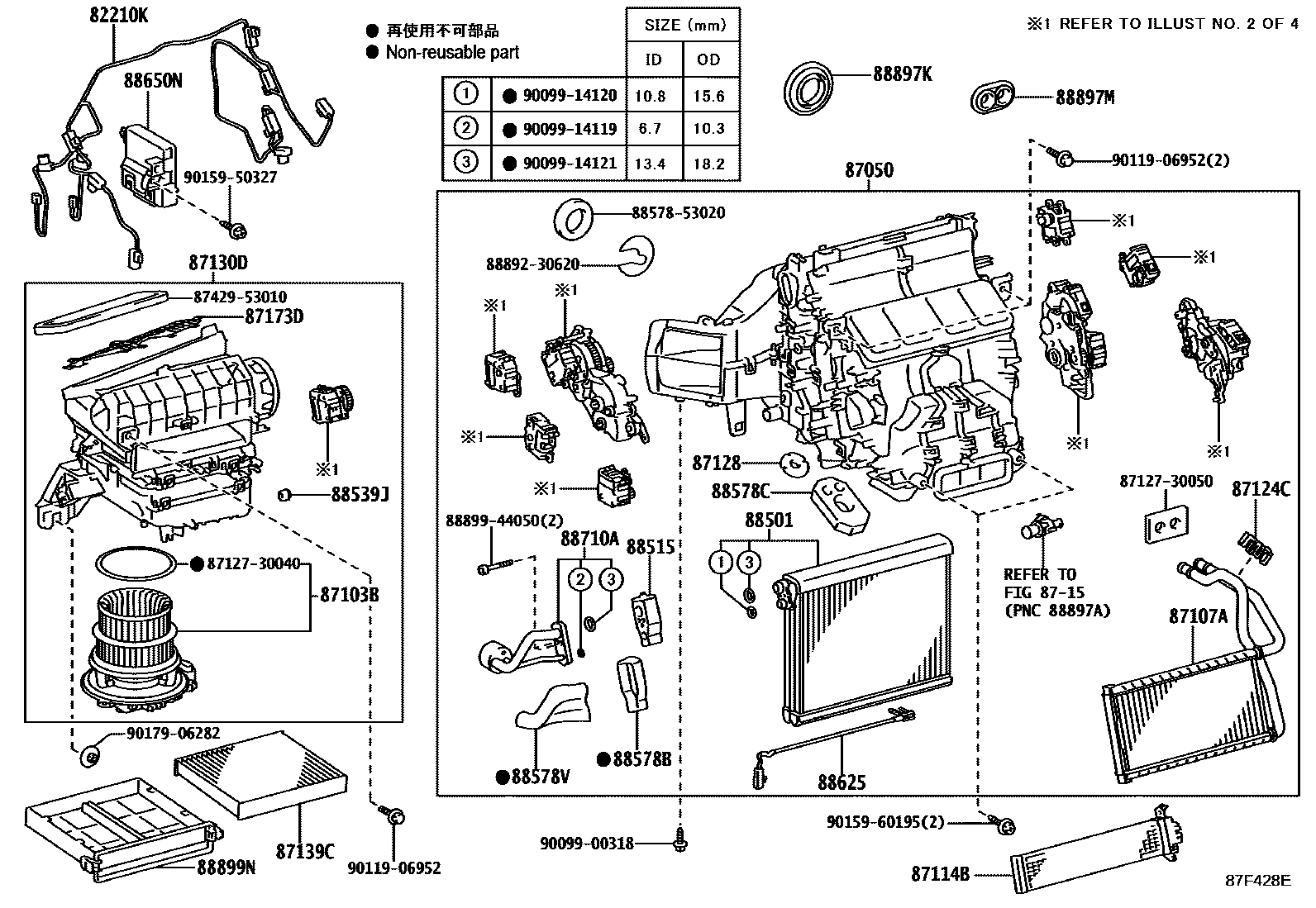

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-30130iURL10..RHD201510-201804

main82212-30100supersedes 82212-30110iURL10..LHD201510-201804

RUSSIA SPEC

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30720iURL10..RHD201510-201609

main87050-30721iURL10..RHD201610-201804

main87050-30630supersedes 87050-30691iURL10..LHD201510-201609

RUSSIA SPEC

main87050-30631supersedes 87050-30691iURL10..LHD201610-201804

RUSSIA SPEC

main87050-30640supersedes 87050-30691iURL10..LHD201510-201609

UKRAINE SPEC&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

main87050-30641supersedes 87050-30691iURL10..LHD201610-201709

UKRAINE SPEC&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-30471iURL10..LHD201510-201804

main87103-30481iURL10..RHD201510-201804

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30580iURL10201510-201804

87114BCOVER, HEATER

main87114-30010iURL10201510-201804

87124CCLAMP, HEATER

main87124-33070iURL10..LHD201510-201804

87128GROMMET, HEATER

main87128-30050iURL10201510-201804

87130DBLOWER ASSY

main87130-30802iURL10..RHD201510-201607

main87130-30830iURL10..RHD201607-201804

87139CFILTER, CLEAN AIR

main87139-30100iURL10201510-201804

DEODORANT FILTER

8715

87173DPROTECTOR HEATER

main87173-53010iURL10..RHD201510-201804

main87173-53020iURL10..LHD201510-201804

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A210iURL10201510-201804

main88501-3A190iURL10..LHD201510-201709

UKRAINE SPEC&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

88515VALVE, COOLER EXPANSION

main88515-30790iURL10201510-201804

main88515-30780iURL10..LHD201510-201709

UKRAINE SPEC&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

88539JHOSE, DRAIN COOLER

main88539-30A00iURL10201510-201804

88578BPACKING, COOLING UNIT, NO.1

main88578-3A010iURL10201510-201804

88578CPACKING, COOLING UNIT, NO.2

main88578-52131iURL10201510-201804

88578VPACKING, COOLING UNIT, NO.3

main88578-30890iURL10201510-201804

88625THERMISTOR, COOLER, NO.1

main88620-30050iURL10201510-201804

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-3AE70supersedes 88650-3AE80iURL10..RHD201510-201608

PRE-COLLISION SYSTEM-WITH(GSP)

main88650-3AE90iURL10..RHD201510-201609

PRE-COLLISION SYSTEM-WITH(GSP)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

main88650-3AF00supersedes 88650-3AE80iURL10..RHD201510-201608

SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)

main88650-3AJ80supersedes 88650-3AK30iURL10..LHD201510-201608

RUSSIA SPEC&WINDSHIELD DEICER-WITH

main88650-3AJ90supersedes 88650-3AK30iURL10..LHD201510-201608

RUSSIA SPEC

main88650-3AK00supersedes 88650-3AK30iURL10..LHD201510-201608

UKRAINE SPEC&WINDSHIELD DEICER-WITH&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)

main88650-3AK10supersedes 88650-3AK30iURL10..LHD201510-201608

UKRAINE SPEC&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

main88650-3AK20supersedes 88650-3AK30iURL10..LHD201510-201608

WINDSHIELD DEICER-WITH

main88650-3AK40supersedes 88650-3AK30iURL10..LHD201510-201608

WINDSHIELD DEICER-WITH&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)

main88650-3AK50supersedes 88650-3AK30iURL10..LHD201510-201608

SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)

main88650-3AU10iURL10..LHD201609-201709

UKRAINE SPEC&WINDSHIELD DEICER-WITH

main88650-3AU20iURL10..LHD201609-201709

RUSSIA SPEC

main88650-3AU30supersedes 88650-3AU60iURL10..LHD201609-201804

RUSSIA SPEC&WINDSHIELD DEICER-WITH&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)

main88650-3AU40iURL10..LHD201609-201709

UKRAINE SPEC&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

main88650-3AU50supersedes 88650-3AU60iURL10..LHD201609-201804

WINDSHIELD DEICER-WITH

main88650-3AU70supersedes 88650-3AU60iURL10..LHD201609-201804

WINDSHIELD DEICER-WITH&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)

main88650-3AU80supersedes 88650-3AU60iURL10..LHD201609-201804

SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)

main88650-3AV60supersedes 88650-3AV70iURL10..RHD201609-201804

PRE-COLLISION SYSTEM-WITH(GSP)

main88650-3AV80supersedes 88650-3AV70iURL10..RHD201609-201804

PRE-COLLISION SYSTEM-WITH(GSP)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

main88650-3AV90supersedes 88650-3AV70iURL10..RHD201609-201804

SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A410iURL10201510-201804

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iURL10201803-201804

main88897-35030iURL10201510-201803

88897MGROMMET (FOR HEATER PIPE)

main87128-30060iURL10201510-201804

88899NPLATE, COVER

main88899-3A090iURL10201510-201804

8712730040PACKING, HEATER AIR DAMPER

main87127-30040

8712730050PACKING, HEATER AIR DAMPER

main87127-30050

8742953010PIPE, COMBUSTION HEATER OUTLET

main87429-53010

8857853020PAKING, COOLER AIR DUCT

main88578-53020

8889230620BRACKET, COOLER EVAPORATOR MOUNTING

main88892-30620

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015950327

main90159-50327

9015960195

main90159-60195

9017906282

main90179-06282

37 parts on this diagram · 4 diagrams in section
