MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WP60iURL10201510-201804

PRE-COLLISION SYSTEM-WITH(GSP)

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-48020iURL10201510-201804

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-30E80iURL10..LHD201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

main87908-30F00iURL10..RHD201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-30F70iURL10..LHD201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

main87909-30F90iURL10..RHD201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30E80iURL10..LHD201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

main87910-30F00iURL10..RHD201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-30E40iURL10..LHD201510-201804

main8791A-30E70iURL10..RHD201510-201804

87931OUTER MIRROR, RH

main87931-50740iURL10201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30F70iURL10..LHD201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

main87940-30F90iURL10..RHD201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-30F30iURL10..LHD201510-201804

main8794A-30F60iURL10..RHD201510-201804

87961MIRROR OUTER, LH

main87961-33B50iURL10201510-201804

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

9017906146

main90179-06146

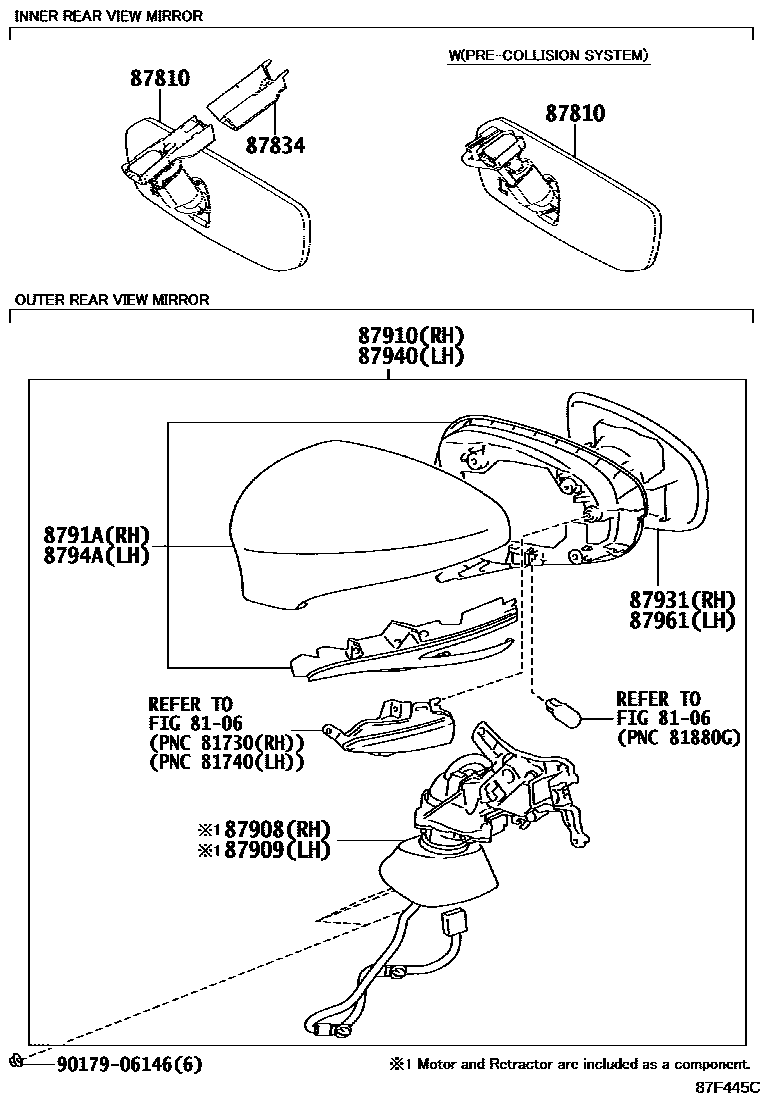

12 parts on this diagram · 1 diagram in section
