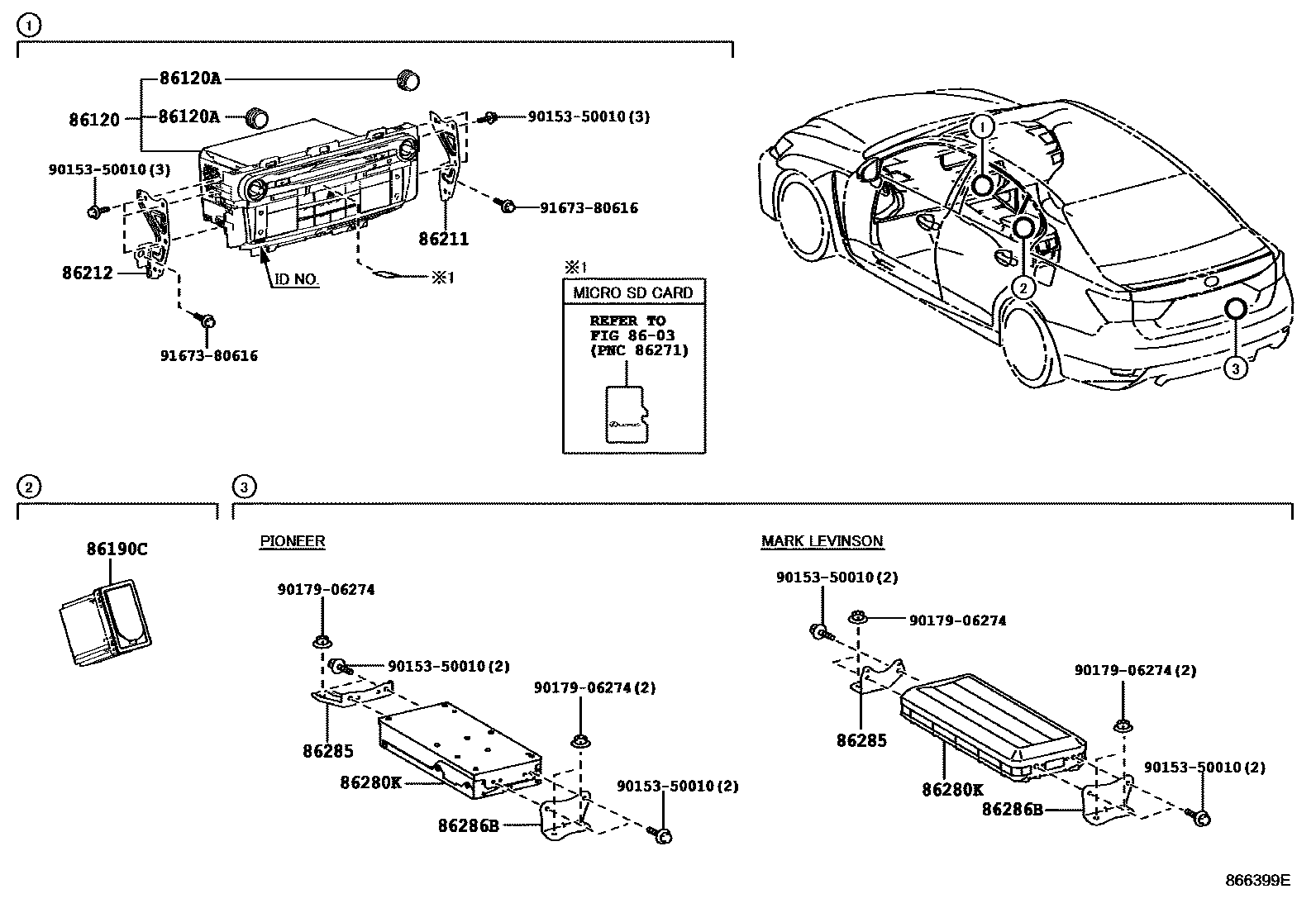

RADIO RECEIVER & AMPLIFIER & CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86130-30G30i201510-201609

PIONEER,ID=P11166

main86130-30G60i201510-201609

PIONEER,ID=P11164

main86130-30G90i201510-201609

PIONEER,ID=P11171,UKRAINE SPEC

main86130-30G90i201510-201609

PIONEER,ID=P11171,RUSSIA SPEC

main86130-30N20i201609-201804

PIONEER,ID=P11499

main86130-30N50i201609-201804

PIONEER,ID=P11497

main86130-30N80i201609-201709

PIONEER,ID=P11504,UKRAINE SPEC

main86804-30F50i201510-201609

PIONEER,ID=P11153,IRELAND SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30F50i201510-201609

PIONEER,ID=P11153,UNITED KINGDOM SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30F50i201510-201609

PIONEER,ID=P11153,CYPRUS SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30F60i201510-201609

PIONEER,ID=P11141,UNITED KINGDOM SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30F60i201510-201609

PIONEER,ID=P11141,CYPRUS SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATIONSYSTEM-12.3INCH DISPLAY

main86804-30F60i201510-201609

PIONEER,ID=P11141,IRELAND SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30F70i201510-201609

PIONEER,ID=P11138,EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30F80i201510-201609

PIONEER,ID=P11140,AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30F90i201510-201609

PIONEER,ID=P11156,UKRAINE SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30F90i201510-201609

PIONEER,ID=P11156,RUSSIA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30G00i201510-201609

PIONEER,ID=P11151,UKRAINE SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30G00i201510-201609

PIONEER,ID=P11151,RUSSIA SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATIONSYSTEM-12.3INCH DISPLAY

main86804-30L60i201609-201804

PIONEER,ID=P11485,CYPRUS SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30L60i201609-201804

PIONEER,ID=P11485,IRELAND SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30L60i201609-201804

PIONEER,ID=P11485,UNITED KINGDOM SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30L70i201609-201804

PIONEER,ID=P11474,CYPRUS SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATIONSYSTEM-12.3INCH DISPLAY

main86804-30L70i201609-201804

PIONEER,ID=P11474,IRELAND SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30L70i201609-201804

PIONEER,ID=P11474,UNITED KINGDOM SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30L80i201609-201804

PIONEER,ID=P11469,EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30L90i201609-201804

PIONEER,ID=P11472,AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30M00i201609-201709

PIONEER,ID=P11488,UKRAINE SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30M10i201609-201709

PIONEER,ID=P11483,UKRAINE SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30M10i201609-201804

PIONEER,ID=P11483,RUSSIA SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATIONSYSTEM-12.3INCH DISPLAY

main86804-30P10i201609-201804

PIONEER,ID=P11468,TURKEY SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86804-30P20i201609-201804

PIONEER,ID=P11466,TURKEY SPEC&AUDIO-17SPEAKER & *MAR & NAVIGATION&EMV & NAVIGATIONSYSTEM-12.3INCH DISPLAY

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22083i201510-201804

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-53051i201510-201804

86211BRACKET, RADIO, NO.1

main86211-30390i201510-201804

86212BRACKET, RADIO, NO.2

main86212-30350i201510-201804

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-0WE30i201510-201706

AUDIO-17SPEAKER & *MAR & NAVIGATION

sub86280-0WE31

main86280-0WE31i201707-201804

AUDIO-17SPEAKER & *MAR & NAVIGATION

sub86280-30800

main86280-30680i201510-201710

sub86280-30681

main86280-30681i201711-201804

86285BRACKET, AMPLIFIER, NO.1

main86285-30370i201510-201804

main86285-30380i201510-201804

AUDIO-17SPEAKER & *MAR & NAVIGATION

86286BBRACKET, AMPLIFIER, NO.2

main86286-30100i201510-201804

9015350010

main90153-50010

9017906274

main90179-06274

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
