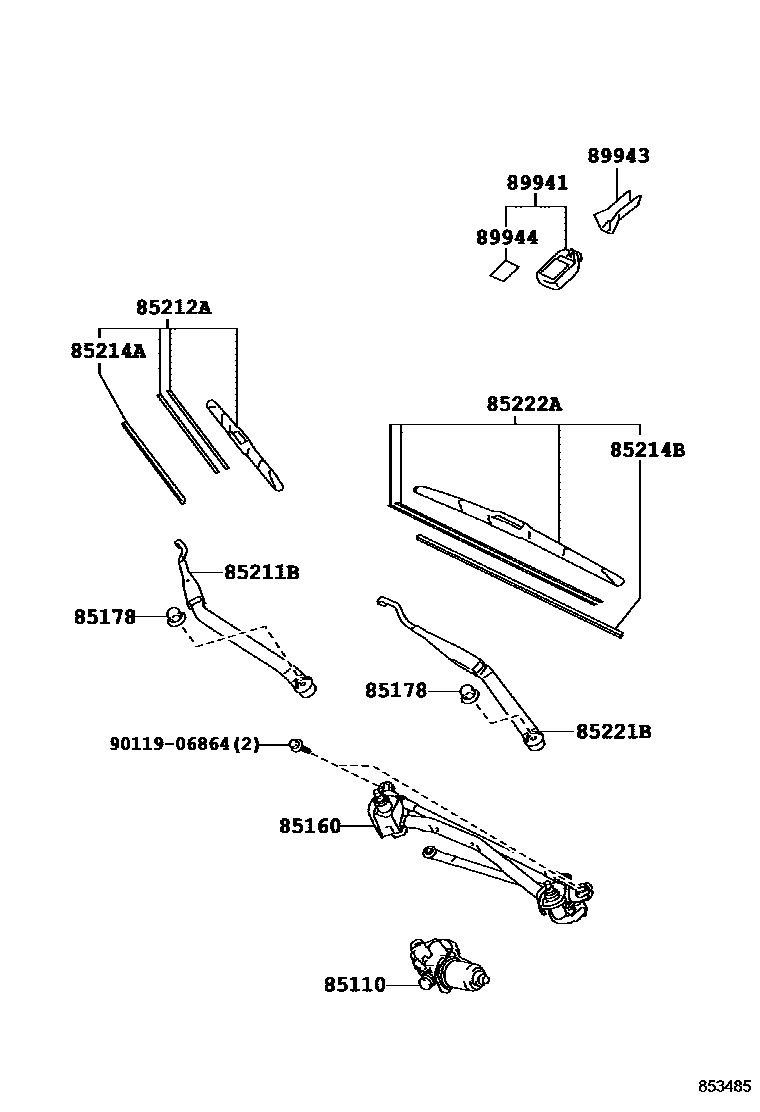

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30700iURL10..LHD201510-201804

main85110-30710iURL10..RHD201510-201804

85160LINK ASSY, WINDSHIELD WIPER

main85150-30740iURL10..LHD201510-201804

main85150-30750iURL10..RHD201510-201804

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iURL10201510-201804

85211BARM, FRONT WIPER, RH

main85211-30790iURL10..LHD201510-201804

main85211-30810iURL10..RHD201510-201804

85212ABLADE, FR WIPER, RH

main85212-30470iURL10..RHD201510-201804

main85212-30480iURL10..LHD201510-201804

85214ARUBBER, WIPER, RH

main85214-33180iURL10..LHD201510-201804

main85214-52110iURL10..RHD201510-201804

85214BRUBBER, WIPER, LH

main85214-33180iURL10..RHD201510-201804

main85214-52110iURL10..LHD201510-201804

85221BARM, FRONT WIPER, LH

main85221-30690iURL10..LHD201510-201804

main85221-30700iURL10..RHD201510-201804

85222ABLADE, FR WIPER, LH

main85222-30650iURL10..LHD201510-201804

main85222-30660iURL10..RHD201510-201804

89941SENSOR, RAIN

main89941-52010iURL10201510-201804

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-33050iURL10201510-201804

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42010iURL10201510-201804

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

9011906864

main90119-06864

13 parts on this diagram · 2 diagrams in section
