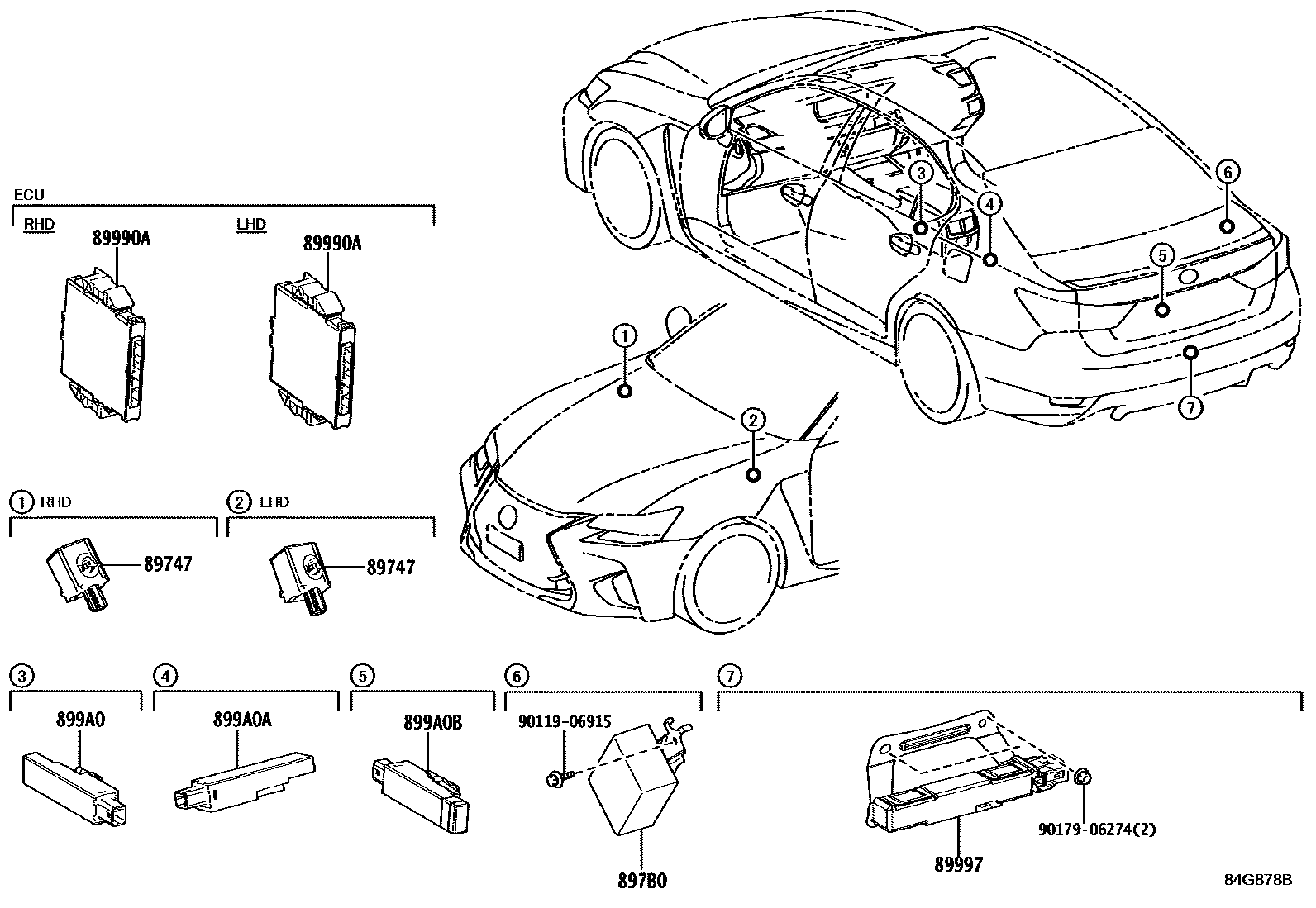

WIRELESS DOOR LOCK

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iURL10201510-201804

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-30440iURL10201510-201804

main897B0-30450iURL10..LHD201510-201804

ISRAEL SPEC

89990ACOMPUTER ASSY, SMART KEY

main89990-30590iURL10201510-201709

sub89990-30591

main89990-30610supersedes 89990-30591iURL10201510-201804

DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS)

89997ANTENNA, ELECTRICAL KEY

main89997-30080iURL10201510-201804

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iURL10201510-201804

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A1-60010iURL10201510-201804

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-30030iURL10201510-201608

main899A0-60010iURL10201609-201804

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
