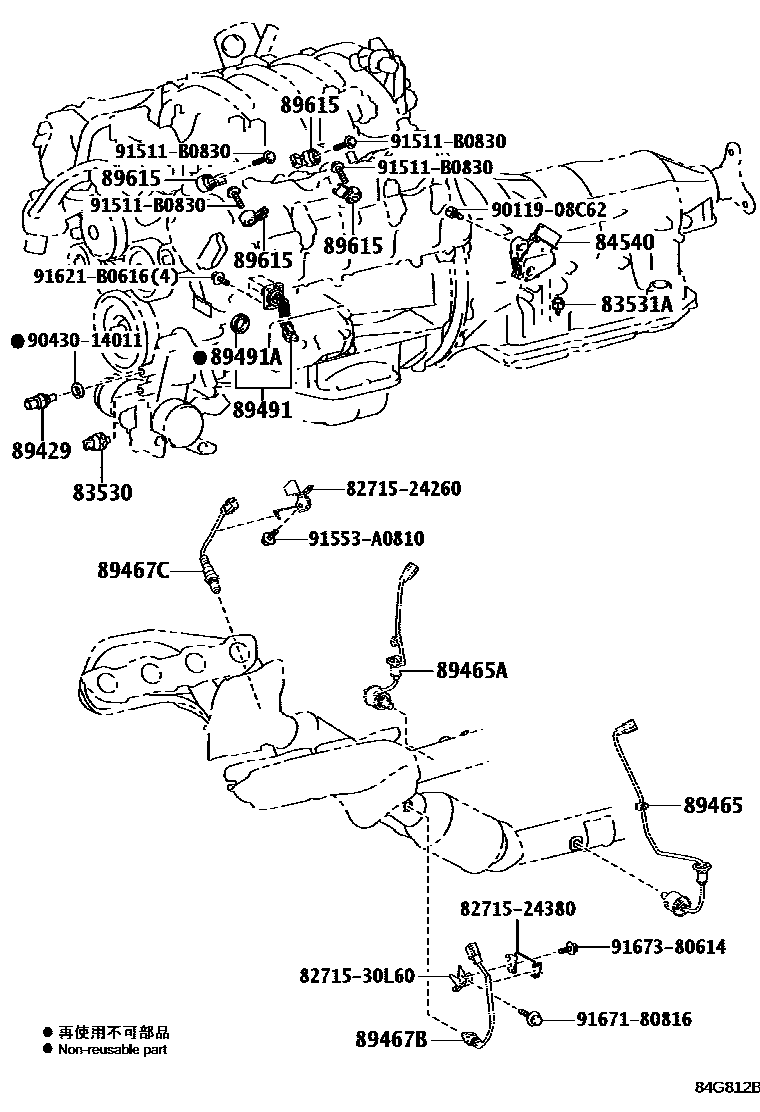

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 2/2 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 1/2 0009 1INSTRUMENT PANEL 2/2 0010 1INSTRUMENT PANEL 1/2 0011 1INSTRUMENT PANEL 2/2 0012 1STEERING 0013 1SEAT 0014 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iURL10201510-201804

83531ASWITCH, OIL PRESSURE

main83531-50010iURL10201510-201804

84540SWITCH ASSY, NEUTRAL START

main84540-71010iURL10201510-201804

89429SENSOR, OIL TEMPERATURE

main89429-53010iURL10201510-201804

89465SENSOR, OXYGEN

main89465-53290iURL10201510-201804

89465ASENSOR, OXYGEN NO.2

main89465-53300iURL10201510-201804

89467BSENSOR, AIR FUEL RATIO

main89467-24010iURL10201510-201804

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-24020iURL10201510-201804

89491SENSOR, ENGINE OIL LEVEL

main89491-24020iURL10201510-201804

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iURL10201510-201804

89615SENSOR, KNOCK CONTROL

main89615-20090×4iURL10201510-201804

8271524260BRACKET,WIRING HARNESS CLAMP

main82715-24260

8271524380BRACKET,WIRING HARNESS CLAMP

main82715-24380

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

9011908C62

main90119-08C62

9043014011

main90430-14011

91511B0830

main91511-B0830

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167180816

main91671-80816

9167380614

main91673-80614

21 parts on this diagram · 14 diagrams in section
