REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-30150iURL10201510-201804

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-30110iURL10201510-201804

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-50010×2iURL10201510-201804

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-30E20iURL10201510-201804

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-30D40iURL10201510-201804

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040×2iURL10201510-201804

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-30E20iURL10201510-201804

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-30D40iURL10201510-201804

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040×2iURL10201510-201804

81580DLAMP ASSY, REAR, RH

main81580-30620iURL10..LHD201510-201804

main81580-30630iURL10..RHD201510-201804

81584AGASKET, REAR LAMP RH

main81584-30560iURL10201510-201804

81590ALAMP ASSY, REAR, LH

main81590-30620iURL10..RHD201510-201804

main81590-30630iURL10..LHD201510-201804

81594AGASKET, REAR LAMP LH

main81594-30560iURL10201510-201804

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9017605018

main90176-05018

9017905102

main90179-05102

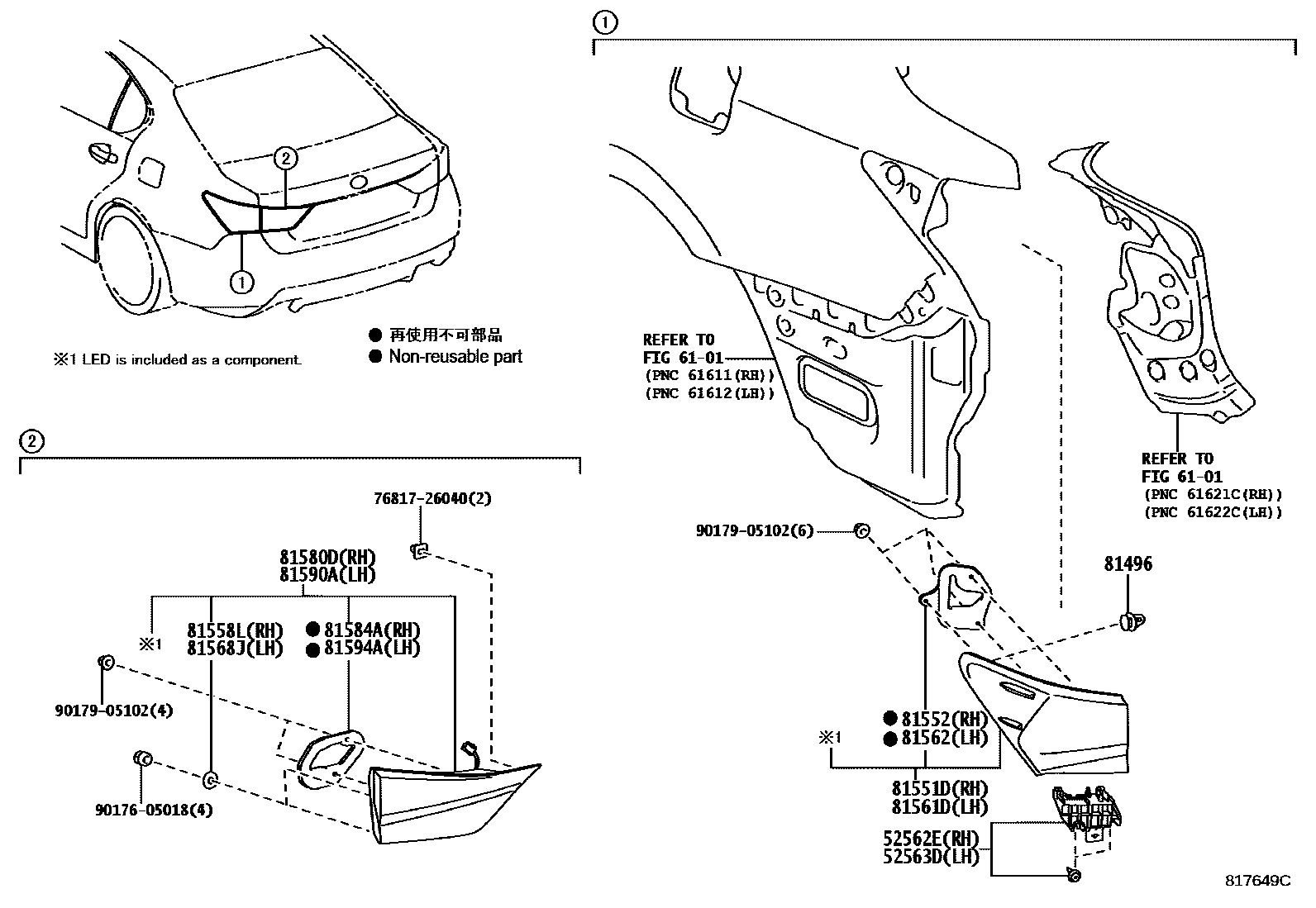

17 parts on this diagram · 1 diagram in section
