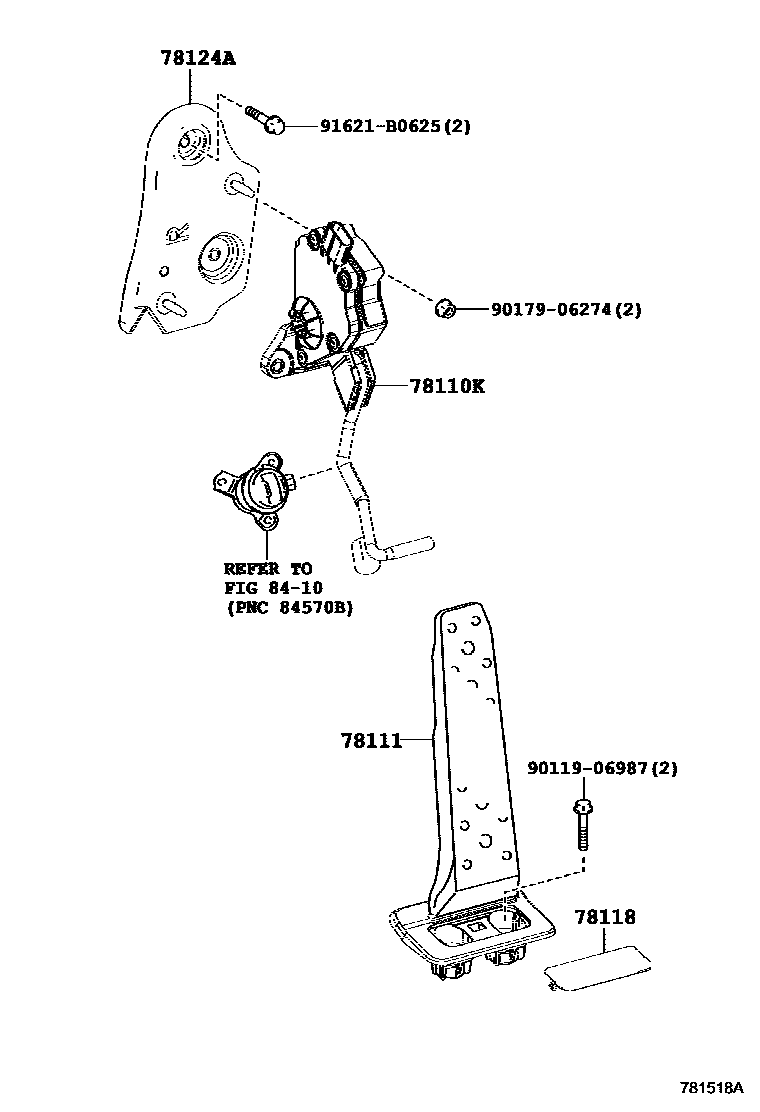

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30141iURL10..RHD201510-201601

main78110-30151iURL10..LHD201510-201601

main78110-30170iURL10..LHD201602-201804

main78110-30210iURL10..RHD201602-201804

78111PEDAL, ACCELERATOR

main78101-30061iURL10201510-201804

78118PAD, ACCELERATOR PEDAL

main78117-30030iURL10201510-201804

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-30131iURL10..RHD201510-201804

8410

9011906987

main90119-06987

9017906274

main90179-06274

91621B0625

main91621-B0625

8 parts on this diagram · 2 diagrams in section
