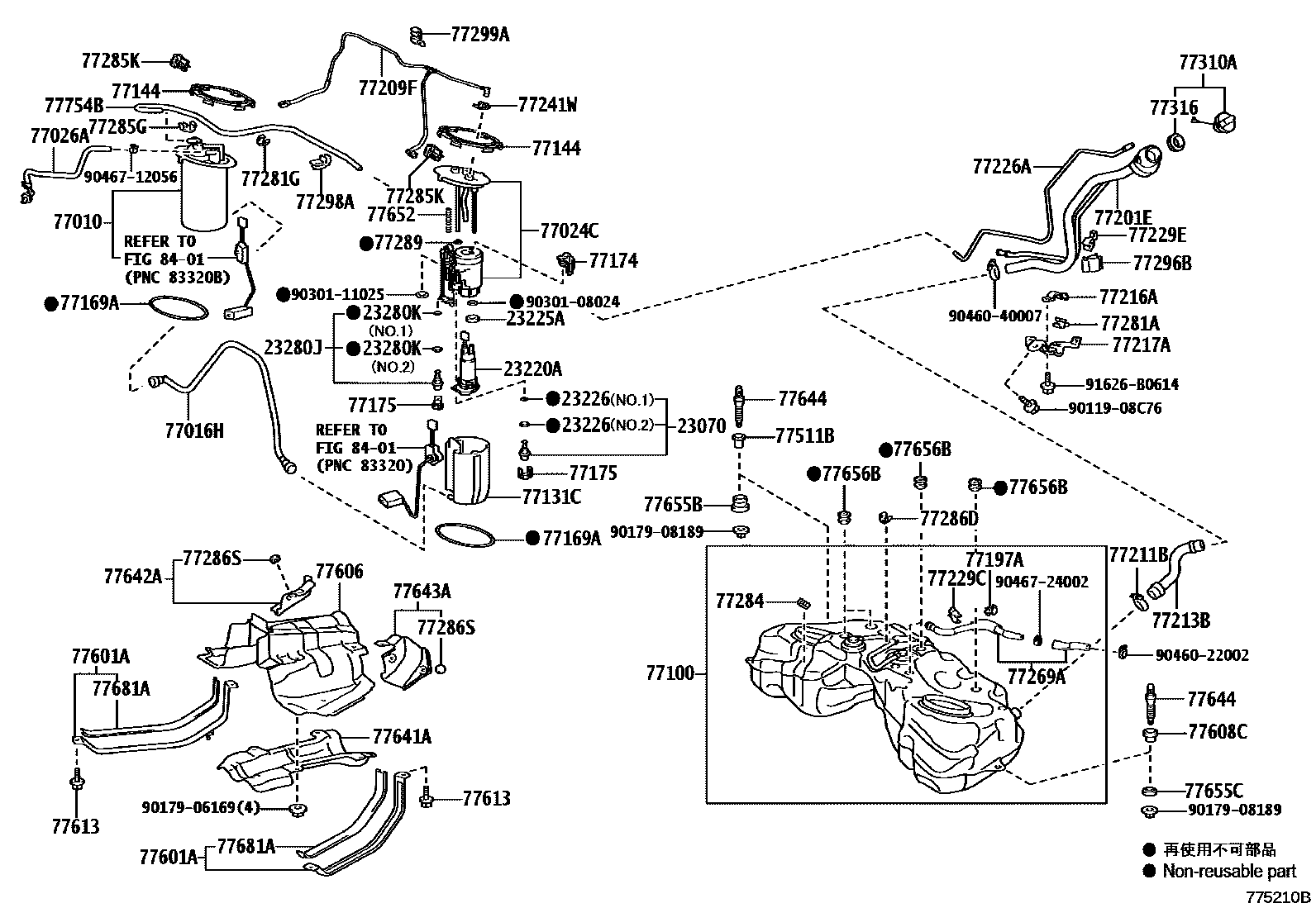

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77010TUBE ASSY, FUEL TANK VENT
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
77281ACLAMP, FUEL FILLER PIPE
77281GCLAMP, FUEL HOSE
77284CLAMP, FUEL TUBE
77285GCLAMP, FUEL TUBE, NO.1
77285KCLAMP, FUEL TUBE, NO.1
77286DCLAMP, FUEL TUBE, NO.2
77286SCUSHION, FUEL TANK PROTECTOR
77289HOLDER, FUEL TANK PIPE SETTING
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77298ACLAMP, FUEL TUBE, NO.4
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77511BBRACKET, FUEL TANK
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77644BOLT, FUEL TANK
77652CUSHION, FUEL TANK, NO.1
77655BCUSHION, FUEL TANK
77655CCUSHION, FUEL TANK
77656BCUSHION, FUEL TANK, NO.6
77681ASEAT, FUEL TANK BAND
77754BHOSE, CHARCOAL CANISTER OUTLET
8401
9011908C76
9017906169
9017908189
9030108024
9030111025
9046022002
9046040007
9046712056
9046724002
91626B0614
67 parts on this diagram · 3 diagrams in section
