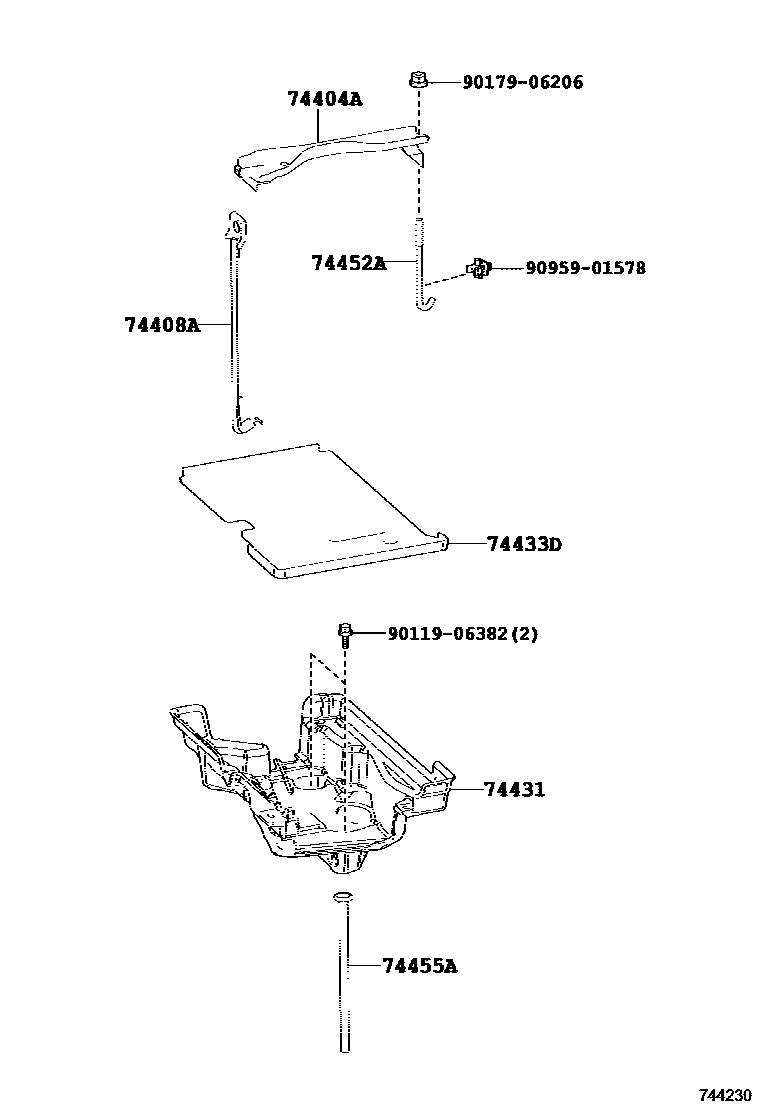

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-22370iURL10201510-201804

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-22031iURL10201510-201804

74431TRAY, BATTERY

main74431-30222iURL10..RHD201510-201804

main74431-30232iURL10..LHD201510-201804

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-22010iURL10..RHD201612-201804

main74433-30022iURL10..RHD201510-201611

main74433-30032iURL10..LHD201510-201804

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iURL10201510-201804

74455AHOSE, BATTERY DRAIN

main74455-30020iURL10201510-201804

9011906382

main90119-06382

9017906206

main90179-06206

9095901578

main90959-01578

9 parts on this diagram · 2 diagrams in section
