ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

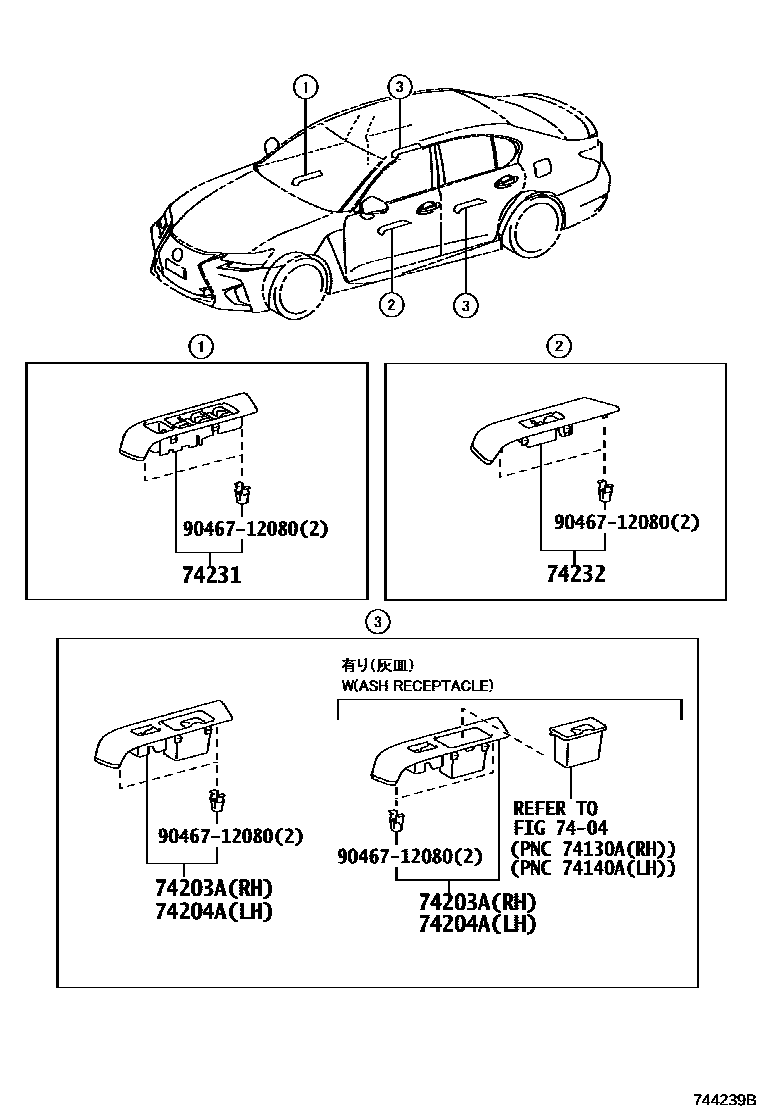

7404

74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH

main74203-30100supersedes 74270-30180iURL10201510-201804

ASH TRAY-WITH(REAR DOOR TRIM)

74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH

main74204-30100supersedes 74280-30120iURL10201510-201804

ASH TRAY-WITH(REAR DOOR TRIM)

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-30350iURL10..RHD201510-201804

main74231-30360iURL10..LHD201510-201804

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-30270iURL10..RHD201510-201804

main74232-30280iURL10..LHD201510-201804

9046712080

main90467-12080

6 parts on this diagram · 3 diagrams in section
