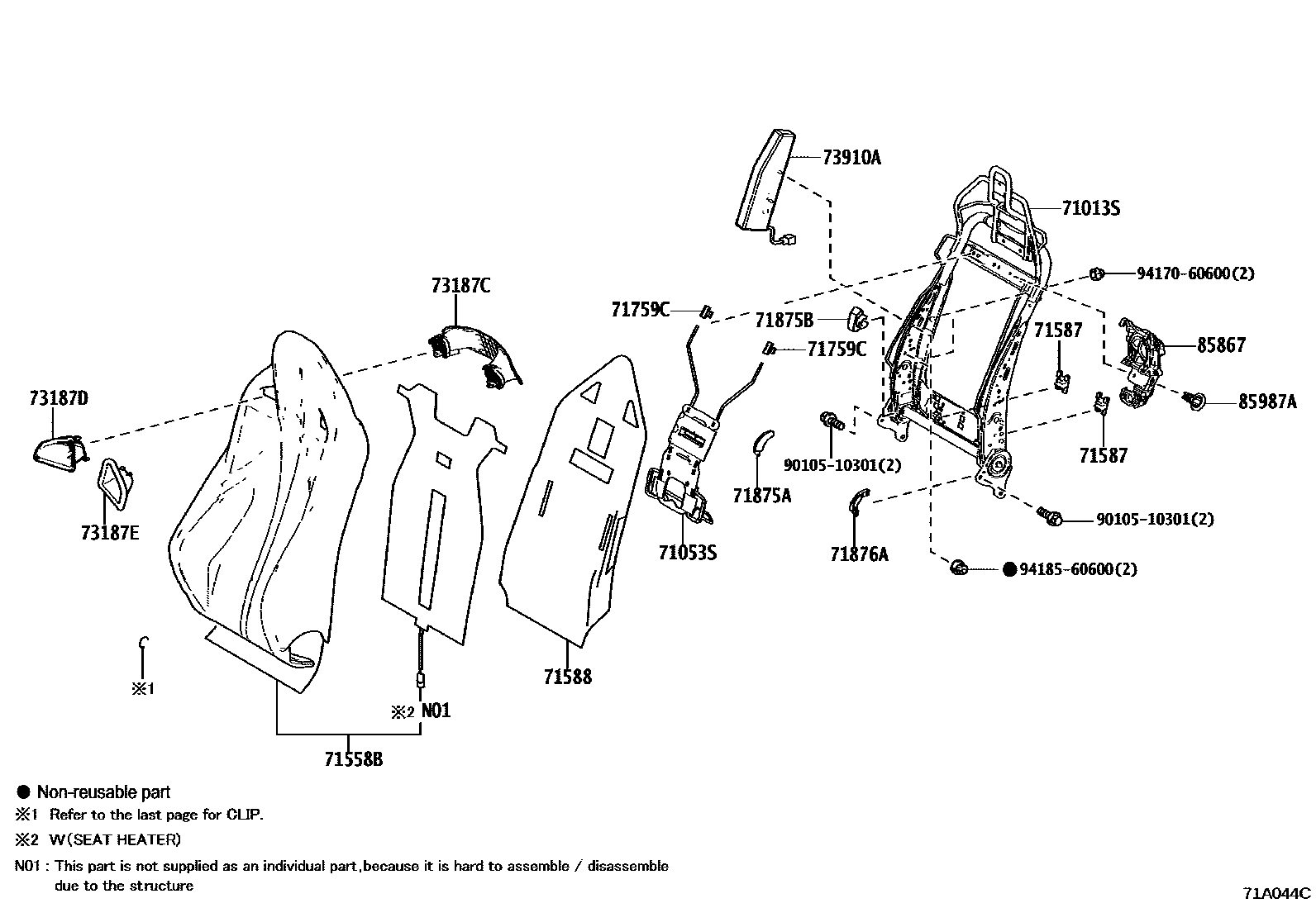

FRONT SEAT & SEAT TRACK

0001 1RH SEAT(SEAT BACK) 0002 1RH SEAT(SEAT CUSHION) 0003 1LH SEAT(SEAT BACK) 0004 1LH SEAT(SEAT CUSHION) 0005 1LH SEAT(SEAT BACK) 0006 1LH SEAT(SEAT CUSHION) 0007 1RH SEAT(SEAT BACK) 0008 1RH SEAT(SEAT CUSHION) 0009 1SEAT COVER EDGE WIRE & CLIP

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-30B80iURL10¥47,800201510-201804

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-76010iURL10..LHD¥1,860201510-201804

71558BPAD, FRONT SEATBACK W/COVER, RH

main71401-30010-C0iURL10201510-201804

BLACK/BLUE,TRIM2#

sub71401-30010¥126,000

sub71401-30011¥126,000

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52030iURL10¥160201510-201804

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71587-30060iURL10¥710201510-201804

71759CHOOK, FRONT SEATBACK, NO.1

main71759-47011iURL10¥110201510-201804

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60210-C0iURL10201510-201804

BLACK,TRIM1#,2#,3#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-30200iURL10¥360201510-201804

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-30200iURL10¥360201510-201804

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-60210-C0iURL10201510-201804

BLACK,TRIM1#,2#,3#

73187CGUIDE, FRONT SEAT SHOULDER BELT, RH NO.1

main73187-24080-B0iURL10201510-201804

SILVER,TRIM1#,2#,3#

73187DGUIDE, FRONT SEAT SHOULDER BELT, RH NO.2

main73187-30020-B0iURL10201510-201804

SILVER,TRIM1#,2#,3#

73187EGUIDE, FRONT SEAT SHOULDER BELT, RH NO.3

main73187-30030-B0iURL10201510-201804

SILVER,TRIM1#,2#,3#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-30150iURL10¥26,600201510-201804

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-53020

main85867-53030

85987ACLIP

9010510301

main90105-10301¥110

9417060600

main94170-60600¥60

9418560600

main94185-60600¥70

19 parts on this diagram · 9 diagrams in section
