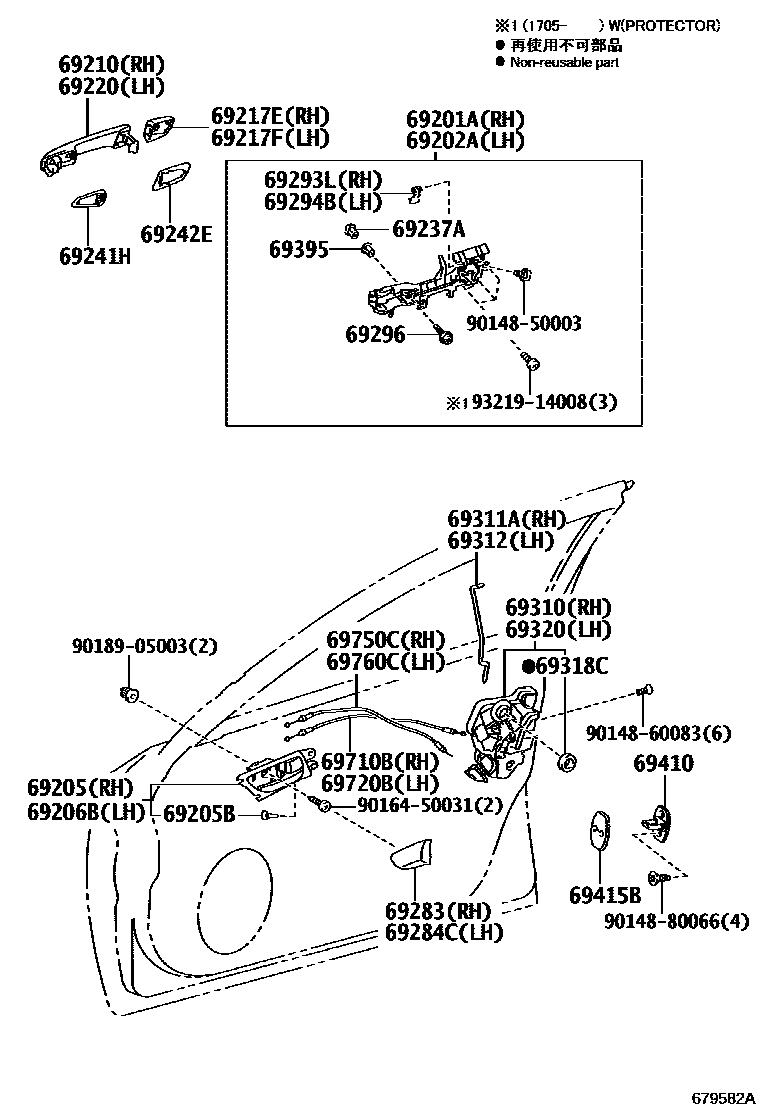

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
DOOR OUTSIDE HANDLE-BODY COLOR(4DOOR SMART)
DOOR OUTSIDE HANDLE-BODY COLOR(4DOOR SMART)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
DOOR OUTSIDE HANDLE-BODY COLOR(W/SMART)+KEY CYLINDER PROTECT
DOOR OUTSIDE HANDLE-BODY COLOR(W/SMART)+KEY CYLINDER PROTECT
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),WHITE NOVA GF.,083
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),MERCURY GRAY MC.,1H9
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),DK.GRAY MC.,1G0
DOOR OUTSIDE HANDLE-BODY COLOR(L/SMART)+KEY CYLINDER PROTECT,SONIC TITANIUM,1J7
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),SONIC SILVER,1J2
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),GRAPHITE BLACK GF.,223
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),RED MC.CS.,3R1
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),LAVA ORANGE CS.,4W7
DOOR OUTSIDE HANDLE-BODY COLOR(L/SMART)+KEY CYLINDER PROTECT,HEAT BLUE CONTRAST LAYERI,8X1
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
HEAT BLUE CONTRAST LAYERI,8X1
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
HEAT BLUE CONTRAST LAYERI,8X1
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
HEAT BLUE CONTRAST LAYERI,8X1
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
HEAT BLUE CONTRAST LAYERI,8X1
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),WHITE NOVA GF.,083
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),MERCURY GRAY MC.,1H9
DOOR OUTSIDE HANDLE-BODY COLOR(L/SMART)+KEY CYLINDER PROTECT,DK.GRAY MC.,1G0
DOOR OUTSIDE HANDLE-BODY COLOR(L/SMART)+KEY CYLINDER PROTECT,SONIC TITANIUM,1J7
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),SONIC SILVER,1J2
DOOR OUTSIDE HANDLE-BODY COLOR(L/SMART)+KEY CYLINDER PROTECT,GRAPHITE BLACK GF.,223
DOOR OUTSIDE HANDLE-BODY COLOR(L/SMART)+KEY CYLINDER PROTECT,RED MC.CS.,3R1
DOOR OUTSIDE HANDLE-BODY COLOR (SMARTLESS),LAVA ORANGE CS.,4W7
DOOR OUTSIDE HANDLE-BODY COLOR(L/SMART)+KEY CYLINDER PROTECT,HEAT BLUE CONTRAST LAYERI,8X1
69237ANUT, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#,2#,3#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,2#,3#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
9321914008
main93219-14008
35 parts on this diagram · 1 diagram in section
