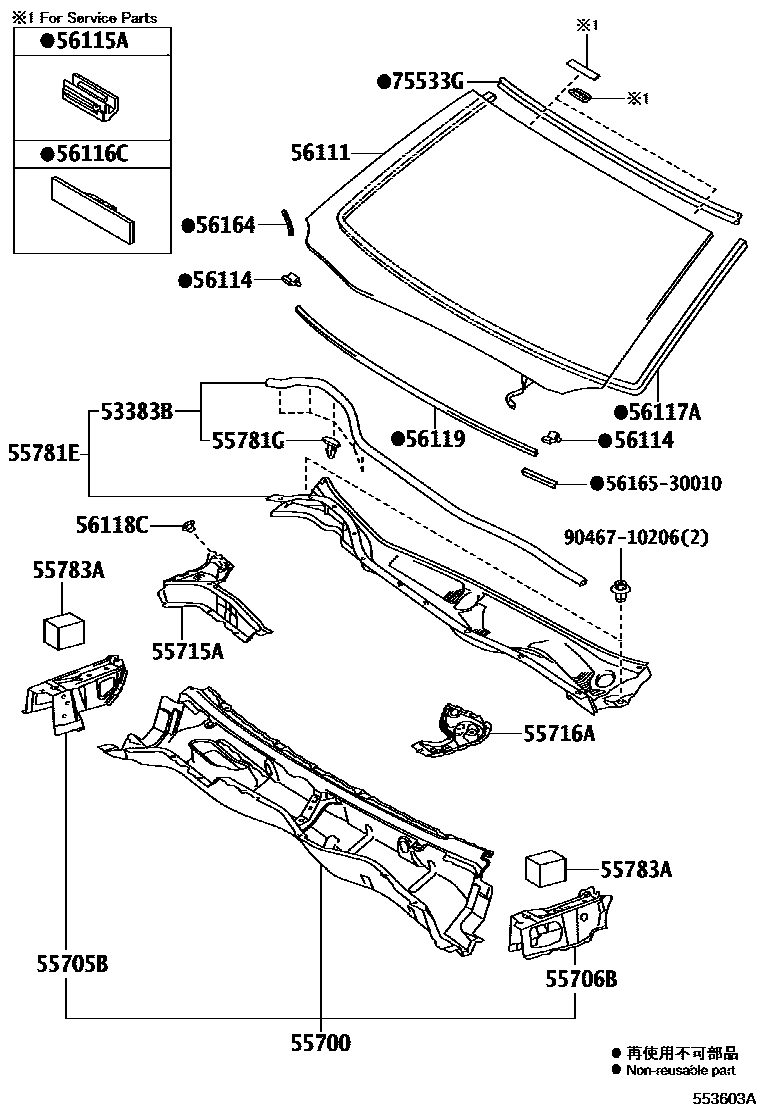

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-30250i201510-201804

main53383-30280i201510-201804

55700PANEL ASSY, FRONT

main55700-30A61i201510-201804

main55700-30A70i201510-201804

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-30100i201510-201804

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-30100i201510-201804

55715ABRACE, COWL TOP TO APRON, RH

main55715-30150i201510-201804

main55715-30160i201510-201804

55716ABRACE, COWL TOP TO APRON, LH

main55716-30170i201510-201804

main55716-30180i201510-201804

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30201i201510-201804

main55708-30191supersedes 55708-30181i201510-201804

COLD AREA SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×5i201510-201804

55783APAD, COWL TOP SILENCER

main55783-30110×2i201510-201804

56111GLASS, WINDSHIELD

main56101-3A925supersedes 56101-3A922i201510-201804

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-3A929supersedes 56101-3A922i201510-201703

PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

sub56101-3A979

sub86466-30040

sub86466-33041

main56101-3A933supersedes 56101-3A930i201510-201804

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-3A935supersedes 56101-3A930i201510-201804

WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-3A937supersedes 56101-3A930i201510-201703

PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

sub56101-3A982

sub86466-30040

sub86466-33041

main56101-3A939supersedes 56101-3A930i201510-201703

PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAINSENSOR)

sub56101-3A984

sub86466-30040

sub86466-33041

main56101-3A952supersedes 56101-3A922i201703-201804

PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-3A954supersedes 56101-3A930i201703-201804

PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-3A956supersedes 56101-3A930i201703-201804

PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAINSENSOR)

56114RETAINER, WINDSHIELD GLASS

main56114-50020

56115ASTOPPER, WINDSHIELD GLASS, NO.1

56116CSTOPPER, WINDSHIELD GLASS, NO.2

56117ADAM, WINDOW GLASS ADHESIVE

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30120i201510-201804

56119SEAL, WINDSHIELD GLASS

main56119-30020

56164COVER, FRONT WINDOW INNER MOULDING, RH

main56164-30010

75533GMOULDING, WINDSHIELD, OUTSIDE

5616530010COVER, FRONT WINDOW INNER MOULDING, LH

main56165-30010

9046710206

main90467-10206

20 parts on this diagram · 2 diagrams in section
