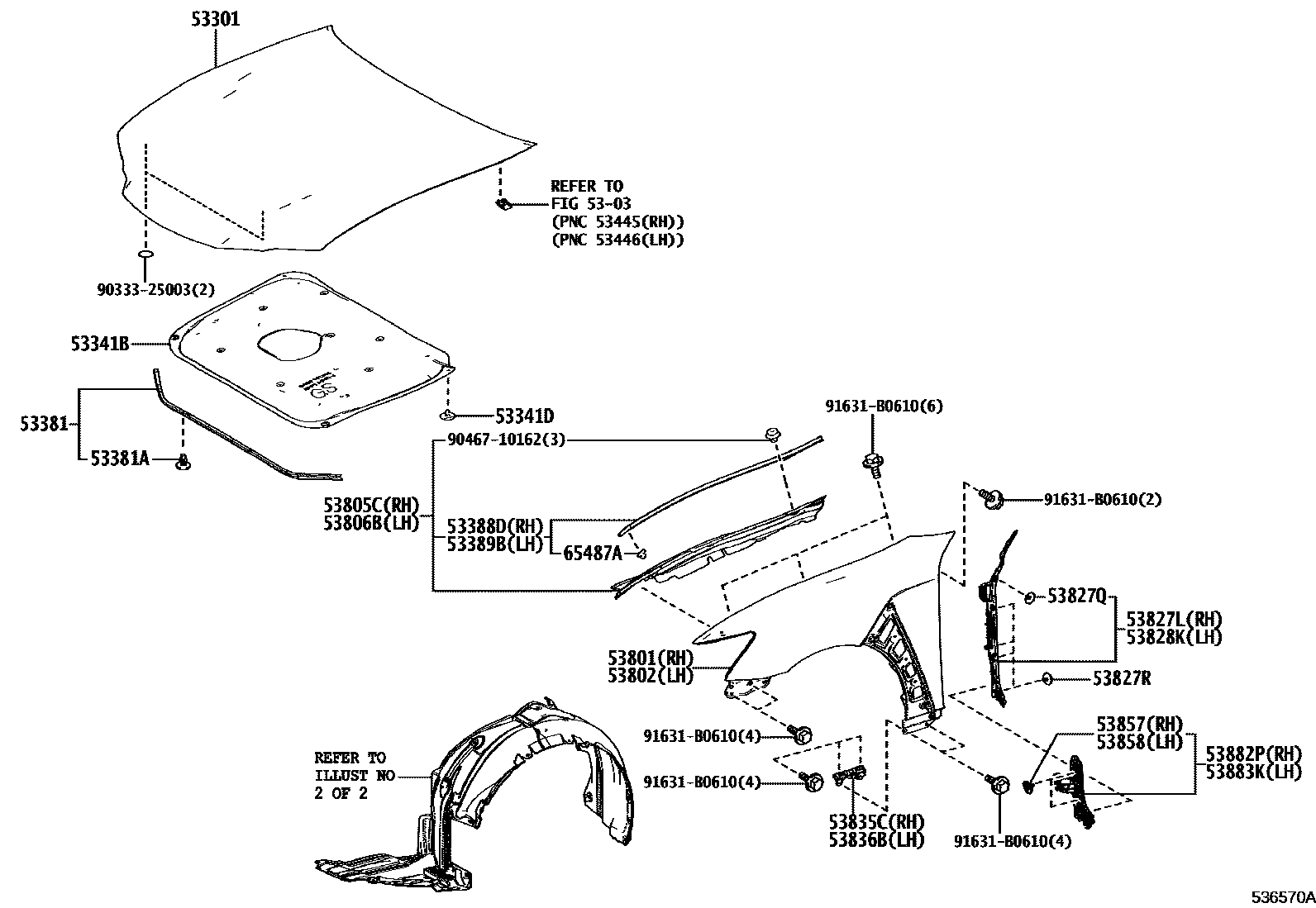

HOOD & FRONT FENDER

0001 1 0002 1

5303

53301HOOD SUB-ASSY

main53301-30491iURL10¥116,000201510-201804

53341BINSULATOR, HOOD

main53341-30310iURL10¥7,600201510-201804

53341DCLIP(FOR HOOD INSULATER)

main90467-09050iURL10¥120201510-201804

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30260iURL10¥2,510201510-201804

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iURL10¥100201510-201804

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-30090iURL10¥2,560201510-201804

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-30080iURL10¥2,560201510-201804

53801FENDER SUB-ASSY, FRONT RH

main53801-30A70iURL10¥59,300201510-201804

53802FENDER SUB-ASSY, FRONT LH

main53802-30A60iURL10¥59,300201510-201804

53805CSEAL SUB-ASSY, FRONT PILLAR TO FRONT SIDE, RH

main53805-30190iURL10¥4,110201510-201804

53806BSEAL SUB-ASSY, FRONT PILLAR TO FRONT SIDE, LH

main53806-30190iURL10¥4,110201510-201804

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30040iURL10¥3,240201510-201804

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iURL10201510-201710

BLACK

main90467-07223iURL10¥60201711-201804

53827RCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.2

main90467-06205-C0iURL10201510-201804

BLACK

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30050iURL10¥3,240201510-201804

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-30120iURL10¥700201510-201804

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-30070iURL10¥700201510-201804

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iURL10¥60201510-201804

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iURL10¥60201510-201804

53882PSEAL, FRONT FENDER, RH

main53882-30070iURL10¥1,600201510-201804

53883KSEAL, FRONT FENDER, LH

main53883-30040iURL10¥1,600201510-201804

65487ACLIP, CORNER PROTECTOR

main65487-60010iURL10¥80201510-201804

9033325003

main90333-25003¥70

9046710162

main90467-10162¥90

91631B0610

main91631-B0610¥110

26 parts on this diagram · 2 diagrams in section
