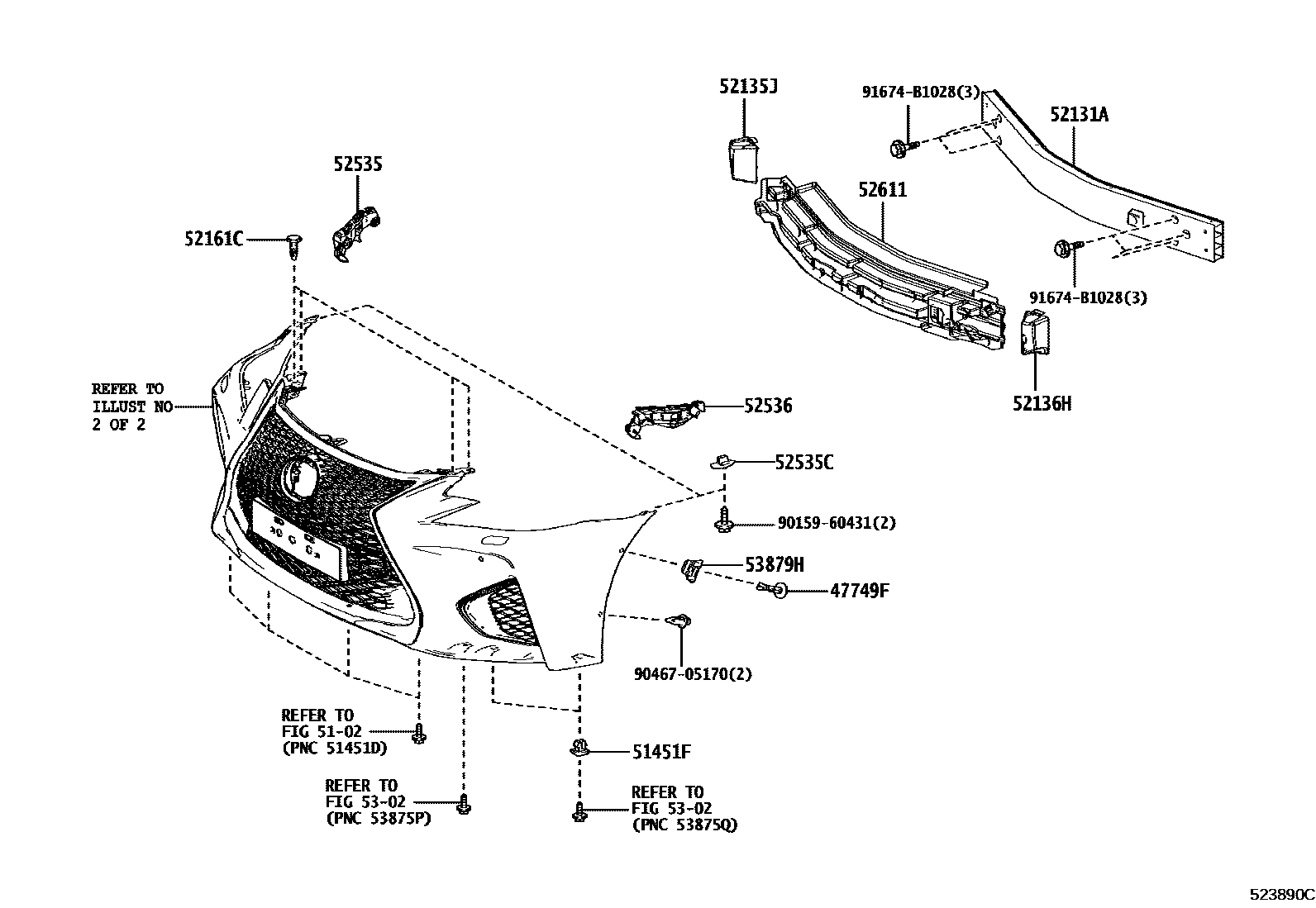

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-30030iURL10201611-201804

main47749-50090iURL10201510-201610

5102

51451FGROMMET, NO.1

main90189-06193iURL10201510-201804

52131AREINFORCEMENT, FRONT BUMPER

main52131-24100iURL10201510-201804

52135JREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, RH

main52135-24061iURL10201510-201804

52136HREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, LH

main52136-24051iURL10201510-201804

52161CPIECE, FRONT BUMPER

main52161-16010iURL10201510-201804

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30280iURL10201510-201804

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iURL10201510-201804

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30270iURL10201510-201804

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24110iURL10201510-201804

5302

53879HRETAINER, FRONT FENDER LINER

main53879-30050iURL10201510-201610

main53879-30060iURL10201611-201804

9015960431

main90159-60431

9046705170

main90467-05170

91674B1028

main91674-B1028

16 parts on this diagram · 2 diagrams in section
