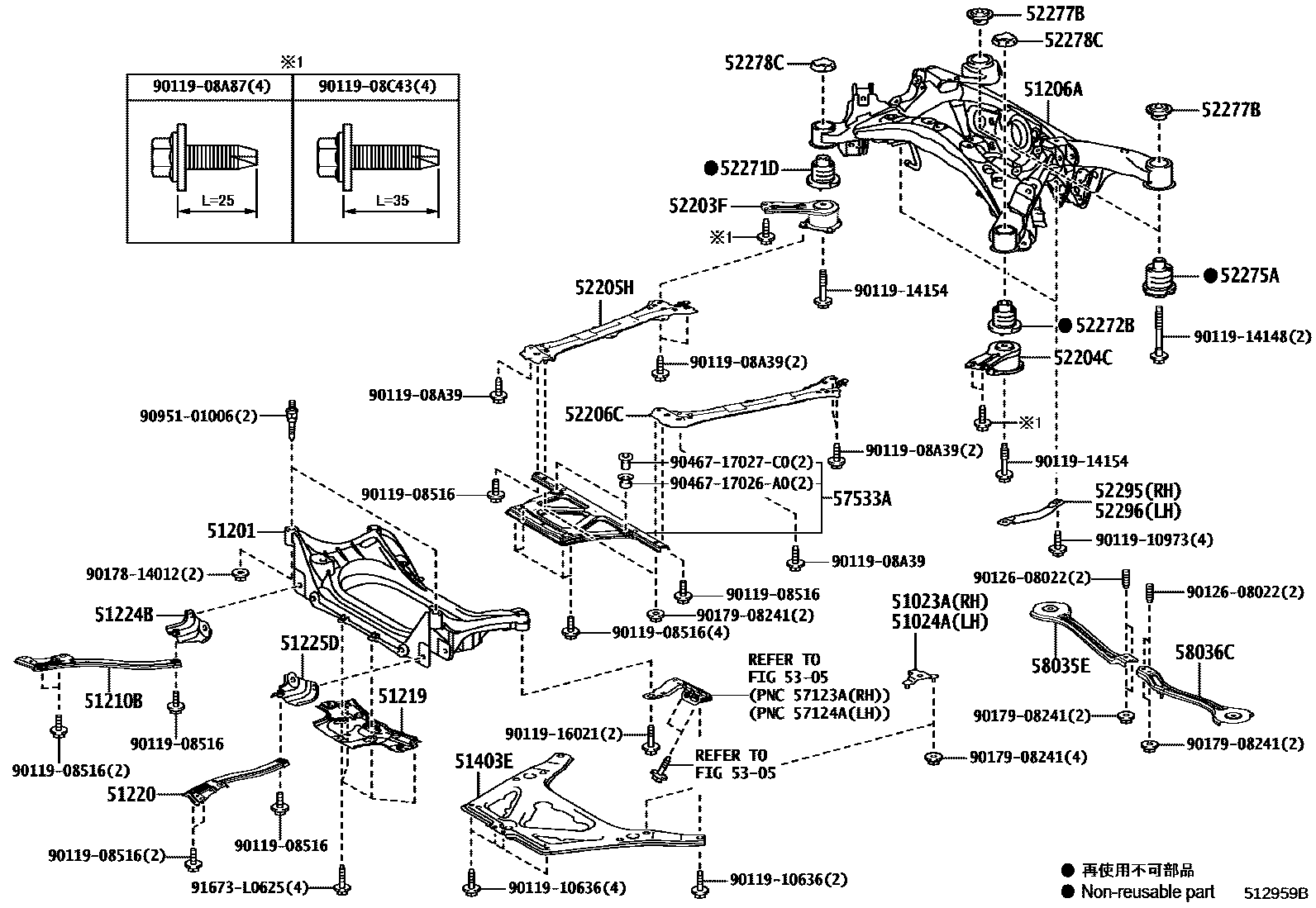

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main57105-24030iURL10¥820201510-201804

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main57105-24030iURL10¥820201510-201804

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30140iURL10¥41,700201510-201804

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30152iURL10¥69,700201510-201804

51210BCROSSMEMBER ASSY, FRAME, NO.1

main51210-24010iURL10¥3,230201510-201804

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-24020iURL10¥4,260201510-201804

51220CROSSMEMBER ASSY, FRAME, NO.2

main51220-24010iURL10¥3,230201510-201804

51224BPLATE, FRONT SUSPENSION MENBER BRACE, RH

main51224-30040iURL10¥1,610201510-201804

51225DPLATE, FRONT SUSPENSION MENBER BRACE, LH

main51225-30030iURL10¥1,610201510-201804

51403EBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-24020iURL10¥14,000201510-201711

sub51403-24021¥14,000

main51403-24021iURL10¥14,000201712-201804

sub51403-24022¥10,500

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-30080iURL10¥3,380201510-201804

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-30060iURL10¥3,380201510-201804

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

main52205-30260iURL10¥6,200201510-201804

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

main52206-30080iURL10¥6,200201510-201804

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-24070iURL10¥3,860201510-201804

52272BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LOWER

main52272-24010iURL10¥3,860201510-201804

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-24050iURL10¥4,480201510-201804

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-24010iURL10¥1,760201510-201804

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-24010iURL10¥840201510-201804

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30040iURL10¥1,800201510-201709

sub52295-30041¥1,350

main52295-30041iURL10¥1,350201710-201804

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-24020iURL10¥1,800201510-201709

sub52295-24021¥1,490

main52295-24021iURL10¥1,490201710-201804

5305

57533ABRACE, FRONT FLOOR, CENTER

main57533-30070iURL10¥7,000201510-201804

58035EBRACE SUB-ASSY, REAR FLOOR PANEL, RH

main58035-30040iURL10¥4,800201510-201804

58036CBRACE SUB-ASSY, REAR FLOOR PANEL, LH

main58035-30040iURL10¥4,800201510-201804

9011908516

main90119-08516¥120

9011908A39

main90119-08A39¥80

9011908A87

main90119-08A87¥100

9011908C43

main90119-08C43¥100

9011910636

main90119-10636¥130

9011910973

main90119-10973¥100

9011914148

main90119-14148¥490

9011914154

main90119-14154¥360

9011916021

main90119-16021¥540

9012608022

main90126-08022¥460

9017814012

main90178-14012¥210

9017908241

main90179-08241¥80

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

9095101006

main90951-01006¥310

91673L0625

main91673-L0625¥80

41 parts on this diagram · 2 diagrams in section
