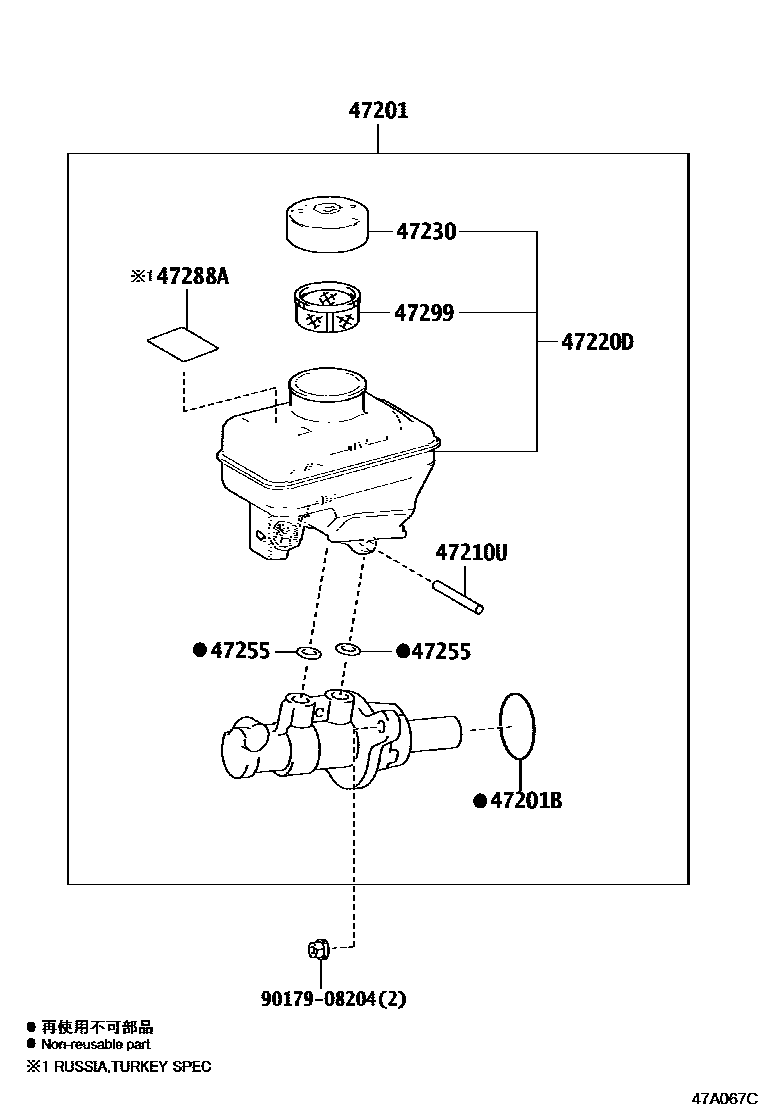

BRAKE MASTER CYLINDER

0001 1 0002 1

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-24171iURL10..RHD201510-201709

main47201-24181iURL10..LHD201510-201709

main47201-30890iURL10..RHD201709-201804

main47201-30A00iURL10..LHD201709-201804

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iURL10201510-201804

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iURL10201510-201804

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-24030iURL10201510-201804

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33072iURL10201510-201804

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iURL10201510-201804

47288ALABEL, BRAKE FLUID NOTICE

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iURL10201510-201804

9017908204

main90179-08204

9 parts on this diagram · 2 diagrams in section
