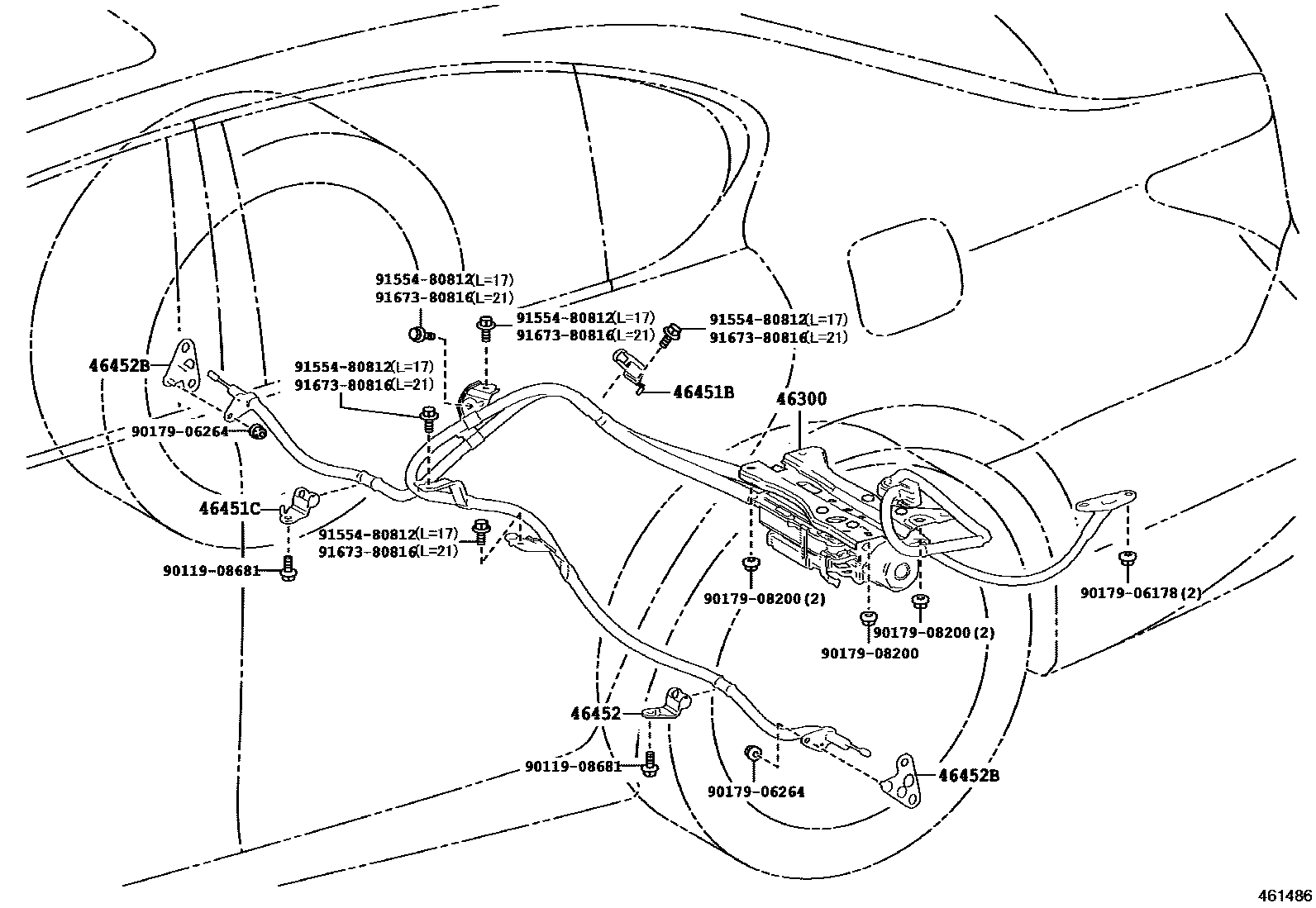

PARKING BRAKE & CABLE

0001 1 0002 1

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-30040iURL10201510-201804

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-30240iURL10201510-201804

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-24010iURL10201510-201804

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-24020iURL10201510-201804

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-24030iURL10201510-201804

9011908681

main90119-08681

9017906178

main90179-06178

9017906264

main90179-06264

9017908200

main90179-08200

9155480812

main91554-80812

9167380816

main91673-80816

11 parts on this diagram · 2 diagrams in section
