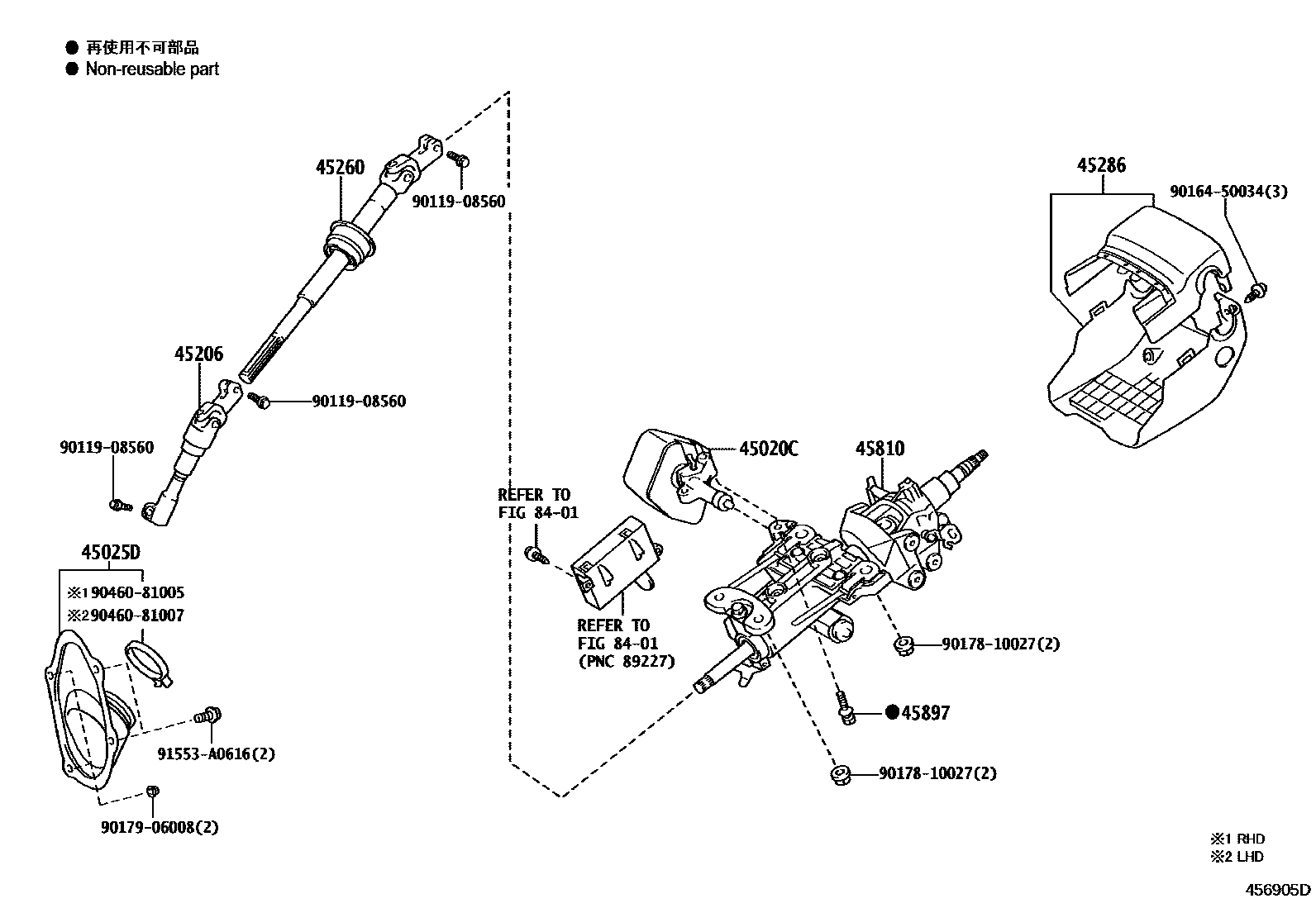

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A90iURL10201510-201804

main45020-30B00iURL10..RHD201510-201804

UNITED KINGDOM SPEC

main45020-30B00iURL10..RHD201510-201804

NORWAY,SWEDEN,FINLAND SPEC

main45020-30B00iURL10..RHD201510-201804

BALTIC SPEC

main45020-30B00iURL10..RHD201510-201804

RUSSIA SPEC

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iURL10..RHD201510-201804

main45025-30390iURL10..LHD201510-201804

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-24010iURL10..RHD201510-201804

main45206-30200iURL10..LHD201510-201804

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30220iURL10201510-201804

45286COVER, STEERING COLUMN

main45286-3A919-C0iURL10201510-201804

BLACK,TRIM1#,2#,3#

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30230iURL10201510-201804

45897BOLT, STEERING LOCK SET

main45897-12020iURL10201510-201804

8401

9011908560

main90119-08560

9016450034

main90164-50034

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

9046081007

main90460-81007

91553A0616

main91553-A0616

15 parts on this diagram · 1 diagram in section
