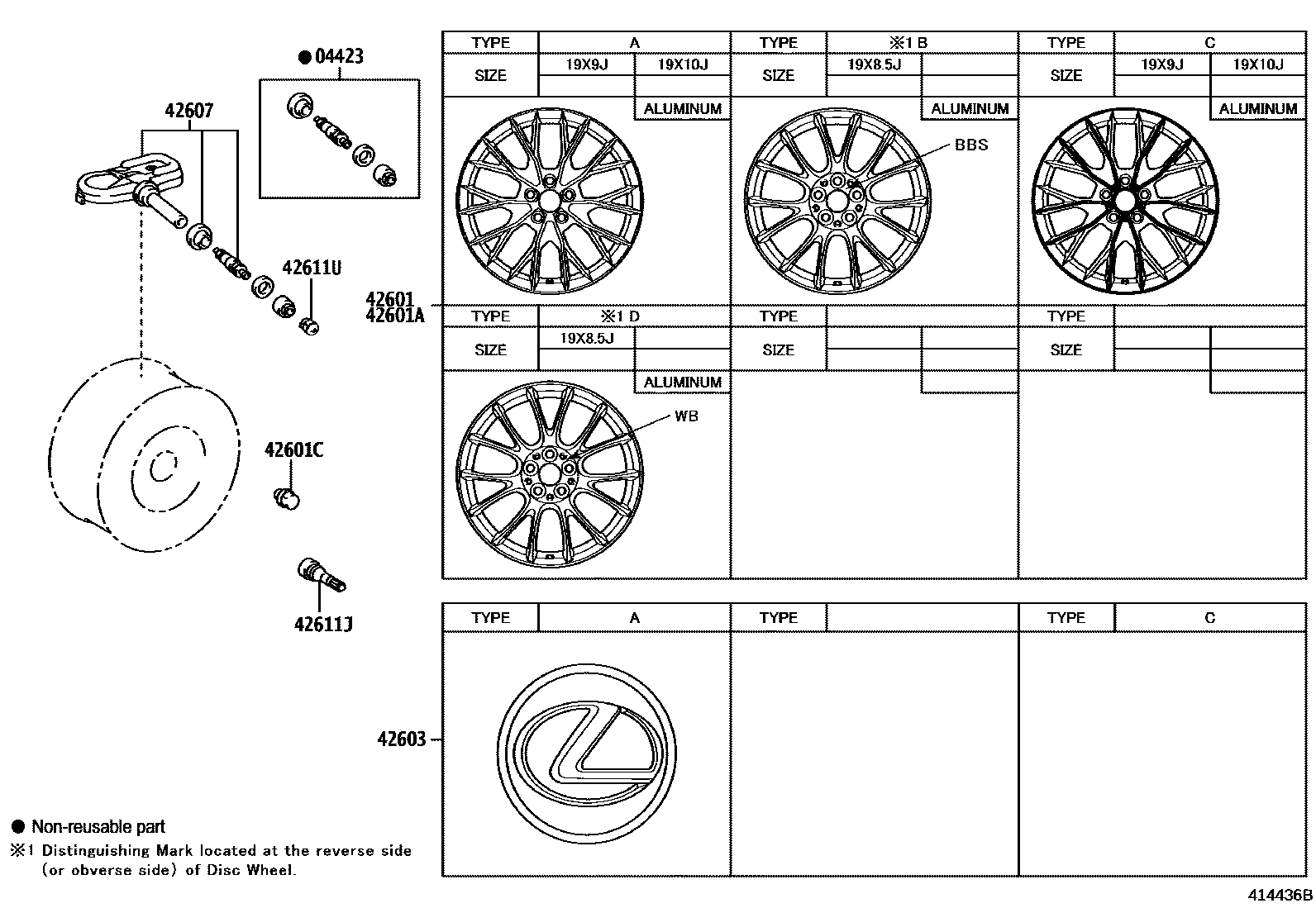

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iURL10201510-201804

42601WHEEL, DISC

main4261A-30220iURL10201510-201804

19X9J, #,FR,T/P A:SEE ILLUST

sub4261A-30221

main4261A-30470iURL10201510-201804

19X10J,RR,T/P A:SEE ILLUST

sub4261A-30471

42601AWHEEL, DISC (FOR SPARE)

42601CNUT, HUB (FOR AXLE)

main90942-01033iURL10201510-201804

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53110iURL10201510-201804

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30071iURL10201510-201804

42611JVALVE (FOR TUBELESS TIRE SPARE)

42611UCAP, TIRE VALVE

main90942-05037iURL10201510-201804

8 parts on this diagram · 1 diagram in section
